PHENIX Silicon Endcap

1

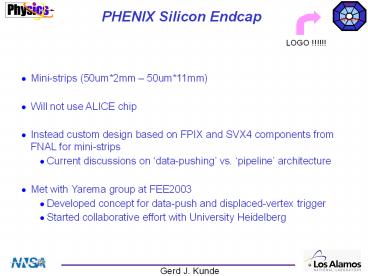

PHENIX Silicon Endcap
LOGO !!!!!!

• Mini-strips (50um2mm 50um11mm)
• Will not use ALICE chip
• Instead custom design based on FPIX and SVX4
  components from FNAL for mini-strips
• Current discussions on data-pushing vs.
  pipeline architecture
• Met with Yarema group at FEE2003
• Developed concept for data-push and
  displaced-vertex trigger
• Started collaborative effort with University
  Heidelberg

2
Si Lampshade Layout
Preliminary 6/03

• 50 mu radial pitch (z vertex reconstruction)
• 3000 mini-strips
• 3.5 cm lt r lt 18.5 cm
• 128 towers in phi
• mini-strips from
• 2.2 mm to 11.6 mm
• 2 rows of strips in one
• dual-tower
• 16 dual-towers in wedge
• 8 wedges in one lampshade
• 8 lampshades ( 20 degree tilt)

r 18.5 cm
3000
r 3.5 cm
1
3
FPIX2 Features

• Advanced mixed analog/digital design
• 128 rows x 22 columns (2816 channels)
• 50 µm x 400 µm pixels
• High speed readout intended for use in Level 1
  trigger. Up to 840 Mbits/sec data output.
• Very low noise
• Excellent threshold matching
• DC coupled input
• Fully programmable device

4
FPIX2 Status

• Produced 3168 chips in engineering run
• Minor tweaking of design needed before production
• Mixed analog/digital design has excellent
  performance with insignificant interference and
  cross talk.
• Chip size is 8.96 mm x 10.2 mm (91 mm2)
• Yield is high
• Chip and readout can be used as is in other
  pixel applications
• First flip-chip assemblies this week
• Could start comparative testing

5
Components for Phenix ChipPHX

• Use modified FPIX2 front end
• Use relaxed bump bonding connections
• Either data-push from FPIX or pipeline from SVX
• Use backside contact for ground return (as done
  in SVX4)
• Use slow programming control from FPIX2
• May use modified output drivers from FPIX2

6
Layout Diagram for PHX Chip
Bump bonds
Programming interface
1st and 2nd stage and discriminator
Pipeline
Digital interface
Complete bus on chip
7
PHX Chip Layout 2 columns 256
channels/column 3.8 mm x 13 mm 49.4 mm2 Bump
bonds on 200 um pitch 50 µm dia bumps 512 bumps
plus inter-chip bumps
FPIX2 Layout for comparison Chip area 91
mm2 Bump bonds on 50 µm pitch 12 µm dia
bumps 2816 bumps
8
PHX Tower Section
Ray Yarema, FNAL, June 9th


Carbon Fiber Support and Cooling
9
Wedge Assembly/ Data Interface
2.5 Gigabit fiber
Uni Heidelberg

• 16 wedges/lampshade
• receiver for data-push
• fiber optics to DAQ

One wedge
10
PHX Schedule
Ray Yarema, FNAL, June 9th

• Design specifications completed 10/03
• Start design 12/03
• Submit prototype 7/04
• Prototype testing completed 12/04
• Redesign completed for engineering run 1/05
• Engineering run back 3/05

11
PHX Cost
Ray Yarema, FNAL, June 9th

• Chip design/testing 2 man-years - 275K
  (includes all overhead costs)
• Prototype chip fabrication- 40K (small chip)
• Test board 5K
• Engineering run (10-12 wafers) 200K
• 9 Extra wafers using same masks - 45K
• Production wafer level testing engineering, tech
  time, circuit board, probe card - 60K
• Contingency tbd

20 wafers total
12
Trigger on displaced b-vertices ctau 500 mu

• Started new collaboration with V.Lindenstruth
  from University Heidelberg
• UH designed a displaced vertex trigger for LHCb
• UH designed a tracklet processor for ALICE
• Has chip to provide LVDS to fiber interface 2.5
  Gbit/s
• Trigger would require
• Data-push technology
• Barrel and Endcap with same readout technology
• Trigger tracking software from LHCb project

13
Endcap Summary

• Mini-strips on wedges
• Readout via PHX from Fermilab
• Same chips for barrel ?!
• FPIX for layer 1,2 (two pixel layers !!!)
• Displaced vertex tracking with 10 occupancy
  gives too many ghosts, see layout of all LHC
  trackers
• PHX for layer 3,4 (mini-strips)
• Trigger on displaced vertices ??? !!!!!!!!
• We should start collaboration wide discussion on
  triggers in the upgrade era
