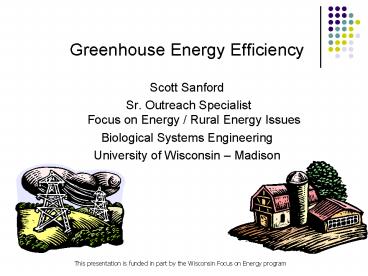

Greenhouse Energy Efficiency

1

• Greenhouse Energy Efficiency
• Scott Sanford
• Sr. Outreach SpecialistFocus on Energy / Rural
  Energy Issues
• Biological Systems Engineering
• University of Wisconsin Madison

This presentation is funded in part by the
Wisconsin Focus on Energy program
2
Greenhouse Energy Use

• Energy
• 2nd largest cost behind labor
• 70-80 for space heating
• 10-15 Electricity
• The Economic-Energy Balance
• Light transmission for plant growth
• Environmental factors humidity, temperature
• Structure cost
• Operating costs

3
Principles of Heat Loss

• Conduction
• Heat conducted through a material
• Convection
• Heat exchange between a moving fluid (air) and a
  solid surface
• Radiation
• Heat transfer between two bodies without direct
  contact or transport medium Sunlight
• Infiltration
• Exchange of interior and exterior air through
  small holes in building shell

4
Greenhouse types
5
Structure Efficiency

• Gutter Connected
• Lower heat loss / less surface area
• Better space utilization
• 1.5 ratio heat loss area to floor area (25,000
  sq. ft.)
• Stand alone (quonset, gable, gothic)
• Isolated growing conditions
• Natural Ventilation with open / roll-up side
  walls
• Heat as filled
• 1.7-1.8 ratio - heat loss area to floor area
  (3000 sq. ft.)

6
Structural Efficiency

• Space heating comparison
• All Glazing Double poly IR
• 24,000 ft2 growing area
• Black fabric covered floor
• LP power vent unit heaters _at_ 78 seasonal
  efficiency
• Farm A Eight greenhouses 30 x 100 x 15H x
  3 side
• Energy use 1793 gallons LP per house (14,344
  gal. total)
• Farm B Gutter connected greenhouse
• 5 bay 30 (150) x 160 x 10H (15 peak)
• Energy use 11,929 gallons
• Energy savings 2415 gallons (18 savings)

7
Common Glazing Materials

• Glass
• Acrylic
• Polycarbonate
• Fiberglass-reinforced plastic
• Polyethylene film

8
Glazing Materials

• Heat loss
• Single pane glass
• Highest heat loss (1.1 Btu/sq. ft.-hr-F)
• Longest life (Unless large hail) 25 years
• Highest cost / Structure
• High light Transmittance
• Double Polyethylene Film
• Low heat loss ( 0.5 to 0.7 Btu/sq. ft.-hr-F)
• Shortest life 3-4 years (UV degradation)
• Low cost
• Lowest Light Transmittance

9
Glazing Material Comparison
10
Infrared Radiation

• Plants, soil greenhouse
• - absorb solar or short radiation
• Reradiate heat out - long wave radiation
• Glass and rigid plastic
• - inhibit loss of IR radiation (lt 4 loss)
• Polyethylene film
• - IR loss gt 50
• Polyethylene film with IR additives
• - reduce heat losses by 20
• - without loss of light transmission

11
Infrared Radiation pathways
12
Polyethylene film w/ IR additive

• Reduces heat loss by 15-20
• Incremental Cost 0.015 / sq. ft.
• Payback 2-3 months / one season
• Diffuses light
• AT Plastics Dura-Film 4 Thermal AC
• Dura-Film 4 Thermal AC Plus
• Tyco Plastics Tufflite Infrared
• Klerks K50 IRAC
• Green-Tek Sunsaver
• Ginegar Plastics Sun Selector AD-IR / Suntherm
• www.agra-tech.com/thermal_glazings.htm

13
Glazing Materials vs Infiltration

• Infiltration Rates
• Louvers, doors, holes, laps in glazing
• Glass high (2x compared with double poly)
• Double Poly lowest
• Air Exchanges
• New Construction Per Hour
• Glass, fiberglass, polycarbonate, acrylic 0.75 to
  1.5
• Double-layer plastic film 0.5 to 1.0
• Old Construction
• Glass, good condition 1.0 to 2.0
• Glass, poor condition 2.0 to 4.0

14
Infiltration Factors

• Glazing types
• Wind
• Still air versus 15 mph wind can double heat loss
• High infiltration reduces CO2 enrichment
  effectiveness
• Wind breaks
• Cut heat loss by 5 to 10
• Reduces risk of wind damage to structures
• Acts as snow fence

15
Infiltration leaks

• Save 3-10 in heating costs
• Check Roof and wall vents - seal tight
• Tight Cover
• Glazing / lap seals on Glass
• Fix holes in cover
• Weather stripping around doors
• Door Sills
• Ventilation louvers close tight
• Dry Lubricant - use graphite
• Cover unneeded fans / vents during winter
• Foam and plastic
• Plug gaps around foundation
• Double/Single polyethylene over glass 40
  savings

16
Factors effecting Light

• Light growth
• Greenhouse orientation
• Single span East/West maximize winter sunlight
• Multi span North/South gutter shadows move
• Glazing Transmittance
• Differences between materials
• Dust
• Anti-Dust additive
• Condensation can reduce light 25-50
• Anti-Condensate / Anti drip additive

17
GE Lexan ZigZag

• Heat loss 20-40 less than single glass
• Light transmittance
• Glass 89-92 ZigZag 89 direct / 81 diffuse
• 4-6 more light to plants in winter faster
  growth
• Orientation
• East/West gutters - 2 light gain
• North/South gutters 4 light gain
• Less Support profiles than glass 2 light gain
• www.gestructuredproducts.com/sp1/LexanZigZag/LEX_E
  ng_Products_ZigZag2.html

18
Greenhouse - Heat Loss

• Insulate walls to plant height
• North walls insulate all opaque surfaces
• and more?
• Perimeter 24 below ground 1 to 2 Foam
• New construction

19
Night-time Heat Loss

• Night Curtains
• 80 of greenhouse heating at night
• Reduces night heating up to 50
• Double poly w/ internal thermal blanket
• 0.4 Btu/hr-F-ft2
• Curtain must be sealed to prevent chimney effect
• Double as summer shade system
• Automated curtains expensive for seasonal grower
• Manual open curtains? - Lower cost

20
Thermal / Shade Curtains
21
Types of Curtain Systems

• Gutter to Gutter
• Truss to Truss
• Flat
• At bottom of truss
• Reduces night time volume to be heated
• Slope - Flat Slope
• Follows roof profile part way
• Installed without moving equipment
• Slope Slope
• Minimizes cold air trapped above curtain

22
Thermal / Shade Materials

• Porous curtains
• Allows condensate and rain leakage to drain
• Lower heat retention than nonporous materials
• Semi-porous materials (preferred)
• Allows moisture to migrate
• High heat retention
• Non-porous material
• Highest heat retention
• Impervious to water and air movement - can fail
  if water collects on top of curtain
• Shade in summer / heat retention
• Higher shading factor Higher heat retention

23
Curtain Materials Semi porous Aluminized and
clear polyethylene woven fabric
100
75
65
55
15
24
Shading Material Comparison
25
Which shade to Choose?

• Heat of summer maximum sunlight (June, July)
• 10,000 footcandles
• Most bedding and flowering plants can tolerate
  4000 to 5000 footcandles of light
• Greenhouse glazing light transmission
• Glass 90
• Double Poly 80
• 10,000 fc x 80 x 55 LT 4400 footcandles
• 45 shading recommended (52 energy savings)

26
Other Material parameters

• Flammability
• Roll up or folding
• Shading
• Day length control (blackout)
• Heat retention

27
Curtain Installation Issues

• Plants hanging from rafters
• Irrigation hanging from rafters
• LOTS of Things hanging from rafters
• Heating pipes
• Poly tubes
• Heaters
• Gable or roof vents or open roof systems
• Fully drawn curtain will restrict summer air flow

28
Greenhouse unit heats

• Low cost
• Low installation costs
• Easily staged
• Reliable
• Location / heat distribution system affects
  heating costs

29
Unit heater Seasonal Efficiency

• TE Cost
• Gravity Vent heaters 80 858
• Power Vent Heaters 80 943
• Separated Combustion 82 1845
• TE Thermal Efficiency Combustion and heat
  transfer efficiency.
• Reference Gas-Fired Unit Heaters A guide to
  greenhouse heating strategies, Calalog
  10-115,Modine Mfg., September 1996.

30
Unit heater Seasonal Efficiency

• TE SE
• Gravity Vent heaters 80 65
• Power Vent Heaters 80 78
• Separated Combustion 82 80
• TE Thermal Efficiency Combustion and heat
  transfer efficiency.
• SE Seasonal Efficiency Includes TE plus heat
  loss out exhaust vents when heater is idle.
• Reference Gas-Fired Unit Heaters A guide to
  greenhouse heating strategies, Calalog
  10-115,Modine Mfg., September 1996.

31
Unit heater Cost per kBtu output

• 250,000 Btu input, 80 Thermal Efficiency
• Type SE Cost
  /kBtu out
• Gravity Vent 65 858 5.28
• Power Vent 78 943 4.84
• S Combustion 80 1845 9.23
• Heater cost / (Btu input x SE) x 1000

32
Unit Heater cost justification Gravity Vent or
Power Vent?

• Greenhouse 30 x 96 located in Madison, WI
• Two 250,000 Btu Output LP Unit heaters
• Incremental cost for PV heaters - 85 /ea
• All other costs assumed the same
• Growing season Feb 1 to June/July
• Estimated Fuel consumption
• Gravity vent 2179 gallons
• Power vent 1816 gallons

33
Unit Heater cost justification Gravity Vent or
Power Vent?

• Total Incremental heaters - 170
• Assumed LP Cost - 1.00 / gallon
• Fuel cost difference - 363 / season
• Simple payback 170 / 363 0.47 season
• Since this is based on the greenhouse being used
  5 or 6 months, the incremental cost is paid back
  in 3 months.

34
Non-vented unit heaters

• Fuel savings 20

35
Non-vented unit heaters

• MUST be used with fresh air intakes
• Oxygen depletion in tight greenhouses poor
  combustion
• 1 in2 air intake area per 1000 to 2000 Btu/hr of
  furnace capacity
• 2 to 3 diameter opening for a 250,000 Btu/hr
  heater
• Increases CO2 levels
• Good for plants
• Could be used in place of a CO2 generator
• Increases H2O levels
• Can increase / cause disease problems
• Increased condensation lower light levels
• Only recommend using NG or LP gas
• Combustion byproducts from oil / kerosene harmful
  to some plants (tomatoes)
• Ethylene, Sulfur Dioxide, Nitrous Oxide, CO

36
Heating Maintenance

• Heat Equip. Maintenance
• Insulation of pipes and ducts in head-house
• Clean Air heat Exchanges
• Lubricate motors fans
• Remove Soot can reduce fuel consumption by 10
• Steam trap maintenance
• Burner tune up
• Change fuel filter
• Correct nozzle
• Thermostat Calibrate annually
• Up to 20 fuel savings
• Provide air intakes for Boilers and unit heaters
• Smell of combustion gases indicated lack of large
  enough air intakes

37
Greenhouses - Heating

• 2 Heating system efficiency increase
• in 30 foot by 100 foot greenhouse
• Saves 200 gallons of Fuel oil
• or 330 gallons of Propane
• or 285 Therms of Natural Gas
• per year

38
Greenhouses - Heating

• Heating System Distribution
• In-Floor heating w/ Floor growing system
• Concrete floor not needed
• Bench heating
• Lower heating costs 20-25
• Study - 7 increased yields for tomatoes
• Forced Air Under-bench distribution
• Poly tubes under bench
• Approximately equivalent to a 5F reduction in
  greenhouse temperature.

39
Central Heating Systems

• High Efficiency Heating equipment 90
• Hot water systems - Munchkin Boiler 92 AFUE
• Radiant heating

40
Environmental Controls

• Central Unit to control
• Heaters
• Fans
• Louvers / Vents
• Irrigation
• Lighting
• CO2
• Computer control ensures systems are not
  competing
• Example - Heater on while fan is running
• Computer tied to on site weather data
• Anticipates heating and ventilation needs

41
Alternative Energy Sources

• Utilize Waste heat cogeneration
• Landfill gas
• Dane Co Landfill - 2 MW of waste heat
• Manure Digesters
• Power plant reject heat
• Wind Turbines
• Geo-Thermal

42
Space Utilization

• Racking Systems
• Take advantage of different plant light and
  temperature requirements
• Bench Layout
• Longitudinal 59
• Peninsula 69
• Movable 81

43
Bench LayoutSpace Utilization
44
Greenhouses - Ventilation

• Energy-Efficient Fans
• Efficiency ranges from 12 to 27 CFM/watt
• Test data available at
• BESS Lab - http//www.bess.uiuc.edu/index2.htm
• Air Movement Control Association www.amca.org
• http//cart.amca.org/publications/product.asp?PN2
  62/ND
• 36 or 48 fans efficiency greater than 20 CFM
  / watt _at_ 0.1 H2O
• Fan Maintenance
• Shutter lubrication (dry lubricant graphite) /
  maintenance
• Belt tension / alignment Automatic tighteners
• Trim weeds shrubs
• Bearing lubrication

45
Greenhouses - Ventilation

• Shade Cloth
• Aluminized shades 10ºF lower air temperatures
• Internal Shade cloth can double as thermal
  curtain
• Evaporative cooling
• Misting
• Roll-up side walls
• Open Roof Designs

46
Supplemental lighting

• Shorten / predictable time to market
• Plant later Less heating
• Earlier Flowering
• T-8 Fluorescent lamps Growing Chambers
• HID lamps Greenhouse
• High Pressure Sodium most energy efficient
• Pulse Start Metal Halide more blue light
• Incandescent lamps inefficient, low output /
  lamp
• Lamp Controls
• Timer
• Light integral controller

47
Supplemental Lighting

• Response and effect varies greatly
• Short-day plant
• Day-neutral plant
• Long day plant
• Plug and Liners more root development
• Greenhouse Veg. High daily light integral (DLI)
  requirements.
• Cut Flowers supplemental lighting common
• Use Off-Peak electric?
• Lighting Up Profits, Paul Fisher Erik Runkle,
  2004.
• www.pllight.com/horticultural/publications.php

48
Greenhouse Tools / Resources

• Greenhouse audit tool
• AgEnergy Resource web site
• http//energy.uwex.edu
• Energy Conservation for Commercial Greenhouses,
  NRAES-3, Ithaca, NY, 2001.
• Greenhouse Engineering, NRAES-33, Ithaca, NY,
  1994.
• www.nraes.org
• National Greenhouse Manufacturers Association
• www.ngma.com

49
Wisconsin Focus on Energy

• Public / Private partnership - goal to conserve
  energy
• Focus is on electricity and natural gas / propane

• Services are available to 85 of homes
  businesses in WI
• Promotes Energy conservation Renewable energy
• Program areas
• Residential
• Business
• Industry
• Funded by 16/yr fee per electric meter

50
Wisconsin Focus on Energy Agricultural
Program

• Free Energy Audits
• Information collected via farm visit or by phone
  / mail
• Standardized model used to estimate energy
  savings
• GRANTS available to encourage installation of
  high
• efficiency equipment
• Consultants are independent dont sell
  equipment
• Must be serviced by a participating utility to
  receive
• grants
• Provide educational materials

51
Focus on Energy

• www.focusonenergy.com
• 1-800-762-7077
• 1-608-273-0182 direct line to Ag program
• Renewable Energy program
• (wind, bio-gas, solar)
• 1-888-476-9534
• Larry Krom

52
Contact Information

• Scott Sanford
• Sr. Outreach SpecialistFocus on Energy / Rural
  Energy Issues
• Biological Systems Engineering
• University of Wisconsin Madison
• 608-262-5062
• sasanford_at_wisc.edu
• www.focusonenergy.com 1-800-762-7077
