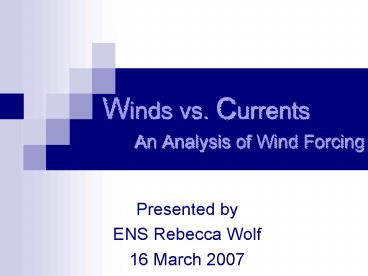

Winds vs' Currents An Analysis of Wind Forcing

1
Winds vs. Currents An Analysis of Wind
Forcing

• Presented by
• ENS Rebecca Wolf
• 16 March 2007

2
Project Objective

• -Real time analysis of wind forcing on current
  circulation

3
Presentation Guidelines

• Experiment
• Background
• Analysis
• Conclusion

4
Experiment

• Adaptive Sampling and Prediction System
• 2 ADCP moorings
• Aug 2006

ADCP 1 (56m)
ADCP 2 (92m)
meters
5
Hardware
http//www.mbari.org/aosn/MontereyBay2003/Images/a
osn_assets/m1_close_400.jpg
www.rdinstruments.com/datasheets/wh_sentinel.pdf
MBARI M2
Workhorse Sentinel ADCP in mooring
Underwater ADCP
6
Wind Forcing

• Wind forcing in terms of upwelling and relaxation
  events appears to be responsible for coastal
  circulation within the Monterey Bay.

7
Upwelling Events

• 2-D Process
• The first dimension is the winds.
• Equatorward winds blow warm surface water
  offshore
• Colder bottom water starts to rise to the surface
  near the coast ? relocates the warmer surface
  water offshore.
• The second dimension is the winds effects on the
  circulation.
• Cross shelf temperature and density gradients at
  surface/ sloped upwards to the coast

8
Relaxation Events

• A relaxation event is defined as a phenomenon
  when there is no significant wind.
• During typical relaxation events described in
  previous studies warm water remains farther off
  shore and does not provide significant surface
  heating.
• In the northern California shelf region
  relaxation events occur most frequently
  throughout the spring-summer upwelling season.

9
What is causing the action?
is it the wind?
Poleward flow
10
Visual Analysis

• How to interpret the following plots
• Winds
• Relaxation events are positive
• Upwelling events are negative
• ADCP (current flow)
• Poleward current flow is positive
• Equatorward current flow is negative
• Relaxation events ?poleward current
• Upwelling events?equatorward current

11
Indications of strong equatorward and poleward
flow.
Poleward flow
12
R
R
R
Strong flows _at_ depth
13
Observations

• 4 day Relaxation period
• Poleward flow (north )? Evident with no wind
• Stronger correlations in beginning than end of
  time series

14
Do the numbers work?
Correlation Values
Autospectra
Coherence Phase
15
Cross Correlation Values for Winds and ADCP
data
Short Time Series (1 month) ? Small DOF? High
Significance Level?Less Correlation
-No evident correlation -As expected evidence of
Ekman turning (50m)
Better analysis look at spectra
16
Spectra Analysis

• Autospectra / Coherence Phase
• Detrend method? Linear detrend
• 5 Overlapping pieces ?1/3 total points
• Hourly Sample Interval
• Confidence Interval of 95

17
ADCP 2
18
Observations

• During rotation energy was forced into the along
  shelf component
• Across Shelf is smaller by order of magnitude
  (104 vs 103)
• Low pass energy points up in Along Shore/down in
  Across Shore?more low freq energy in along shelf
• Dirunal and semi diurnal tidal peaks
• Along shelf/Near bottom currents?distinct
  inertial peaks
• Wind generated peak primary freq _at_which wind
  pumps energy into ocean 20hrs

19
Wind Spectra
Sea breeze
-More energy in along shelf ? result of
rotation -Diurnal sea breeze peak present
20
ADCP 2
2 coherent points
consistent phase coherence
21

• Across Shelf
• No coherence
• Period to small need 5-10 days for sufficient
  current spin up from wind
• Positive phase indicates wind leads current
• Along Shelf
• Coherence observed at all three depths
• 5-10 day period with expected lag times
• Current follows the wind
• Similar phase angles and lag times

22
No coherence
23
One more consideration Along Shelf Wind
Across Shelf Current

• No coherence in ADCP 1
• Along Shelf
• Coherence observed surface and near bottom
  currents
• No coherence in mid depth due to Eckman dynamics

Current
45º
Wind
24
Conclusions

• Correlations do not show concrete local wind
  forcing
• Coherence found in along shelf components not
  across shelf components
• Currents appear to be forced by non local events
  (eddies, meanders, along shore pressure gradient)

25
Future Research/
Military Applications

• Data comparison with model outputs
• Regional Ocean Modeling System
• Harvard Ocean Prediction System
• Navy Coastal Ocean Model
• Decipher the differences in model accuracy and
  prediction.
• Accurate current prediction by ocean models will
  benefit amphibious operations, special warfare
  operations, and mine warfare in the littoral zone.

26
Resources

• MATLAB
• Dr. Steve Ramp
• Fred Bahr
• Korso, P.M., 1987 Structure of the coastal
  current field off northern California during thr
  coastal ocean dynamics experiment, Journal of
  Geophysical Research,92,1637-1654.
• Ramp, S.R. , J.D. Paduan, I. Shulman, J. Kindle,
  F.L. Bahr, and F. Chavez ,2005 Observations of
  upwelling and relaxation events in the northern
  Monterey Bay during August 2000, Journal of
  Geophysical Research, 111, C07013,
  doi10.1029/2004JC002538.
• Send, U., R.C. Beardsley, C.D. Winant, 1987
  Relaxation from upwelling in the coastal ocean
  dynamics experiments, Journal of Geophysical
  Research, 92,1683-1698.

27
Questions ?
