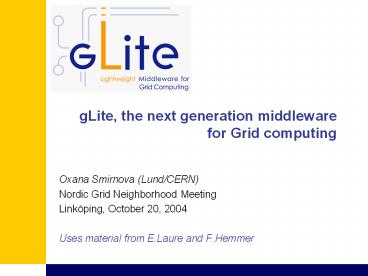

gLite, the next generation middleware for Grid computing

1
gLite, the next generation middleware for Grid
computing

• Oxana Smirnova (Lund/CERN)
• Nordic Grid Neighborhood Meeting
• Linköping, October 20, 2004
• Uses material from E.Laure and F.Hemmer

2
gLite

• What is gLite
• the next generation middleware for grid
  computing
• collaborative efforts of more than 80 people in
  10 different academic and industrial research
  centers
• Part of the EGEE project (http//www.eu-egee.org
  )
• bleeding-edge, best-of-breed framework for
  building grid applications tapping into the power
  of distributed computing and storage resources
  across the Internet

EGEE Activity Areas
(quoted from http//www.glite.org)
Nordic contributors HIP, PDC, UiB
3
Architecture guiding principles

• Lightweight services
• Easily and quickly deployable
• Use existing services where possible as basis for
  re-engineering
• Lightweight does not mean less services or non-
  intrusiveness it means modularity
• Interoperability
• Allow for multiple implementations
• Performance/Scalability Resilience/Fault
  Tolerance
• Large-scale deployment and continuous usage
• Portability
• Being built on Scientific Linux and Windows
• Co-existence with deployed infrastructure
• Reduce requirements on participating sites
• Flexible service deployment
• Multiple services running on the same physical
  machine (if possible)
• Co-existence with LCG-2 and OSG (US) are
  essential for the EGEE Grid service
• Service oriented approach

60 external dependencies

4
Service-oriented approach

• By adopting the Open Grid Services Architecture,
  with components that are
• Loosely coupled (messages)
• Accessible across network modular and
  self-contained clean modes of failure
• Can change implementation without changing
  interfaces
• Can be developed in anticipation of new use cases
• Follow WSRF standardization
• No mature WSRF implementations exist to-date so
  start with plain WS
• WSRF compliance is not an immediate goal, but the
  WSRF evolution is followed
• WS-I compliance is important

5
gLite vs LCG-2

• Intended to replace LCG-2
• Starts with existing components
• Aims to address LCG-2 shortcoming and advanced
  needs from applications (in particular feedback
  from DCs)
• Prototyping short development cycles for fast
  user feedback
• Initial web-services based prototypes being
  tested with representatives from the application
  groups

6
Approach

• Exploit experience and components from existing
  projects
• AliEn, VDT, EDG, LCG, and others
• Design team works out architecture and design
• Architecture https//edms.cern.ch/document/476451

• Design https//edms.cern.ch/document/487871/
• Feedback and guidance from EGEE PTF, EGEE NA4,
  LCG GAG, LCG Operations, LCG ARDA
• Components are initially deployed on a prototype
  infrastructure
• Small scale (CERN Univ. Wisconsin)
• Get user feedback on service semantics and
  interfaces
• After internal integration and testing components
  to be deployed on the pre-production service

7
Subsystems/components
LCG2 components gLite services
User Interface
AliEn
Computing Element Computing Element
Worker Node
Workload Management System Workload Management System
Package Management
Job Provenance
Logging and Bookkeeping Logging and Bookkeeping
Data Management Data Management
Information Monitoring Information Monitoring
Job Monitoring
Accounting
Site Proxy
Security Security
Fabric management
8
Workload Management System
9
Computing Element

• Works in push or pull mode
• Site policy enforcement
• Exploit new Globus GK and Condor-C (close
  interaction with Globus and Condor team)

CEA Computing Element Acceptance JC Job
Controller MON Monitoring LRMS Local Resource
Management System
10
Data Management

• Scheduled data transfers (like jobs)
• Reliable file transfer
• Site self-consistency
• SRM based storage

11
Storage Element Interfaces

• SRM interface
• Management and control
• SRM 1.1 (with possible evolution)
• Posix-like File I/O
• File Access
• Open, read, write
• Not real posix (like rfio)

Control
SRM interface
POSIXAPI File I/O
User
rfio
dcap
chirp
aio
dCache
NeST
Castor
Disk
12
Catalogs

• File Catalog
• Filesystem-like view on logical file names
• Keeps track of sites where data is stored
• Conflict resolution

• Replica Catalog
• Keeps information at a site
• (Metadata Catalog)
• Attributes of files on the logical level
• Boundary between generic middleware and
  application layer

Metadata Catalog
Metadata
File Catalog
LFN
GUID
Site ID
Site ID
13
Information and Monitoring

• R-GMA for
• Information system and system monitoring
• Application Monitoring
• No major changes in architecture
• But re-engineer and harden the system
• Co-existence and interoperability with other
  systems is a goal
• E.g. MonaLisa

e.g D0 application monitoring
MPP Memory Primary Producer DbSP Database
Secondary Producer
14
Security
CredentialStorage
myProxy
Obtain Grid (X.509)credentials for Joe
PseudonymityService (optional)
1.
Joe ? Zyx
2.
tbd
3.
AttributeAuthority
Issue Joesprivileges to Zyx
4.
Joe
VOMS
The Grid
UserZyx IssuerPseudo CA
GSI LCAS/LCMAPS
15
GAS Package Manager

• Grid Access Service (GAS)
• Discovers and manages services on behalf of the
  user
• File and metadata catalogs already integrated
• Package Manager
• Provides application software at execution site
• Based upon existing solutions
• Details being worked out together with
  experiments and operations

16
Current Prototype

• WMS
• AliEn TaskQueue, EDG WMS, EDG LB (CNAF)
• CE (CERN, Wisconsin)
• Globus Gatekeeper, Condor-C, PBS/LSF , Pull
  component (AliEn CE)
• WN
• 23 at CERN 1 at Wisconsin
• SE (CERN, Wisconsin)
• External SRM implementations (dCache, Castor),
  gLite-I/O
• Catalogs (CERN)
• AliEn FileCatalog, RLS (EDG), gLite Replica
  Catalog
• Data Scheduling (CERN)
• File Transfer Service (Stork)

• Data Transfer (CERN, Wisc)
• GridFTP
• Metadata Catalog (CERN)
• Simple interface defined
• Information Monitoring (CERN, Wisc)
• R-GMA
• Security
• VOMS (CERN), myProxy, gridmapfile and GSI
  security
• User Interface (CERN Wisc)
• AliEn shell, CLIs and APIs, GAS
• Package manager
• Prototype based on AliEn PM

17
Summary, plans

• Most Grid systems (including LCG2) are batch-job
  production oriented, gLite addresses distributed
  analysis
• Most likely will co-exist, at least for a while
• A prototype exists, new services are being added
• Dynamic accounts, gLite CEmon, Globus RLS, File
  Placement Service, Data Scheduler, fine-grained
  authorization, accounting
• A Pre-Production Testbed is being set up
• more sites, tested/stable services
• First release due end of March 2005
• Functionality freeze at Christmas
• Intense integration and testing period from
  January to March 2005
• 2nd release candidate November 2005
• May revised architecture doc, June revised
  design doc
