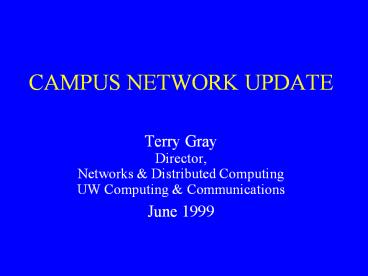

CAMPUS NETWORK UPDATE

• Terry Gray
• Director,
• Networks Distributed Computing
• UW Computing Communications
• June 1999

2
A Look Back

• Oct 1988 Ordered first Cisco campus router
• May 1989 Solve DECnet problem via TGV Multinet
  license
• Aug 1989 AutoIP deployed
• Jan 1990 Became NOC for NWNet (replacing BCS)
• Nov 1990 Began evaluating 10BaseT Ethernet
• Mar 1991 Began deploying 10BaseT Ethernet
• May 1992 Dual apex network topology deployed
• Jun 1992 Began transition to OSPF routing
• Sep 1992 Last host removed from original "flat"
  campus Ethernet
• Oct 1992 Began DialIP (PPP) project
• Jan 1993 Completed transition to OSPF routing
• Mar 1993 First MBONE deployment
• Jul 1993 Retired Micom switch
• Jun 1994 Completed NWNET transition to OSPF
• May 1995 Adopted quad backbone topology
• May 1995 First DHCP deployment
• Jun 1995 DialIP (PPP) service finally rolled-out

3
More...

• Feb 1996 First 100Mbps Ethernet deployment
• Apr 1996 SNNAP conceived
• Mar 1997 NWNet acquired by Verio
• Apr 1997 USNO Stratum-1 GPS timeserver deployed
• Jun 1997 First fiber between UW and Westin
  operational
• Jul 1997 SNNAP switches deployed
• Sep 1997 SNNAP "operational
• Dec 1997 AutoIP retired
• Jan 1998 Surveyor net monitor deployed for
  Advanced.org
• Jan 1999 AMP net monitor deployed for NLANR/MOA
• May 1998 First use of metropolitan Gigabit Enet
  (Westin - 4545)
• ??? 1998 First drop-in authenticated net
  connections
• Sep 1998 UW connects to vBNS backbone
• Sep 1998 UW connects to Abilene backbone
• Nov 1998 K20 Phase I complete (9 ESDs connected)
• Sep 1998 PNWGP "operational"
• Jan 1999 Verio connection to SNNAP operational
• Jan 1999 Retired last Cisco AGS campus router
• Apr 1999 Deployed first Gigabit Enet on campus

4
Mistakes We Didn't Make

• FDDI to the desk
• VLANs
• ATM
• Various "cut-thru IP switching" digressions
• Claim Staying with pure IP and Ethernet has
  served UW very well...

5
Future Milestones

• July 1999 UW ceases to be NOC for Verio/NWNet
• July 1999 4th commodity Internet DS3
• Aug 1999 K20 Phase II complete (296 districts)
• Sep 1999 First DWDM deployment
• Oct 1999 Survive Fall Internet 2 meeting
• Oct 1999 Campus-wide multicast support
• Fall 1999 V.90 modem pool upgrades
• Phase-out last Cisco AGS MAN/WAN routers
• Deploy separate experimental GE backbone
• Network hardening -especially in HS
• First host connected at GE
• First VoIP
• First HDTV over IP
• Dynamic DNS deployed
• First use of DiffServ/QoS
• First MPLS virtual circuit deployment
• 10b2 phase-out
• Web-based realtime performance monitoring
• Continuous MPEG2 stream available and usable on
  campus

6
More...

• Security projects
• VPN pilot
• Logical firewall pilot
• IPSEC pilot
• Expanded border router filtering
• Hospital Projects
• CCA hub operational
• HMC fiber connect, new rtr ctr, RT bg
• Generic tunneling pilot
• Regional Networking projects
• PNWGP Westin 803/805 buildout complete
• Seattle Community College GE gigapop
  connection(s)
• WCI OC-12 activation use portland, alaska
• _at_Home connects to SNNAP
• National Networking projects
• Esnet
• DREN
• etc

7
Current Statistics

• Avg Backbone traffic nearly 500 GB/day
• Peak Inbound traffic nearly 50Mbps
• Doubling time 1.3 years
• Hosts nearly 40,000
• Modems over 2,000

8
Backbone Traffic -Linear
9
Backbone Traffic -Log
10
Number of Hosts
11
Border Traffic
12
How will we use the bandwidth?

• Aggregation more users, longer use
• Old Apps going faster
• New Apps previously impossible
• Enabled by Middleware
• Will NetMeeting one day be usable?
• Bulk VoIP?
• HDTV over IP?

13
Advanced Services, anyone?

• Multicast
• Deployed on 16 of subnets
• Waiting for new router software
• Target Oct 99, but more testing needed
• QoS
• Planning underway
• Whitepaper "Real Soon Now"

14
Baseline Services

• Shared 10Mbps HD
• Switched 10Mbps HD
• Switched 10/100Mbps FD
• backed by GE switch/router infrastructure
• Goal Switched 10/100 FD for everyone
• Reality Cat3 wireplant upgrade will take
  multiple years and multiple millions of dollars

15
Building/Subnet Status

• Connected buildings 150
• Category 3 133
• Category 5 17
• Buildings with 10/100 FD and GE backing
• Physics/Astronomy (6 subnets)
• Soon new Fish/Ocean (6 subnets)
• Departmental subnets 278
• Shared 10 208 (23 soon to be sw 10)
• Switched 10 58
• Switched 10/100 12
• So 1/3 of subnets (93/278) switched by year-end

16
Premium Services, Anyone?

• Wide-area QoS chargeback?
• Subscription () services?
• Switched 10 with expedited forwarding?
• Switched 10/100 with expedited forwarding?
• Lots of interesting policy and tech issues...

17
Who You Gonna Call?

• For installation or upgrade
• install_at_cac.washington.edu
• 543-5068
• For upgrades, prefer to do entire subnets
• Current pricing
• 100/port for switched 10Mbps/HD
• 200/port cat5 infrastructure cost for 10/100 FD

18
Hot List

• Campus building/subnet upgrades
• Regional networking K20, SNNAP, PNWGP,
  UWPN, CCA...
• Network Hardening
• Network Security Access control
• Network Advanced Services
• Wireless
