Presentacin de PowerPoint

1

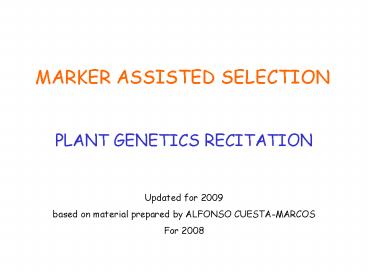

MARKER ASSISTED SELECTION
PLANT GENETICS RECITATION
Updated for 2009 based on material prepared by
ALFONSO CUESTA-MARCOS For 2008
2
Why marker assisted selection?
3
MARKER ASSISTED SELECTION

• Individuals carrying the trait of interest are
  selected based on a marker which is linked to the
  trait and not on the trait itself.
• Indirect selection.
• Useful when the trait is difficult to measure,
  and/or is evident only at late developmental
  stages.

4
(No Transcript)
5
(No Transcript)
6
I I I K I K I I K
iBison 1H4H5H
Kurtford
7
The barley stripe rust resistance story 1987
8
BARLEY STRIPE RUST
www.barleyworld.org
9
BARLEY STRIPE RUST

• Caused by fungus Puccinia striiformis f. sp.
  hordei
• Common in Mexico and South America but usually
  not in Oregon.
• It first appeared in the US in 1991
• When infection is severe, losses of 50 are
  common

10
BARLEY STRIPE RUST

• Resistant cultivars are available
• It is necessary to develop resistant cultivars
  adapted to different barley growing areas
• Resistance to the disease is a quantitative trait
  (non-Mendelian inheritance)
• Three Quantitative Trait Loci (QTL) for stripe
  rust resistance have been mapped and their
  effects validated.
• There are molecular markers located in the target
  regions of the three QTL

11
Race characterization of BSR isolates from
Huancayo, Peru. 2007
12
Cali-sib x Bowman
Shyri x Galena
CI10587 x Galena
BSR-45
D1-72
D3-6
Harrington
Baronesse
Orca
BCD
DB
BCD47
BCD12
D3-6/B23
D3-6/B61
AJO
BU
OPS
13
(No Transcript)
14
(No Transcript)
15
iBISON and BISON
iBISON
BISON
16
(No Transcript)
17
(No Transcript)
18
ORO
OWB Chr. 4H
EBmac701
SSR markers used for MAS
baal29j18

19
OWB Chr. 1H
20
Unmapped in OWB
21
OWB Chrom. 1H
Shyri x Galena
Act8
MWG837
2_0749
2_0749
BCD098
2_0749 Inferred position
22
OWB Chrom. 5H
Cali sib x Bowman
23
Flanking markers in each target region
Three resistance genes in chromosome 1H, 4H and 5H
24
THE PROBLEM

• KURTFORD
• 6 rowed hooded feed barley
• Well adapted to California conditions
• Short height
• Stripe Rust Susceptible

25

• iBISON 1H4H5H
• Resistance alleles for the three genes
• 2rowed awned barley short height

26
SOLUTION The Kurtford Conversion
Year 1
I Bison 1H 4H 5H
Kurtford 1H 4H 5H
X
SS SS SS
RR RR RR
Kurtford 1H 4H 5H
F1 heterozygote at 3 BSR resistance loci
X
RS RS RS
SS SS SS
BC1F1 12.5 of plants expected to be
heterozygote at 3 BSR resistance loci.
Segregation in each locus ½ RS ½ SS
27
Summer Fall 2007

• We have 589 BC1F1 seeds and we expect to find
  around 74 target heterozygotes at the 3 BSR
  resistance loci.We need
• -Confirm choice of markers
• DNA extraction for 589 plants
• Genotyping for the 3 BSR resistance regions
• Selection of targeted genotypes

MAS1
1H
4H
5H
Bmag399 EST4473
EST4535 Baal29j18 . Bags 4e
Bmag337 Bmag223 Bmag812
28
I I I K I K I I K
iBison 1H4H5H
Kurtford
29
(No Transcript)
30
Winter 2008

• Selection of heterozygotes (74)
• 10 seeds per selected plant 740 BC1F2 plants.
• Grow out and genotype

BC1F2 plants segregating in each locus ¼ RR ½
RS ¼ SS
MAS2
We expect 25 of the BC1F2 to be homozygous for
AT LEAST the 4H region ( 185). Of these 104
homozygote only for 4H 35 homozygote for 4H and
1H 35 homozygote for 4H and 5H 11 homozygote
for 1H, 4H and 5H
25/64 ( 38) of the resistant plants will be
homozygous hooded
31
Winter 2008/2009 seed increase Summer 2009
validate resistance
Field test
70 homozygous hooded, BSR resistant plants
32
Abundant, gene-based markers make MAS more
effective and informative
33
What makes a trait quantitative and not
qualitative? Successful MAS may precede gene
characterization Phenotypic performance is the
ultimate measure of agronomic worth
34
MAS - coming to a field near you
