Recirculating Systems

1

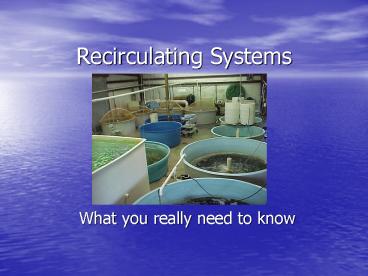

Recirculating Systems

• What you really need to know

2
What Is The Goal?

• To produce fish in a cost effective manner where
  the environment is controlled through water
  treatment and recirculation

3
Putting the Pieces Together

• Components
• Setup
• Operation
• Water Quality

4
Basic System Components

• Culture Tank(s)
• Solids Removal
• Biofilter
• Oxygenation
• Pump
• Temperature Control
• Fine Dissolved Solids Removal
• Disinfecting

5
(No Transcript)
6
Types of Culture Tanks
7
Types of Tanks
8
Solids Removal

• Settleable solids
• solids that will generally settle out of the
  water within 1 hour under still conditions
• Suspended solids
• will not settle to the bottom of the fish culture
  tank
• Fine and dissolved solids
• lt 30 micrometers

9
Settleable Solids

• Can be removed by
• Well placed drains
• Sedimentation tank (clarifier)
• Mechanical filter (granular or screen)
• Swirl separator

10
Solids Removal
Settling Tank
11
Settling Basin
12
Settling Basin Design
Weir
13
Settling Basin and Biofilter Return
14
Suspended Solids

• Can Be Removed By
• Screen Filtration
• Mechanical Filtration (sand or pelleted media)

15
Upflow Sand Filter
16
Bead Filters
17
Biofiltration

• Removes Metabolic Waste Products
• Ammonia
• Nitrite

18
Biological Filtration(Nitrification)

• Trickling Filters
• Bead Filter
• Rotating Bio-Contactor (RBC)

19
Trickle Filter
Bioballs
20
Packed Tower
Trickle Filter
Trickle Filter
Trickle Filter
21
Filter Media
22
Surface Area of Various Media
23
Bead Filter
24
RBC
Rotating Bio-Contactor
25
Rotating Bio-Contactor
RBC
RBC
26
Oxygenation

• Aeration and Degassing
• Pure Oxygen Injection

27
In most cases, a systems ability to add
dissolved oxygen to water will become the first
limiting factor in a systems fish carrying
capacity.
28
Regenerative Blower
29
Air Stones
Fine Bubble
Medium Bubble
30
Downflow Bubble Contactor
31
Pump
Pump selection is based on the amount of
recirculation necessary to maintain good water
quality.
Related to feed input, number, size species of
fish
32
Temperature Manipulation
Heater
Chiller
33
Dissolved Solids Control

• Can Be Removed By
• Foam Fractionator
• Water Changes

Fine suspended solids increase the oxygen demand
of the system and cause gill irritation.
Dissolved organic solids (protein) can contribute
significantly to the oxygen demand of the total
system
34
Foam Fractionator(Protein Skimmer)
35
Break Time
36
The Set Up

• Things to think about

37
Putting it all together
38
Where to Start

• Inspect Parts
• Identify and Label Parts
• Read Directions
• Assemble System Without Glue
• Double Check 1-way Valves etc.
• Glue

39
Start-Up Break In Period

• Fill With Water
• Check For Leaks Repair
• Let run for a few days and watch for new leaks
• Remove Chlorine

40
Biofilter Initiation

• Check Alkalinity
• Start adding SMALL amounts of household ammonia
• Bacteria should begin to colonize filter
• Run system for 2-3 weeks

41
Biofilter Initiation Option 2

• Add 20-30 small to medium fish
• Use a reputable fingerling dealer
• Check fish for parasites and disease prior to
  adding them to the system
• Acclimate fish to receiving tank

42
Calculate Feed

• Feeding rates based on
• Fish Species
• Fish Size

43
Tilapia Stocking and Feeding
44
Calculating Feed Amount

• Example
• 100 fish weigh 10 pounds total
• Approximately 45 grams each
• According to chart use 3.2 of body wt.
• 10 lbs x 0.032 .32 lbs or 145 grams
• Feed 145 grams splitting feed into several
  feedings

45
Recalculating Feed after 7 days

• Sample 25 fish and calculate total wt.
• 25 fish weigh 1314 grams
• 1314 grams / 25 fish 52.6 g/fish
• 100 fish x 52.6 g 5260g or 11.6 lbs
• New feed rate 5260 g x 0.032 168g

46
Feed Conversion Ratio

• Growth 1.6 lbs using 2.24 lbs of feed
• Feed Conversion Ratio 1.4 1
• Now that you have a feed conversion ratio you can
  also calculate new feed rates based on this ratio

47
Calculating New Feed Rate Based on FCR

• 10 days feeding at the new rate
• 168g x 10 1680 g
• 1680 g / 1.4 1200 g new growth
• New total weight
• 1200 g 5260 g 6460 g
• New daily feed rate
• 6460 x .032 207 g
• Recalculate FCR regularly (1-2 months)

48
Water Quality After Feeding

• Watch ammonia levels
• Prepare water for partial change
• 2-3 55 gallon barrels
• Change 5-10 of water every 1-2 days
• Track feed, DO, Ammonia, Nitrite, pH and
  alkalinity
• Once system is stable add more fish

49
Adding More Fish

• Determine how many fish system can handle
• Look at capacity of biofilter
• based on surface area of media
• Continue to monitor and feed

50
Eat Fish
