Title: Water Opportunities


1

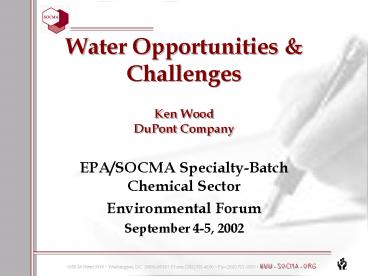

Water Opportunities Challenges Ken
WoodDuPont Company
  • EPA/SOCMA Specialty-Batch Chemical Sector
  • Environmental Forum
  • September 4-5, 2002

2
General Context of Water Discharges at SOCMA
Facilities
  • Process Wastewater
  • Pretreatment per categorical standards/local
    limits
  • Indirect Discharge to POTW through
    municipal/regional sewer
  • Other Wastewater Sources/Discharges
  • Domestic/Sanitary to municipal sewer
  • Cooling Water to sewer or receiving stream
  • Storm Water to sewer or receiving stream

3
SOCMA Water Discharge- Regulatory Drivers
  • Categorical Pretreatment Standards
  • General Federal Pretreatment Requirements
  • Local Sewer Ordinances
  • SPCC Plan Requirements
  • NPDES Stormwater Permits - General, Specific,
    BMPs
  • TRI Water Emissions reporting
  • CERCLA Reportable Quantities
  • Pending 316(b) Cooling Water Intake Regulation?

4
Surface Water Regulations/Permitting
  • Surface Water issues are important to SOCMA
    members as major driver for future effluent
    limitations
  • However, member facilities are generally
    indirectly impacted -- when surface WQ issues
    affect POTWs to which they discharge wastewater
  • Therefore, SOCMA typically monitors following
    types of issues through coalitions (FWQC) or ACC
    rather than actively participating in stakeholder
    groups
  • Watershed Rule/TMDLs
  • Water Quality/Sediment Criteria and Standards
  • Effluent Trading

5
Issue 1 - Overlap of Effluent Guideline - Point
Source Categories
  • Many SOCMA members operate multi-purpose batch
    facilities potentially subject to more than 1
    industrial point source category based on
    product mix
  • Industrial Category 40 CFR Part
  • Organic Chemicals (OCPSF) 414 416
  • Pharmaceuticals 439
  • Pesticides Manuf/Formulation 455
  • Others?

6
Pharmaceutical Effluent Guidelines (EGs)
  • Several SOCMA plants manufacture multi-use
    products that are sold for use as FDA-regulated
    including pharmaceutical active ingredients
  • Pharma EGs (part 439) covers these multiple
    end-use products including chemical intermediates
    intended for use in pharma applications

7
Pharmaceutical Effluent Guidelines (EGs)
  • EPA addressed this overlap at some SOCMA
    facilities where pharma products and
    intermediates also are subject to OCPSF (part
    414) by
  • Exclusion from Pharma Effluent Guidelines if flow
    from those products is lt50 of the total process
    wastewater regulated by part 414

8
Issues Remain at Other Multiple Industrial
Categorical Standard Facilities
  • Multi-purpose batch facilities where product mix
    and relative percentage of wastewater flow varies
  • Some pharma products are not multi-use and
    uniquely for that industry

9
Issues Remain at Other Multiple Industrial
Categorical Standard Facilities
  • Plants that manufacture and/or formulate
    pesticide products covered by part 455 as well as
    chemicals under part 414
  • Plants with low wastewater flow (lt25,000 gpd)
    that could otherwise be considered
    Non-Significant Industrial Users (re
    Streamlining issue)

10
Further Guidance Needed for Pretreatment Control
Authorities
  • Preambles and specifics of applicability criteria
    are not generally accessible and available to
    local control authorities that regulate small,
    specialty-batch chemical plants

11
Further Guidance Needed for Pretreatment Control
Authorities
  • Additional specific guidance and examples to
    assist permit writers esp. for multiple
    industrial category facilities is needed which
    could be met by
  • EPAs Local Limits Development Guidance Manual
    currently undergoing revision/updating
  • Updating EPAs Guidance Manual for the Use of
    Production-based Pretreatment Standards and
    Combined Waste Stream Formula published in 1985

12
Issue 2 - General Pretreatment Requirements
Streamlining
  • EPA proposed streamlining several provisions in
    40 CFR Part 403 - General Pretreatment
    Requirements 3 years ago (7/22/99 Federal
    Register)
  • SOCMA supported this streamlining effort and
    provided comments on November 19, 1999.
  • Some comments dealt with specific situations
    involving batch processes/discharges and their
    variable nature
  • Examples are ...

13
General Pretreatment Requirement Low pH
Prohibition
  • pH discharges below pH 5.0 are currently not
    allowed unless POTW is specifically designed to
    accommodate
  • EPA proposed to allow POTWs to discharge
    wastewater temporarily below pH 5.0 provided
    technical evaluation supports

14
General Pretreatment Requirement Low pH
Prohibition
  • SOCMA members would benefit due to variable
    nature of discharges from batch operations and
    support allowing POTWs to have greater
    flexibility to set short-term limits even below
    pH 4 if evaluation indicates it is acceptable

15
General Pretreatment Requirement- Equivalent
Concentration Limits
  • Most SOCMA member discharges are covered under
    OCPSF regulations that require concentration-based
    standards be converted to mass-based limits
  • EPA proposed that equivalent concentration limits
    be allowed for facilities that have highly
    variable flow
  • This provision would benefit small,
    specialty-batch operations that inherently
    generate highly variable volumes of wastewater

16
General Pretreatment Requirement- Definition of
Categorical Industrial User
  • Current definition of Significant Industrial User
    (SIU) includes all categorical dischargers
    (CIUs)
  • EPA has proposed flexibility to allow POTWs to
    exempt non-significant CIUs from the definition
    of SIU

17
General Pretreatment Requirement- Definition of
Categorical Industrial User
  • SOCMA supports this proposal except that the
    proposed flow ceiling of 100 gpd is too low and
    will provide virtually no regulatory relief to
    dischargers
  • SOCMA recommends that the flow ceiling be raised
    to a point that will exempt very small batch
    plants from SIU status that have negligible
    impact on their POTWs

18
Other General Pretreatment Provisions
  • SOCMA commented on other provisions that should
    be streamlined
  • Slug Control Plans
  • Monitoring for pollutants not present
  • Use of grab and composite samples
  • General permits and BMPs
  • Removal Credits
  • Recommended changes will provide efficiencies and
    benefits to POTWs as well as industrial users.
  • In addition, number of opportunities for
    improving pretreatment program remain that should
    be pursued.

19
Issue 3 - Removal Credits
  • Application for and availability of removal
    credits is addressed in the General Pretreatment
    Standards regulation (40 CFR 403.7)
  • Congress provided for removal credits in CWA to
    promote efficient use of overall removal
    capabilities and avoid redundant treatment of
    wastewater discharged to POTWs.

20
Issue 3 - Removal Credits
  • Availability has been limited to a very few
    pollutants for which sludge standards have been
    promulgated.
  • Application for removal credits and inclusion of
    additional pollutants is onerous if not virtually
    impossible.
  • Streamlining of the removal credit process has
    been taken off the table and instead further
    restrictions are to be imposed as a result of
    legal challenges.

21
Issue 4 - Proposed Wastewater NSPS and
Flexibility for Batch Operations
  • Subpart YYY was originally proposed in 1994 with
    supplemental notices issued in 1995 and 1998.
  • Standards of Performance for New Stationary
    Sources VOC Emissions from the Synthetic
    Organic Chemical Manufacturing Industry
    Wastewater

22
Issue 4 - Proposed Wastewater NSPS and
Flexibility for Batch Operations
  • Covers VOC emissions from SOCMI industry
    wastewater sources for new, reconstructed or
    modified sources.
  • SOCMA has made a number of comments relative to
    its specific issues re batch processes and their
    unique operating conditions.

23
Issue 4 - Proposed Wastewater NSPS and
Flexibility for Batch Operations
  • Regulation is extremely complex and burdensome
    for small, specialty-batch chemical producer
  • Understanding applicability requirements alone
    will be a major undertaking
  • SOCMA has recommended small volume producers be
    exempt and proposed diminimis levels in terms of
    annual production and test batches of SOCMI
    chemicals

24
Issue 4 - Proposed Wastewater NSPS and
Flexibility for Batch Operations
  • In the proposed rule, annual average is used
    for applicability determinations and calculations
    must account for 12-month period of operation.
  • Annual average may be appropriate for
    continuous and/or single product units but not
    multi-purpose batch processes.
  • Calculations to determine true annual average
    for an entire 12-month period or even for a
    single baseline product re 772(e)(2) over a
    complete campaign would be extremely difficult
    and burdensome.

25
Issue 4 - Proposed Wastewater NSPS and
Flexibility for Batch Operations
  • SOCMA proposed 2 new definitions under 60.771 to
    accommodate our request to determine Organic
    wastewater compound emissions and mass emission
    increases over a single representative batch
    cycle and provided example calculations for such
    from actual plant data.
  • Definition of Standard Batch was taken from the
    Pharmaceutical MACT regulation

26
Issue 4 - Proposed Wastewater NSPS and
Flexibility for Batch Operations
  • Status
  • SOCMA has reviewed its comments on Subpart YYY
    proposed regulation with EPA on several occasions
    as part of stakeholders group.
  • No resolution has been reached to our knowledge
    or draft language provided by the Agency for our
    consideration specifically re batch cycles,
    diminimis exemption.
  • The rule is now scheduled for promulgation in
    late 2002 or early 2003.
