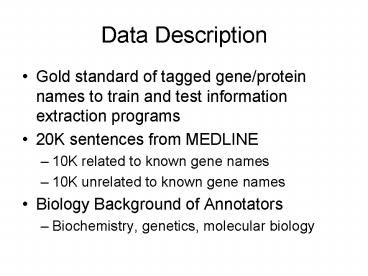

Data Description

1
Data Description

• Gold standard of tagged gene/protein names to
  train and test information extraction programs
• 20K sentences from MEDLINE
• 10K related to known gene names
• 10K unrelated to known gene names
• Biology Background of Annotators
• Biochemistry, genetics, molecular biology

2
Challenges

• Defining a true positive gene/protein name
• Wide definition with specificity constraint
• Preservation of semantics
• Partial match with semantic constraints
• Tokenization
• Interannotator agreement
• Annotation rules
• Consistency Problems
• Human limitations
• Applying the definition of a true positive
• Entering data

3
Defining a True Positive Gene/Protein Name

• Wide definition with specificity constraint
• Include domains, complexes, subunits, promoters
  IFF refer to a specific gene/protein
• GenBank entries justify this definition
• Sf3b4, splicing factor 3b, subunit 4
• Mus musculus transaldolase gene, promoter region
• GenBank exceptions to this definition were
  incorporated into annotation scheme
• bHLH transcription factor mRNA
• Xenopus laevis similar to POU domain gene

4
Defining a True Positive Gene/Protein Name

• Preservation of semantics
• rabies immunoglobulin (RIG)
• immunoglobulin alone in this context does not
  convey true semantics
• IGG receptor
• igg alone in this context does not convey true
  semantics
• Tumor necrosis factor 1
• Tumor necrosis factor alone in this context does
  not convey true semantics

5
Defining a True Positve Gene/Protein Name

• Partial match with semantic constraints
• Exact match
• Inflexible
• Partial match
• Inaccurate
• Insertions
• all p53 genes
• Deletions
• major histocompatibility complex
• Gold standard plus acceptable alternatives

6
Tokenization

• Gold standard with acceptable alternatives
• Need sentence indices to determine which
  alternatives are allowed for each gold standard
  name
• Consider an example sentence
• tumor necrosis factor appears 3 times
• tumor necrosis factor 1 appears 2 times
• tumor necrosis factor is not an acceptable
  alternative for the places in the sentence where
  tumor necrosis factor 1 occurs
• Problematic reliance on exact tokenization
• Necessary for correct sentence indices
• TOKENIZED_CORPUS provided

7
Interannotator Agreement

• Reflects difficulty of task
• Compare one annotator's tags to at least two
  other annotators tags
• Broadcast news IE
• 82-93 F-score (Robinson et al. DARPA Hub 4)
• PASTA biological IE system
• 89 F-score for terminology (Demetriou
  Gaizauskas)
• Did not perform interannotator agreement study
• Datasets originally intended for internal use
  only

8
Consistency Problems

• Applying the definition of a true positive
  gene/protein name
• Conjuct/Adjunct judgement calls
• src homology 2 and 3
• Nested gene/protein name judgement calls
• stress-activated protein kinase-Jun N-terminal
  kinase
• Semantic Lookup Time
• E2 RAD5 ( UBC2 )
• LAZ3/BCL6 BTB/POZ
• Are they stand-alone synonyms?
• Is it a complex or fusion protein?
• Sentence context is often not enough
• Entire abstract context is sometimes not enough
  even for experts
• Tradeoff between accuracy and annotation time
  required

9
Consistency Problems

• Generating acceptable alternative indices
• Manual generation open to human error
• The prosomal RNA-binding protein p27K is a member
  of the alpha-type human prosomal gene family.
• name start end sentence id entered into
  text box on web page
• p27K 4 4 3919
• protein p27K 3 4 3919
• RNA-binding protein p27K 2 4 3919
• alpha-type human prosomal gene 10 13 3919

10
Future Implications

• More careful definition of true positives,
  including grey areas
• Will improve each annotators consistency
• Will improve interannotator agreement
• Make tokenization as consistent as possible
• Relax need for 100 tokenization agreement for
  gold standard/test sets
• Automate generation of acceptable alternative
  indices
