Practical Aspects of Alerting Algorithms in Biosurveillance

1

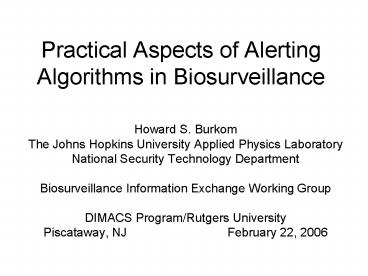

Practical Aspects of Alerting Algorithms in
Biosurveillance

• Howard S. Burkom
• The Johns Hopkins University Applied Physics
  Laboratory
• National Security Technology Department
• Biosurveillance Information Exchange Working
  Group
• DIMACS Program/Rutgers University
• Piscataway, NJ February 22, 2006

2
Outline

• What information do temporal alerting algorithms
  give the health monitor?
• How can typical data issues introduce bias or
  other misinformation?
• How do spatial scan statistics and other
  spatiotemporal methods give the monitor a
  different look at the data?
• What data issues are important for the quality of
  this information?

3
Conceptual approaches to Aberration Detection

• What does aberration mean? Different approaches
  for a single data source
• Process control-based The underlying data
  distribution has changed many measures
• Model-based The data do not fit an analytical
  model based on a historical baseline many
  models
• Can combine these approaches
• Spatiotemporal Approach The relationship of
  local data to neighboring data differs from
  expectations based on model or recent history

4
Comparing Alerting AlgorithmsCriteria

• Sensitivity
• Probability of detecting an outbreak signal
• Depends on effect of outbreak in data
• Specificity ( 1 false alert rate )
• Probability(no alert no outbreak )
• May be difficult to prove no outbreak exists
• Timeliness
• Once the effects of an outbreak appear in the
  data, how soon is an alert expected?

5
Aggregating Data in Time
6
Elements of an Alerting Algorithm

• Values to be tested raw data, or residuals from
  a model?
• Baseline period
• Historical data used to determine expected data
  behavior
• Fixed or a sliding window?
• Outlier removal to avoid training on
  unrepresentative data
• What does algorithm do when there is all zero/no
  baseline data?
• Is a warmup period of data history required?
• Buffer period (or guardband)
• Separation between the baseline period and
  interval to be tested
• Test period
• Interval of current data to be tested
• Reset criterion
• to prevent flooding by persistent alerts caused
  by extreme values
• Test statistic value computed to make alerting
  decisions
• Threshold alert issued if test statistic exceeds
  this value

7
Rash Syndrome Grouping of Diagnosis
Codeswww.bt.cdc.gov/surveillance/syndromedef/word
/syndromedefinitions.doc
8
Example Daily Counts with Injected Cases
Injected Cases Presumed Attributable to Outbreak
Event
9
Example Algorithm Alerts Indicated
10
EWMA Monitoring

• Exponential Weighted Moving Average
• Average with most weight on recent Xk
• Sk wS k-1 (1-w)Xk,
• where 0 lt w lt 1
• Test statistic
• Sk compared to expectation from sliding
  baseline
• Basic idea monitor
• (Sk mk) / sk

• Added sensitivity for gradual events
• Larger w means less smoothing

11
Example with Detection Statistic Plot
12
Example EWMA applied to Rash Data
13
Effects of Data Problems
14
Importance of spatial data for biosurveillance

• Purely temporal methods can find anomalies, IF
  you know which case counts to monitor
• Location of outbreak?
• Extent?
• Advantages of spatial clustering
• Tracking progression of outbreak
• Identifying population at risk

15
Evaluating Candidate Clusters
Surveillance Region
Candidate cluster The scan statistic gives a
measure of how unlikely is the number of cases
inside relative to the number outside, given the
expected spatial distribution of cases (Thus, a
populous region wont necessarily flag.)
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
16
Selecting Candidate Clusters
x
x
x
x
x
x
x
x
x
x
x
x
x
17
Searching for Spatial Clustering

• form cylinders bases are circles about each
  centroid in region A, height is time
• calculate statistic for event count in each
  cylinder relative to entire region, within space
  time limits
• most significant clusters regions whose
  centroids form base of cylinder with maximum
  statistic
• but how unusual is it? Repeat procedure with
  Monte Carlo runs, compare max statistic to maxima
  of each of these

18
Scan Statistic Demo
19
Scan Statistics Advantages

• Gives monitor guidance for cluster size,
  location, significance
• Avoids preselection bias regarding cluster size
  or location
• Significance testing has control for multiple
  testing
• Can tailor problem design by data, objective
• Location (zipcode, hospital/provider site,
  patient/customer residence, school/store address)
• Time windows used (cases, history, guardband)
• Background estimation method model, history,
  population, eligible customers

20
Surveillance ApplicationOTC Anti-flu Sales,
Dates 15-24Apr2002
Total sales as of 25Apr 1804
potential cluster center at 22311 63 sales,
39 exp. from recent data rel. risk 1.6 p
0.041
21
Distribution of Nonsyndromic Visits4 San Diego
Hospitals
22
Effect of Data Discontinuities on OTC Cough/Cold
Clusters
Days
Zip (S to N)

• Before removing problem zips, cluster groups
  are dominated by zips
• that turn on after sustained periods of zero
  or abnormally low counts.
• After editing, more interesting cluster groups
  emerge.

23
School Nurse Data All Visits
unreported
24
Cluster Investigation by Record Inspection
Records Corresponding to a Respiratory Cluster
25
Backups
26
Cumulative Summation Approach (CUSUM)

• Widely adapted to disease surveillance
• Devised for prompt detection of small shifts
• Look for changes of 2k standard deviations from
  the mean m (often k 0.5)
• Take normalized deviation often Zt (xt m) / s
• Compare lower, upper sums to threshold h
• SH,j max ( 0, (Zt - k) SH,j-1 )
• SL,j max ( 0, (-Zt - k) SL,j-1 )
• Phase I sets m, s, h, k

Upper Sum Keep adding differences between
todays count and k std deviations above
mean. Alert when the sum exceeds threshold h.
27
CuSum Example CDC EARS Methods C1-C3

• Three adaptive methods chosen by National Center
  for Infectious Diseases after 9/1/2001 as most
  consistent
• Look for aberrations representing increases, not
  decreases
• Fixed mean, variance replaced by values from
  sliding baseline (usually 7 days)

Baseline for C1-MILD (-1 to -7 day)
Baseline C2-MEDIUM (-3 to -9days)
Baseline for C3-ULTRA (-3 to -9 days)
28
Calculation for C1-C3

• Individual day statistic for day j with lag n
• Sj,n Max 0, ( Countj µn sn ) / sn,
  where
• µn is 7-day average with n-day lag
• ( so µ3 is mean of counts in j-3, j-9 ),
  and
• sn standard deviation of same 7-day window
• C1 statistic for day k is Sk,1 (no lag)
• C2 statistic for day k is Sk,3 (2-day lag)
• C3 statistic for day k is Sk,3 Sk-1,3 Sk-2,3
• ,where Sk-1,3 , Sk-2,3 are added if they do not
  exceed the threshold
• Upper bound threshold of 2
• equivalent to 3 standard deviations above mean

29
Detailed Example, I
Fewer alerts AND more sensitive why?
30
Detailed Example, II
Signal Detected only with 28-day baseline
31
Detailed Example, IIIthe rest of the story
