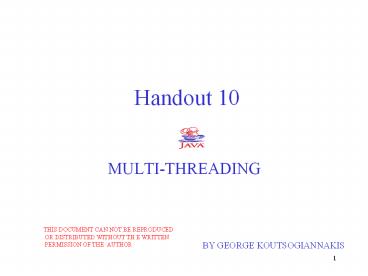

Handout 10

1
Handout 10

• MULTI-THREADING

THIS DOCUMENT CAN NOT BE REPRODUCED OR
DISTRIBUTED WITHOUT TH E WRITTEN PERMISSION OF
THE AUTHOR
BY GEORGE KOUTSOGIANNAKIS
2
Multi-Threading

• Concurrency The ability to perform more than one
  task in parallel within a specified time t. This
  means that two or more threads can be executing
  code at the same time. The code is not in strict
  sense executed at the same time but rather the
  CPU time is being shared by the threads.
• Multitasking The ability to perform a number of
  tasks (Sharing the time between different tasks)
  via multiple processing.
• Multi-Threading Running more than one thread at
  the same time in the same program.
• Multiprocessing Running more than one processor
  (true parallelism)
• Single thread implies one task at a time. C and
  C are single thread languages ( one activity at
  a time).

BY GEORGE KOUTSOGIANNAKIS
3
Multi-Threading

• Multiprocessor machines can perform true
  concurrency.
• Java does timeslicing giving threads of equal
  priority small quantum of processor time that
  they can use in a round robin fashion.
• System calls refer to routines run by the
  operating system. The routine is called by a
  thread. In some operating systems only one thread
  at a time can make a system call whereas in
  others more that one thread can make system calls
  at the same time (example write this file to
  the disk).
• Synchronization is the method used to ensure that
  multiple thraeds coordinate their activities so
  that one thread does not change data that another
  thread is working on.
• POSIX is a standard that describes how Operating
  systems should handle threads.

BY GEORGE KOUTSOGIANNAKIS
4
Multi-Threading

• JAVA THREADS ARE IMPLEMENTED IN THE JVM.
• JAVA DOES NOT EXPOSE THE NATIVE (OPERATING
  SYSTEM) THREADS. THREFORE SOME ISSUES OF
  UNIFORMITY ACROSS PLATFORMS ARE RISEN.
• THRE ARE CURRENTLY NO ACCURATE BENCHMARKS OF
  JAVA S PARALLEL PROGRAMMING PERFORMANCE.

BY GEORGE KOUTSOGIANNAKIS
5
Multi-Threading

• POSSIBLE PROBLEMS WITH THREADS
• RACE CONDITIONS OCCURS WHEN THE RESULTS OF A
  COMPUTATION ARE NONDETERMINISTIC DUE TO
  CONCURRENT EXECUTION
• DEADLOCK- NO THREAD IS EXECUTED
• STARVATION- A HIGHER PRIORITY THREAD PREVENTS
  INDEFINETELY LOWER PRIORITY THREADS FROM
  EXECUTING
• Synchronized methods have monitors . Monitors
  prevent more than one thread at a time to execute
  the synchronized method.

BY GEORGE KOUTSOGIANNAKIS
6
Multi-Threading

• A thread ( process) can share the memory with
  other threads. Each thread needs its own stack.

STACK
DATA
HEAP
CODE
BY GEORGE KOUTSOGIANNAKIS
7
Multi-Threading

• Definition A thread is a single sequential flow
  of control within a program.

BY GEORGE KOUTSOGIANNAKIS
8
Multi-Threading

• A single thread also has a beginning, a sequence,
  and an end.
• At any given time during the runtime of the
  thread, there is a single point of execution.
  However, a thread itself is not a program it
  cannot run on its own. Rather, it runs within a
  program.
• As a sequential flow of control, a thread must
  carve out some of its own resources within a
  running program. (It must have its own execution
  stack and program counter for example.)
• The code running within the thread works only
  within that context. Thus, execution context is a
  synonym for thread.

BY GEORGE KOUTSOGIANNAKIS
9
Multi-Threading

• Example of two threads running at the same time

Another program or another section of the same
program
BY GEORGE KOUTSOGIANNAKIS
10
Multi-Threading

• Once you know how to get a thread to do
  something, you need to understand the life cycle
  of a Thread
• A simplified version of the threads life is shown
  below

BY GEORGE KOUTSOGIANNAKIS
11
Multi-Threading

• The following classes are used with a thread
• java.lang.Thread implements Runnable interface
• java.lang.ThreadGroup
• java.lang.ThreadDeath
• Constructors of Thread class
• public Thread() Allocates a new Thread object.
• public Thread(Runnable target) target - the
  object whose run method is called.
• public Thread(ThreadGroup group,Runnable target)
  group - the thread group, target - the object
  whose run method is called.
• public Thread(String name) name - the name of
  the new thread.
• public Thread(ThreadGroup group,String name)
  group - the thread group, name -the name of the
  new thread.

BY GEORGE KOUTSOGIANNAKIS
12
Multi-Threading

• public Thread(Runnable target, String name)
  target - the object whose run method is called,
  name - the name of the new thread.
• public Thread(ThreadGroup group, Runnable
  target,String name) Allocates a new Thread object
  so that it has target as its run object, has the
  specified name as its name, and belongs to the
  thread group referred to by group.
• Some Important Methods
• public static native Thread currentThread()
  Returns a reference to the currently executing
  thread object.
• public static native void yield() Causes the
  currently executing thread object to temporarily
  pause and allow other threads to execute.Most
  appropriate for non-timeslicing systems.
• public static native void sleep(long millis)
  throws InterruptedException Causes the currently
  executing thread to sleep (temporarily cease
  execution) for the specified number of
  milliseconds. The thread does not lose ownership
  of any monitors.

BY GEORGE KOUTSOGIANNAKIS
13
Multi-Threading

• public native synchronized void start() Causes
  this thread to begin execution the Java Virtual
  Machine calls the run method of this thread.
• The result is that two threads are running
  concurrently the current thread (which returns
  from the call to the start method) and the other
  thread (which executes its run method).
• public void run() override and place the code
  that does the all the work for the thread in this
  method
• public final void stop() Forces the thread to
  stop executing. The thread represented by this
  thread is forced to stop whatever it is doing
  abnormally and to throw a newly created
  ThreadDeath object as an exception.
• public void interrupt() Interrupts this thread.
• public void destroy() Destroys this thread,
  without any cleanup.
• public final native boolean isAlive() Tests if
  this thread is alive. A thread is alive if it has
  been started and has not yet died.
• public final void suspend() Suspends this thread.


BY GEORGE KOUTSOGIANNAKIS
14
Multi-Threading

• public final void resume() Resumes a suspended
  thread.
• public final void setPriority(int newPriority)
  Changes the priority of this thread.
• Class java.lang.ThreadDeath
• java.lang.Object
• ----java.lang.Throwable
• ----java.lang.Error
• ----java.lang.ThreadDeath

BY GEORGE KOUTSOGIANNAKIS
15
Multi-Threading

• public class ThreadDeath extends Error
• An instance of ThreadDeath is thrown in the
  victim thread when the stop method with zero
  arguments in class Thread is called.
• Class java.lang.ThreadGroup
• java.lang.Object
• ----java.lang.ThreadGroup
• Thread group represents a set of threads. In
  addition, a thread group can also include other
  thread groups. The thread groups form a tree in
  which every threadgroup except the initial thread
  group has a parent.
• A thread is allowed to access information about
  its own thread group, but not to access
  information about its thread group's parent
  thread group or any other thread groups.

BY GEORGE KOUTSOGIANNAKIS
16
Multi-Threading

• Creating a Thread
• The application in which an applet is running
  calls the applet's start method when the user
  visits the applet's page. The Clock applet
  creates a Thread, clockThread
• public void start()
• if (clockThread null)
• clockThread new Thread(this,
  "Clock")
• clockThread.start()
• note that the the statement public void start()
  refers to the start method of the applet.

BY GEORGE KOUTSOGIANNAKIS
17
Multi-Threading

• The start method of the Thread class (not of the
  Applet class) creates the system resources
  necessary to run the thread, schedules the thread
  to run, and calls the thread's run method.
• ClockThread's run method is the one defined
  in the Clock class.
• public void run()
• Thread myThread Thread.currentThrea
  d()
• while (clockThread myThread)
• repaint()
• try
• Thread.sleep(1000)
• catch (InterruptedException
  e)
• // the VM doesn't want us
  to sleep anymore,
• // so get back to work

BY GEORGE KOUTSOGIANNAKIS
18
Multi-Threading

• A THREAD IS A LIGHTWEIGHT ENTITY MADE OUT OF
• REGISTERS
• STACK
• OTHER DATA
• WHEN A THREAD CHANGES A PROCESS VARIABLE ALL
  OTHER THREADS SEE THAT CHANGE.
• Making a Thread Not Runnable
• thread becomes Not Runnable A when one of these
  events occurs
• Its sleep method is invoked.
• The thread calls the wait method to wait for a
  specific condition to be satisifed.
• The thread is blocking on I/O.

BY GEORGE KOUTSOGIANNAKIS
19
Multi-Threading

• If a thread has been put to sleep, then the
  specified number of milliseconds must elapse.
• If a thread is waiting for a condition, then
  another object must notify the waiting thread of
  a change in condition by calling notify or
  notifyAll.
• If a thread is blocked on I/O, then the I/O must
  complete.
• Stopping a thread
• A program doesn't stop a thread like it stops an
  applet (by calling a method). Rather, a thread
  arranges for its own death by having a run method
  that terminates naturally. For example, the while
  loop in this run method is a finite loop
• public void run()
• int i 0
• while (i lt 100)
• i
• System.out.println("i " i)

BY GEORGE KOUTSOGIANNAKIS
20
Multi-Threading

• the exit condition for this run method is the
  exit condition for the while loop because there
  is no code after the while loop
• while (clockThread myThread)
• This condition indicates that the loop will exit
  when the currently exiting thread is not equal to
  clockThread. When you leave the page, the
  application in which the applet is running calls
  the applet's stop method. This method then sets
  the clockThread to null, thereby telling the main
  loop in the run method to terminate
• public void stop() // applets'
  stop method
• clockThread null
• If you revisit the page, the start method is
  called again and the clock starts up again with a
  new thread. Even if you stop and start the applet
  faster than one iteration of the loop,
  clockThread will be a different thread than
  myThread and the loop will still terminate.
• You can create at least 10 thread priorities in
  Java.

BY GEORGE KOUTSOGIANNAKIS
21
Multi-Threading

• Notice that min priority is 1 and maximum is 10
• Threads are Operating system dependent.
• Solaris executes until its completion. Threads of
  equal priority wait. A thread of higher priority
  can interrupt.
• Windows does timeslicing between threads of equal
  priority.
• Yield applies only to threads of equal priority.
  If a higher priority thread is ready the current
  thread preempties.
• Yield does not apply to timeslicing.

BY GEORGE KOUTSOGIANNAKIS
22
Multi-Threading

• LIFECYCLE OF THREADS

EXCEPTION DEAD STATE
CURRENT THREAD YIELDS
THREAD IS BORN
READY STATE EQUAL PRIORITY THREADS
START()
RUN COMPLTED DEAD STATE
RUNNING STATE
RUNNABLE STATE
READY STATE HIGHER PRIORITY THREAD
CURRENT THREAD PREEMPTIES
BLOCKED STATE
SLEEPING STATE
WAIT FOR OBJECT
NOTIFY OR NOTIFY ALL BY ANOTHER THREAD THAT
CONTROLS THE OBJECT
BY GEORGE KOUTSOGIANNAKIS
23
Multi-Threading

• SYNCHRONIZATION OF TRHEADS -assume time t1 (an
  instance in time).Threads 1 and 2 attempt to
  invoke methods 1 and 2 RESPECTIVELY using object 1

BY GEORGE KOUTSOGIANNAKIS
24
Multi-Threading

• When thread 1 completes the object notifies
  thread 2 to become ready again and attempt to
  obtain the lock on the object.
• If more than one thread is waiting then it is
  possible to notifyAll to go to the ready state.
• Sections of code that must be syncronized and try
  to be executed simultaneously are called
  critical sections
• The term synchronized is a modifier that can be
  used with methods (and some times with
  instances-objects).

BY GEORGE KOUTSOGIANNAKIS
25
Multi-Threading

• CONSUMER PRODUCER PROBLEM (CPP)
• PROBLEM DEFINITION Under ideal conditions the
  following applies
• There exists a Buffer with a finite number of
  items or slots all of which are identical.
• There is a Producer that produces the items into
  the slots, one item at a time.
• There is a Consumer that consumes the items from
  the slots, one at a time.
• The Producer takes a finite amount of time to
  produce each item.
• The Consumer takes a finite amount of time to
  consume each item.

BY GEORGE KOUTSOGIANNAKIS
26
Multi-Threading

• Use of a Buffer Slot is mutually exclusive, that
  is, the producer cannot produce into and the
  consumer cannot consume from the same slot at the
  same time.
• Producer can produce only into an empty slot,
  that is, it cannot produce into a slot already
  containing an unconsummated item.
• Consumer must consume an item just once, that is,
  it cannot consume again an item it has already
  consumed in the previous iteration.
• Trouble arises when the Producer wants to put a
  new item in the buffer, but it is already full.
• The solution is for the Producer to go to sleep,
  to be awakened when the consumer has removed one
  or more items.

BY GEORGE KOUTSOGIANNAKIS
27
Multi-Threading

• Similarly, if the Consumer wants to remove an
  item from the buffer and sees that the buffer is
  empty, it goes to sleep until the Producer puts
  something in the buffer and wakes it up.
• The idea is to try to keep them both satisfied.
  Neither the producer nor the consumer should have
  to go to sleep.

28
Multi-Threading

• Trouble also arises if some of the rules
  established are not held.
• PCP W/O SYNCH.
• The CPP can loose the contents of the buffer if
  there in no synchronization.
• This can result in the producer trying to enter
  data into the buffer before the consumer reads
  what is there already ( Producer is faster than
  the consumer).
• Or the opposite can happen. The consumer can be
  reading the same data twice if the producer did
  not have a chance to update the buffer location
  (consumer is too fast)
• therefore access to shared data by concurrent
  threads must be carefully controlled otherwise
  incorrect results can occur.

BY GEORGE KOUTSOGIANNAKIS
29
Multi-Threading

• EXAMPLE SharedShell.java (15.5)

BY GEORGE KOUTSOGIANNAKIS
30
Multi-Threading

• Object h of HoldInteger class is the shared
  object
• Objects p and c are the producer/consumer
  threads.
• They have been instantiated with the constructors
  of the corresponding producer and consumer
  classes and they both reference h.
• h gets passed as an argument to the
  ProduceInteger class, which creates another
  instance variable (pHold) that references h.
• 10 values are passed to the setSharedInt method
  between randomly generated sleeps (range 0-3
  sec).
• Class consumeInteger creates instance variable
  cHold that also refers to h
• The getSharedInt method is called between random
  sleeps of the consumer thread. This continues as
  long as there is data available.
• The problem is that the values produced are not
  always consumed and that sometimes the same value
  is consumed twice.

BY GEORGE KOUTSOGIANNAKIS
31
Multi-Threading

• The problem can be solved by synchronizing the
  setSharedInt and getSharedInt methods.
• Example SharedCell.java with synchronization.

Witeabletrue
Writeablefalse
BY GEORGE KOUTSOGIANNAKIS
32
Multi-Threading

• Acquisition of lock/release of lock by producer
  object

This loop continues until pHold is notified that
writeable true -then setSharedInt changes the
value of sharedInt
BY GEORGE KOUTSOGIANNAKIS
33
Multi-Threading

• After the sharedInt changed value
  -writeablefalse and notify is invoked
• This causes the getSharedInt to get out of the
  wait state and return the sharedInt value.
• The cHold object works the same way.
• A circular buffer allows the producer to continue
  producing and deposit the production in a buffer.
• Daemon Threads are threads that run for the
  benefit of other threads ( example is the
  garbage collector)
• Runnable Interface
• used when we want to implement multithreading in
  a class that extends a class other than Thread.

BY GEORGE KOUTSOGIANNAKIS
34
Multi-Threading

• Code that controls the thread is in run() method.
• Thread is created by using the constructor
• public Thread(Runnable runnableobject) or
• by implementing the Runnable interface
• First write a class that implements the
  interface
• public MyRunnable implements Runnable public
  void run() //code
• You can instantiate objects of the new class and
  use them to control threads i.e. Runnable r new
  MyRunnable
• Two reasons for using Runnable
• we are not changing the nature of the thread
  itself. We are only changing the run() method.

BY GEORGE KOUTSOGIANNAKIS
35
Multi-Threading

• We can subclass something else
• Runnable can be the work to be done while the
  thread is the engine to do the work.
• Remember that by default the run() method of
  Thread class lloks for a Runnable and calls its
  run() method.
• Thread Groups
• Reasons for grouping Threads
• Organizing threads according to their tasks
• Suspending or resuming or stopping all the
  threads in a group at the same time.

BY GEORGE KOUTSOGIANNAKIS
36
Multi-Threading

• Use constructors
• public ThreadGroup(String nameOfThreadGroup) or
• public ThreadGroup(ThreadGroup nameOfParentThread,
  String nameOfChildThread)

BY GEORGE KOUTSOGIANNAKIS
