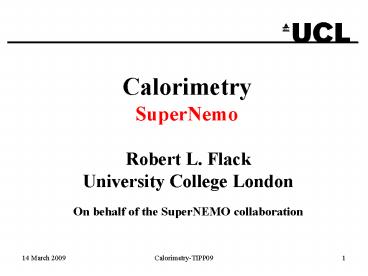

Calorimetry SuperNemo

1
CalorimetrySuperNemo

• Robert L. Flack
• University College London
• On behalf of the SuperNEMO collaboration

2
Overview

• SuperNEMO
• Neutrino mass
• Double beta decay
• The collaboration
• Results
• Scintillator blocks
• Scintillator bars
• The future
• Pre-production module
• Summary

3
What is the absolute mass scale? How far above
zero is the pattern?




Oscillation data
Cosmological data
4
Do neutrinos have Majorana masses?
Majorana masses for quarks and charged leptons
are forbidden due to charge conservation.
If neutrinos do have Majorana masses then they
must have a very different origin to quark and
charged lepton masses.
5
2?ßß decay

• Standard model process
• Valuable measurement in its own right
• Input into nuclear matrix element (NME)
  calculations
• Accurate estimates of NMEs are crucial in the
  analysis of 0?ßß decay data.

6
0?ßß decay

• - Beyond SM Total lepton number
• violation
• - Most sensitive way to establish
• Majorana/Dirac nature of neutrino
• - Most sensitive way to measure
• absolute ? mass in a lab environment
• (for Majorana ?s)
• - Possible access to ? mass hierarchy
• and Majorana CP-violation phases
• Link to matter-antimatter asymmetry
  (leptogenesis).

7
SuperNEMO simulations and physics reach
Se82
Conservative scenario
Nd150
Sensitivity
82Se T1/2(0n) (1-2) 1026 yr depending on final
mass, background and efficiency ltmngt ? 0.06 0.1
eV (includes uncertainty in T1/2) MEDEX07
NME 150Nd T1/2(0n) 5 1025 yr ltmngt ? 0.045 eV
(but deformation not taken into account)
8
Calorimeter RD at SuperNEMO
by Matthew Kauer
Good energy resolution is a must!
M mass (g) e efficiency kC.L.
confidence level N Avogadro number t
time (y) NBkg background events
(keV-1.g-1.y-1) DE energy resolution (keV)
Even with ideal M, Nbkg, e ? 2n and 0n mix at
low DE
8 FWHM
12 FWHM
9
Calorimeter RD at SuperNEMO

• SuperNEMO 90 physicists, 12 countries
• currently on 3 year RD phase (ends late 09)

• RD on
• Isotope enrichment
• Drift cell tracker
• Software
• Calorimeter

UCL London CENBG Bordeaux, LAL Orsay INR Kiev,
ISMA Kharkov JINR Dubna Univ. Texas Austin
82Se (and/or 150Nd if enrichment possible) 100
- 200 kg 30 ? 10 mBq/kg 4 FWHM _at_ 3
MeV T1/2(0nbb) gt 1026 y ltmngt lt 0.04 - 0.11 eV
Isotope Isotope Mass M Efficiency e Internal
Bkgs Energy Resolution Sensitivity
10
SuperNEMO base design (Energy resolution 7)
Single sub-module with 5-7 kg of isotope
20 sub-modules for 100 kg of isotope
surrounded by water shielding
Foil
Total 40-60k geiger channels for tracking
10-20k PMTs
Shielding
Problem with the low radio-purity of the glass of
the PMTs
11
Alternative design using scintillator bars
(Energy resolution 10)

• To overcome the radio-purity problem the number
  of PMTs is halved and they are situated away from
  the main detector volume.
• Only 7,600 3? or 5? instead of 15,000 8? in
  baseline.
• Other advantages are
• Much more compact 19 m2 floor area will
  accommodate 100 kg of isotope (20 mg/cm2)
• External walls as active shielding by
  anti-coincidences
• Reduced cost of PMTs 8.5M - baseline, 1.25M -
  bars (if 3)
• More options for external bkg suppression, TOF
  can be relaxed (possibly). Hence may try smaller
  scintillator-foil gap ? higher efficiency

Active shielding (10cm)
Foil
Bars (2.5cm)
Active shielding
12
Programme followed for Calorimeter RD

• Energy resolution is a combination of energy
  losses in foil and calorimeter DE/E
• Two routes pursued
• 8? PMT plastic block
• 2m plastic scintillator bars.
• PMTs
• Working closely with Hamamatsu
• Real breakthrough in high-QE PMTs of 43 QE
• First large (8?) high-QE Hamamatsu PMT was
  delivered to UCL for testing last year
• Involvement in ultra-low background PMT
  development.
• Enhanced specular reflectors available, 98
  reflectivity instead of usual 93.
• Decision on calorimeter design in June 2009.

13
Calorimeter RD at SuperNEMO
Significant improvements on PM QE!
by Matthew Kauer
14
Matthew Kauer
8? Hamamatsu SBA Characterization
33 QE (eventually UBA 45) 8 dynode
chain linearity gt 3000 Npe
15
Excellent first result with plastic
scintillator Using 207Bi source
by Matthew Kauer
976keV
DE/E 6.5 at 1 MeV ? 3.8 at 3 MeV
207Bi conversion electron source
BC404 scintillator wrapped in Teflon
Hamamatsu high-QE PMT
16
More realistic setup Optical contact
Matthew Kauer
Point-to-point 25.5 cm Side-to-side 22
cm Min depth 10 cm Max depth 18
cm Surface area 420 cm2
EJ200 BC408
Glycerol
Containment Ring
Cargille silica fluid reacts with the PVT!
Hamamatsu R5912-MOD Super-Bialkali 8 Dynodes
Can try 2-propanol R-index 1.37 _at_ 400nm
17
8? PMT _at_ 1650 V 25.5x22x10cm HexEJ200BC408 ESR
sides, Mylar face, Glycerol coupling fluid
Tested hexagonal and cylindrical shape and got
similar results
For mechanical reasons we will use hexagonal
18
Matthew Kauer
Tested using 90Sr source _at_ 1MeV
7.6 !!
19
Scintillator bars

• Scintillator bars from ELJEN, Texas
• EJ-200 (analogue of BC408)
• 200cm length x 10cm width, tapered at ends to
  6.5cm width to fit 3 PMTs at 45 angle
• 3? Hamamatsu SBA-select tubes ( 40 QE)
• Wrapped ReflecTech ESR
• Thickness 100µm
• Surface density 11.9mg/cm2
• 15 - 20 keV loss in ESR

20
Scintillator bars
21
Laboratory setup
Plastic tube acts as guide for the ESR pipe
wrapping inside
Holes to introduce the radioactive source
22
Tests of mechanical structure and optical contact
of the PMTs in differing orientations
23
Summary

• SuperNEMO 3 year Design Study nearly finished
• For the baseline
• PVT blocks with 8? PMTs
• 40 High-QE PMTs
• 98 specular reflectors
• 10K photons/MeV scintillator (low Z)
• Unprecedented resolution for low Z scintillator
  (7 FWHM 1MeV)
• Alternative design using 2m scintillator bars
• 10 resolution
• 450 ps timing resolution,
• want to reduce this 250ps
• We will achieve the target sensitivity of 50-100
  meV

24
Backup slides
25
Schedule Summary
2014
NEMO3 Running
SuperNEMO Design Study

BiPo1 Canfranc/LSM

BiPo installation

BiPo running _at_ Canfranc
SuperNEMO 1st module construction
Preparation of new LSM site
construction of 20 modules
1-5 SuperNEMO modules running at Canfranc
Running full detector in 2014 Target sensitivity
(0.05-0.1 eV) in 2016
SuperNEMO modules installation at new LSM
26
Choice of Isotope

• Criteria of choice
• High Qbb value
• Phase space G0n
• 2nbb half-life
• natural abundance
• enrichment possibilities.

Purification of 4kg of 82Se underway (INL,
US). Enrichment of 150Nd possible.
82Se obtained by centrifugation. Impossible for
150Nd, only laser enrichment.
27
Qßß for some isotopes
Q-values 48Ca, 4.27MeV 150Nd, 3.37MeV 100Mo,
3.03MeV 82Se, 3.00MeV 136Xe, 2.48MeV 76Ge, 2.04MeV
28
ßß decay is about background suppression
Background.
Natural radioactivity T1/2(238U, 232Th) 1010
yr T1/2(0nbb) gt 1025 yr 238U and 232Th produce
214Bi (Qb 3.27 MeV) and 208Tl(Qb 4.99
MeV) Radon! Cosmogenic activitity Underground
is a must Due to tracking, for SuperNEMO the
main focus is on source (foil) purity. Must be
super-duper-ultra low lt 10 mBq/kg! (For reference
humans 10-100 Bq/kg

typical materials 1Bq/kg) But how to
measure these levels?!


29
From NEMO-3 to SuperNEMO
M ? e ? Tobs
NA
T1/2 (bb0n) gt ln 2 ?
?
N90
A
18
30
efficiency ?
30
Choice of site

• Canfranc
• 2500 m.w.e
• LS Modane
• 4800 m.w.e
• Boulby
• 2800 m.w.e

Boulby
Canfranc
31
SuperNEMO preliminary design
Single module (baseline design)
Planar geometry. 20 modules for 100 kg
Source (40 mg/cm2) 12m2
, tracking volume (2-3k Geiger channels).
calorimeter (0.5-1k ch)
Total 40-60k geiger channels
for tracking 10-20k PMTs (3k if
scintillator bars design)
4 m
1 m
5 m
Top view
Side view
32
Calorimeter RD

• Energy resolution is a combination of energy
  losses in foil and calorimeter DE/E
• Goal 7-8/vE ? 4 at 3 MeV (82Se Qbb)
• Studies
• Material organic (plastic or liquid)
• Geometry and shape (block, bar)
• Size
• Reflective coating
• PMT
• High QE
• Ultra-low background

Factor of 2 compared to NEMO3!
33
Quick Comment on Radio-purity
by Matthew Kauer
Barium salt used to make glass is chemically same
as Radium Ra226 ? Rn222 into the tracker volume ?
Bi214 (Qb 3.3MeV)
