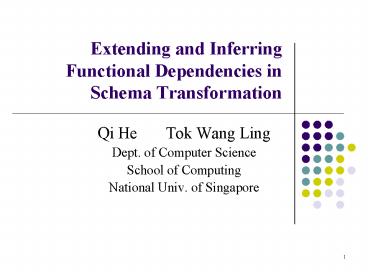

Extending and Inferring Functional Dependencies
in Schema Transformation

• Qi He Tok Wang Ling
• Dept. of Computer Science
• School of Computing
• National Univ. of Singapore

2
Agenda

• Background
• Schematic discrepancy and schema transformation
• Qualified FD
• Inference rules of qualified FD
• Propagation rules of qualified FD during schema
  transformation
• Related work
• Conclusion

3
Motivation

• Functional dependencies (FDs) are useful
• Ensure the integrity of data in insertion,
  deletion and update
• Check lossless join decomposition
• Normalize relations
• Optimize queries

4
Issues on FDs in Individual DB

• Inference rules of FDs in fixed relations
• Derivation of dependencies on views from those on
  original relations
• How about in multidatabase systems?

5
FDs in Multidatabase

• Multidatabase is distributed (i.e., data may be
  divided and stored in several databases) and
  heterogeneous (i.e., similar data may be
  represented in quite different forms in component
  databases)
• The distribution and heterogeneity of
  multidatabase require
• Complex schema transformations rather than the
  relational algebra to integrate database schemas
• A flexible expression of FDs to represent
  dependencies in component databases
• Consequently, the expression and derivation of
  FDs in multidatabase are more difficult than in
  individual databases

6
Agenda

• Background
• Schematic discrepancy and schema transformation
• Qualified FD
• Inference rules of qualified FD
• Propagation rules of qualified FD during schema
  transformation
• Related work
• Conclusion

7
Schematic discrepancy

• A semantic heterogeneity among component schemas
• Schematic discrepancy occurs when one DBs
  attribute values correspond to schema labels
  (attribute names or relation names) in others
• See next page for an example

8
DB1 Supply  DB1 Supply  DB1 Supply  DB1 Supply
product supplier month price
p1 s1 Jan 100
p1 s1 Feb 105

DB2 Supply  DB2 Supply  DB2 Supply  DB2 Supply  DB2 Supply  DB2 Supply
product supplier Jan Feb Dec
p1 s1 100 105 97
p1 s2 99 107 110

fold(Supply,month,price)
unfold(Supply,month,price)
split(Supply,supplier)
unite(s1,,sn,supplier)
split(Supply,supplier)
unite(s1,,sn,supplier)
DB3 s1 DB3 s1 DB3 s1
product month price
p1 Jan 100
p1 Feb 105

s2
product month price
p1 Jan 99
p1 Feb 107


DB4 s1 DB4 s1 DB4 s1 DB4 s1 DB4 s1
product Jan Feb Dec
p1 100 105 97

s2
product Jan Feb Dec
p1 99 107 110


unfold(si,month,price)
fold(si,month,price) (i 1,2, )

• Supplier names modeled as attribute values in DB1
  and DB2, but relation names in DB3 and DB4
• Months modeled as attribute values in DB1 and
  DB3, but attribute names in DB2 and DB4

9
Schematic Discrepant Transformation

• We call a transformation between schematic
  discrepant schemas schematic discrepant
  transformation
• A schematic discrepant transformation can be
  implemented by a sequence of restructuring
  operators (unfold, fold, split and unite 5).
• Unfold transforms attribute values to attribute
  names, and fold does the converse.
• Split transforms attribute values to relation
  names, and unite does the converse.

5 L. V. S. Lakshmanan, F. Sadri, and S. N.
Subramanian. On efficiently implementing
schemaSQL on SQL database system. VLDB, 1999,
471-482.
10
Agenda

• Background
• Schematic discrepancy and schema transformation
• Qualified FD
• Inference rules of qualified FD
• Propagation rules of qualified FD during schema
  transformation
• Related work
• Conclusion

11
Qualified FD (E.g.)
Jan
product supplier price
Feb
product supplier price

• Constraint in the 1st quarter, the products
  prices supplied by supplier s1 are uniquely
  determined by the products.
• That is, in the union R ?Mi?Jan, Feb,
  Mar(?supplier s1Mi), the FD product?price
  holds.
• We represent this constraint as a qualified FD as
  follows

the dependency holds in the union of the
relations Jan, Feb and Mar
the dependency holds when supplier is s1
Jan, Feb, Mar(product, supplierss1 ? price)
called qualification attribute
12
Qualified FD

• FDs holding over a set of relations or a set of
  horizontal partitions of relations
• If a qualified FD only contains regular
  attributes and holds in one relation, then it is
  just a conventional FD.
• Flexible to represent dependencies in distributed
  and heterogeneous schemas

13
Inference rules of qualified FDs

• Let F be a set of qualified FDs and f be a
  qualified FD for the schemas of a set of
  relations R . We say F implies f, if every
  instance of R that satisfies F also satisfies f.
• We define F to be set of qualified FDs implied
  by F.
• Inference rules will allow us to deduce all the
  true qualified FDs for R , i.e., those in F

14
Inference Rules

• Given X a mixed set of regular and qualification
  attributes, Y and Z sets of regular attributes, A
  an attribute, R a set of relations, R1 ? R, D1?
  D? dom(A), we have
• (A1) Partition on relation set. If R (X?Y) holds,
  then R1 (X?Y) holds.
• (A2) Composition on relation set. If Ri,
  Rj(X?Y) holds for any Ri, Rj ? R, then R (X?Y)
  holds.
• (A3) Partition on qualification. If R (AsD, X?Y)
  holds, then R (AsD1, X?Y) holds.
• (A4) Composition on qualification. If R
  (A?ai,aj, X?Y) holds for any ai, aj?D, then R
  (A?D, X?Y) holds.
• (A5) Single-valued qualification. If a ? dom(A),
  then R (Asa?A) holds.
• (A6) Assembly. If R (Asa, X?Y) holds for each
  a ? D, then R (AsD, A, X?Y) holds.

15
Inference Rules (cont.)

• (A7) Reflexivity. If Y ? X, then R (X?Y) holds.
• (A8) Augmentation. If R (X?Y) holds, then R (X,
  Z?Y, Z).
• (A9) Transitivity. If R (X?Y) and R (X1, Y?Z)
  hold, where X1 is a set (possibly an empty set)
  of some qualification attributes in X, then R
  (X?Z) holds.
• (A10) Dummy qualification. R (X?Y) iff R
  (Asdom(A), X?Y) holds.
• A useful rule derived from the above inference
  rules
• (A11) Disassembly. R (A, X?Y) holds iff R
  (Asa, X?Y) holds for each a ? dom(A)

16
Inference Rules

• Rule A5 and A7 give trivial dependencies
• Rule A7, A8 and A9 extend Armstrong's Axiom, the
  inference rules for FDs
• The rules are sound and complete to infer
  qualified FDs in fixed relations

17
Inference Rule of Disassembly (E.g.)
Supply Supply
product supplier month price price
Original FD product, supplier,
month?price equivalent to product,
supplierssi, month?price for each
si?dom(supplier) equivalent to product,
supplierssi, monthsmj?price for each
si?dom(supplier) and mj ?dom(month)
18
Agenda

• Background
• Schematic discrepancy and schema transformation
• Qualified FD
• Inference rules of qualified FD
• Propagation rules of qualified FD during schema
  transformation
• Related work
• Conclusion

19
Propagation Rules

• Let R be a set of original relations, and S be
  a set of relations transformed from R by
  applying some restructuring operator (i.e.,
  unfold, fold, split or unite).
• From a given set of qualified FDs F for R ,
  propagation rules allow us to deduce the
  qualified FDs for S.
• We give the rules for split/unite and unfold/fold
  in a pairwise way.

20
Propagation Rules for split/unite
b1(A1, , An)
split(R, B)
where dom(B) b1, , bm
R(A1, , An, B)

unite(b1,, bm, B).
bm(A1, , An)
Let X be a mixed set of regular and qualification
attributes from A1, , An, Y ? A1, , An be a
set of regular attributes, and R ? b1, , bm be
a set of relation names. We have the following
rule (P1) R(BsR , X?Y) holds iff R (X?Y)
holds.
21
Propagation Rules for split/unite

• The qualification on the values of attribute B in
  a qualified FD becomes the qualification on the
  relation set over which the inferred qualified FD
  holds, as B values become relation names in the
  transformed schemas.
• unite is a qualified FD preserving
  transformation, but split is not
• The FD R(X ? B) will not be transformed to any
  dependency in application of split

22
Propagation Rules for unfold/fold
unfold(Ri, B, C) for each i 1, , k
R1(A1, , An, B, C)
S1(A1, , An, b1, , bm)


fold(Si, B, C) for each i 1, , k
Sk(A1, , An, b1, , bm)
Rk(A1, , An, B, C)
where dom(B) b1, , bm, and the values of
attributes bi are from dom(C)
Let X be a mixed set of regular and qualification
attributes from A1, , An, Y ? A1, , An be a
set of regular attributes. Let R ?R1, , Rk and
S ? S1, , Sk, such that the relations of S
are transformed from R. We have the following
rules (P2) R (Bsbi, X?C) holds iff S(X?bi)
holds. (P3) R (Bsbi, X, C?Y) holds iff S(X,
bi?Y) holds. (P4) R (X?Y) holds iff S(X?Y)
holds.
23
Propagation Rules for unfold/fold

• The rules are based on a set of unfold/fold
  operators because some qualified FDs may hold
  over a set of relations which are transformed
  together by unfold/fold operations.
• Rule P2 and P3 indicate that the qualification on
  the value of attribute B in a qualified FD
  becomes the qualification on the attribute name
  in the inferred qualified FD.
• Both fold and unfold are not qualified FD
  preserving transformations.

24
Derive Qualified FDs in Schema Transformation

• Let R be a set of original relations, and S be
  a set of relations transformed from R by
  applying a sequence of restructuring operators
• From a given set of qualified FDs F for R , we
  deduce the qualified FDs for S, using both
  inference rules and propagation rules

25
Derive Qualified FDs in Schema Transformation
(E.g.)
fold(si,month,price) (i1,2,)
unite(s1,,sn,supplier)
DB3 s1 DB3 s1 DB3 s1
product month price
s2
product month price

DB4 s1 DB4 s1 DB4 s1 DB4 s1 DB4 s1
product Jan Feb Dec
s2
product Jan Feb Dec

DB1 Supply  DB1 Supply  DB1 Supply  DB1 Supply
product supplier month price
Given qualified FDs in DB4 si(product ?
Jan,,Dec) for each si s1, s2,,sn After fold,
in DB3, we get (by propagation rule
P2) si(product, monthsmj ? price) for each si
s1, s2,,sn and mj Jan, , Dec then (by
disassembly rule A11) si(product, month ?
price) After unite, in DB1, we get (by
propagation rule P1) Supply(product, month,
supplierssi ? price) for each si s1,
s2,,sn then (by disassembly rule A11)
Supply(product, month, supplier ? price)
26
Derive Qualified FDs in Schema Transformation
(E.g.)

• In the above example, the qualified FD on the
  original relations are transformed to an
  equivalent qualified FD on the transformed
  relation.
• Directly applying the inference rules and
  propagation rules need the computation of
  qualified FD closure, which take much time.
• Instead, in the paper, we gave some derived rules
  to propagate qualified FDs in schema
  transformation.

27
Related work (1)

• An extension to FDs in the database design world
  are FDs partially holding in a relation, in the
  sense that only some tuples, called exceptions,
  break the dependencies. These dependencies
  include weak FDs 7, afunctional dependencies
  3 and partial FDs 2.

2 F. Berzal, J. C. Cubero, F. Cuenca, J. M.
Medina. Relational decomposition through partial
functional dependencies. Data Knowledge
Engineering 43(2), 2002, 207-234. 3 P. De Bra
and J. Paredaens. Conditional dependencies for
horizontal decompositions. ICALP, 1983. 7 Tok
Wang Ling. Extending classical functional
dependencies for physical database design
(lecture notes), 2001. http//www.comp.nus.edu.sg/
lingtw/cs4221/extended.fds.pdf
28
Related work (1)

• Differences between weak FD (or some other
  similar dependencies) and qualified FD
• A weak FD predicates that some tuples (but dont
  know which tuples) in a relation would violate
  the dependency, while a qualified FD indicates
  exactly what kind of tuples satisfy the
  dependency.
• Those dependencies are specified on individual
  relations, while qualified FDs may hold over a
  set of relations.
• We are not aware of any axiomatization for weak
  FD, afunctional dependency or partial FD.

29
Related work (2)

• In individual databases, the issue of inferring
  FDs on views from FDs on original relations has
  been introduced in 1, 4.
• They did not consider schematic discrepancy in
  schema transformation
• Our work complements existing work based on the
  relational algebra

1 S. Abiteboul, R. Hull, and V. Vianu.
Foundations of Databases. Addison-Wesley, 1995,
173-187, 216-235. 4 G. Gottlob. Computing
covers for embedded functional dependencies.
SIGMOD, 1987.
30
Related work (3)

• Some work 6, 8, 9 has been done on the
  derivation of constraints in schema integration
  based on ER or OO model.
• They did not consider schematic discrepancy in
  schema integration
• They did not prove the completeness of their
  methods, while we did.

6 Mong Li Lee and Tok Wang Ling. Resolving
constraint conflicts in the integration of ER
schemas. ER, 1997, 394-407. 8 M. P. Reddy, B.
E. Prasad, and A. Gupta. Formulating global
integrity constraints during derivation of global
schema. Data Knowledge Engineering, 1995,
241-268 9 M. W. W. Vermeer and P. M. G. Apers.
The role of integrity constraints in database
interoperation. VLDB, 1996, 425-435
31
Conclusion

• Proposed qualified FD to represent dependencies
  for distributed and heterogeneous schemas in a
  multidatabase system
• Found a set of inference rules and propagation
  rules to derive qualified FDs in schematic
  discrepant transformation
• The rules are sound and complete to derive some
  classes (not all) of qualified FDs in schema
  transformation

32
Reference

• 1 S. Abiteboul, R. Hull, and V. Vianu.
  Foundations of Databases. Addison-Wesley, 1995,
  173-187, 216-235.
• 2 F. Berzal, J. C. Cubero, F. Cuenca, J. M.
  Medina. Relational decomposition through partial
  functional dependencies. Data Knowledge
  Engineering 43(2), 2002, 207-234.
• 3 P. De Bra and J. Paredaens. Conditional
  dependencies for horizontal decompositions.
  ICALP, 1983.
• 4 G. Gottlob. Computing covers for embedded
  functional dependencies. SIGMOD, 1987.
• 5 L. V. S. Lakshmanan, F. Sadri, and S. N.
  Subramanian. On efficiently implementing
  schemaSQL on SQL database system. VLDB, 1999,
  471-482.
• 6 Mong Li Lee and Tok Wang Ling. Resolving
  constraint conflicts in the integration of ER
  schemas. ER, 1997, 394-407.
• 7 Tok Wang Ling. Extending classical functional
  dependencies for physical database design
  (lecture notes), 2001. http//www.comp.nus.edu.sg/
  lingtw/cs4221/extended.fds.pdf
• 8 M. P. Reddy, B. E. Prasad, and A. Gupta.
  Formulating global integrity constraints during
  derivation of global schema. Data Knowledge
  Engineering, 1995, 241-268
• 9 M. W. W. Vermeer and P. M. G. Apers. The role
  of integrity constraints in database
  interoperation. VLDB, 1996, 425-435
