Dancing with maths

1

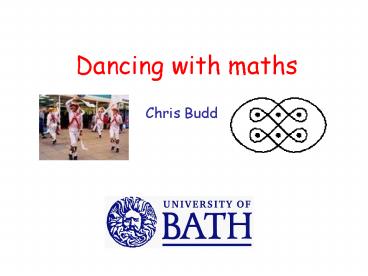

Dancing with maths Chris Budd
2
What have the following got in common?
3
A snowflake
4
A starfish
5
Tilbury Fort
6
Escher drawing
7
Folk dancing
8
They all have symmetry
Symmetry is the basis of all patterns
In art, music, bell ringing, knitting, dancing,
crystals, elementary particles and nature
9
Some types of symmetry
Reflexion
Rotation
Translation
10
Something is symmetric if it is not changed by
one of these operations
Lots of good artistic patterns have this property
11
A square is very symmetric how Many symmetries
does it have?
12
8
4 Rotation symmetries 4 Reflexion symmetries
13
a
Rotation
Reflexion
b
Reflexion
c
14
Simplest symmetry .. Do nothing
Call this symmetry e
15
Can combine symmetries to get new ones
a rotation of 90 degrees aa rotation
of 180 degrees aaa rotation of 270
degrees aaaa rotation of 360 degrees
e
aaaa
16
Can combine reflexions with themselves
bb e cc e dd e ff e
What happens if we combine a reflexion with a
rotation? or two different reflexions?
17
Reflexion and rotation b a ?
ba c
Reflexion and rotation reflexion
18
So what is ab
ab d
19
Now combine two reflexions bc ?
Remember This!!!!!
bc a
20
Some other combinations
cb aaa
db abb ae a
21
Lets start dancing!
My name is Chris. I go to a dance with my friends
Andrew, Bryony and Daphne
A B C D
22
We make ABCD four corners of a square
Key Fact
The symmetries of the square correspond to
different dance moves
23
Symmetry
b
Reflexion
Dance move
b
A B C D A C B D
An inner-twiddle or dos-e-dos
24
Symmetry
c
Reflexion
Dance move
c
A B C D B A D C
An outer-twiddle or swing
25
Now for the clever bit!
In the algebra of symmetries
Did you remember this?
bc a
Therefore
bc bc bc bc aaaa e
26
So what?????
This corresponds to a dance called a Reel of Four
or a Hey
Lets do the dance
27
ABCD ACBD CADB CDAB DCBA DBCA BDAC BADC ABCD
b c b c b c b c
28
Now its your turn!!
29
Another dance
d
ABCD CDAB
d b a
d b d b d b d b aaaa e
30
ABCD CDAB CADB DBCA DCBA BADC BDAC ACBD ABCD
d b d b d b d b
31
We see the same patterns in knitting and in bell
ringing
And many other places
How many can you find?
