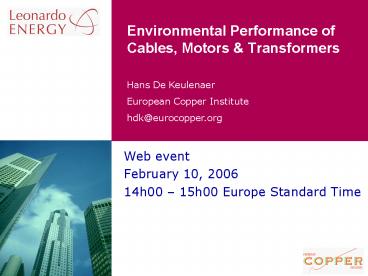

Environmental Performance of Cables, Motors

1
Environmental Performance of Cables, Motors
Transformers
Hans De Keulenaer European Copper
Institute hdk_at_eurocopper.org

• Web event
• February 10, 2006
• 14h00 15h00 Europe Standard Time

2
Content

• Introduction to Leonardo ENERGY
• The Ws of the toolbox
• Examples
• Demonstration
• How to work with the toolbox

3
What is Leonardo ENERGY?

• A partnership between industry academia on
  sustainable electrical energy
• Outreach
• Training professional development
• Advocacy
• Energy policy regulation

4
Leonardo ENERGY campaigns

• Distributed generation renewables
• Efficiency eco-design
• Electric motors
• Green building

• Home of the future
• Lighting
• Policy finance
• Power Quality
• Transformers
• Transport

Website www.leonardo-energy.org
5
Leonardo ENERGY activities

• Application notes
• Articles
• Briefing papers
• Direct (e)mail
• Minute lectures
• Polls
• Press articles
• Reports

• Seminars
• Software Tools
• Surveys
• Webcasts
• Web events
• Workshops

6
Content

• Introduction to Leonardo ENERGY
• The Ws of the toolbox
• Examples
• Demonstration
• How to work with the toolbox

7
Why focus on (electrical) energy?

• Environmental impacts from energy use
• To atmosphere
• Sulphur emissions to atmosphere 85
• Carbon-dioxide 78
• Particulate emissions 45
• Lead emissions 41
• Non-methane hydrocarbon 40
• Electricity consumes 40 of primary energy

8
Reducing the environmental impact of electricity

• 2 approaches
• Clean generation efficient conversion
• Renewables
• Combined-cycle
• Efficient use
• Reduce the amount of electricity needed to
  provide an energy service

9
Why an ecodesign toolbox?

• For material producers
• Define environmental performance of active
  materials in the use phase
• less is not always more
• For equipment manufacturers
• Marketing tool for high efficiency
• Environmental declaration
• For energy users
• Declaration of improved environmental performance
• For policy makers
• Environmental impact of policy measures on
  efficiency
• Include externalities into policy making

10
Why now?
Availability of good LCI material databases
Availability of tools allowingparametrized LCA
Ecodesign toolfor parametrizedLCA of
equipmentfamilies
Experience with LCA forelectrical equipment
Electrical equipment catalogswith large
varieties
11
Ecodesign toolbox - how

• 90 of environmental impact of electrical
  equipment is caused by electricity use
• The remaining part is mainly caused by the
  extraction, production and transformation of
  materials
• Life-cycle assessment for equipment can be
  simplified, based on good data for
• Environmental profile for materials
• Equipment lifetime, load, efficiency
• Environmental profile of electricity

12
Which life-cycle stages?

• Production
• Only material use
• Use phase
• Only electricity use, based on European grid mix
• End-of-life
• Credit for materials re-used

13
Which impact categories?

• materials use
• energy use
• climate change
• photochemical oxidant formation
• acidification
• eutrophication
• ozone layer depletion
• end-of-life waste
• Not included toxicity, physical effects (noise,
  vibration, electromagnetic fields)

14
Which equipment types?

• Power cable
• Overhead lines
• Transformers
• Dry-type
• Oil-cooled
• Motors

15
Next steps

• Generic equipment model
• Bill-of-materials
• Losses or energy use in kWh(no load modelling)
• Including thermal equipment
• How to handle power electronics?
• Generic generation model
• Major types of conventional generation
• Wind, ocean, and photovoltaics
• Not biomass

16
Generation, conversion and end-use
generation
equipment
?
energy
primary
energy
carrier
conversion loss
e.g. power stations, wind generators
end-use
conversion
equipment
equipment
energy
energy
energy
energy
input
service
output
input
energy
loss
e.g. transformers, motors, cables
e.g. appliances, pumps, lighting systems
17
Modelling
Utilization
Manufacturing
End-of-Life
18
Load modelling

• Transformers
• Motors
• Cables

19
Content

• Introduction to Leonardo ENERGY
• The Ws of the toolbox
• Examples
• Demonstration
• How to work with the toolbox

20
Example 1 amorphous iron transformer100 kVA
10 loaded
21
Impact - numerical
22
Impact - graphical
23
Example 2 High Efficiency Motors1.5 kW 33
loaded
24
Impact - numerical
25
Impact - graphical
26
Content

• Introduction to Leonardo ENERGY
• The Ws of the toolbox
• Examples
• Demonstration
• How to work with the toolbox

27
Content

• Introduction to Leonardo ENERGY
• The Ws of the toolbox
• Examples
• Demonstration
• How to work with the toolbox

28
Practical

• I-report models available on a royalty-free
  licence basis
• E-mail request to hdk_at_eurocopper.org
• Complete licencing form
• Receive package
• Publisher models available on a royalty-bearing
  licence basis
• E-mail request to hdk_at_eurocopper.org
• Order licence
• Receive access to intranet with tools, models
  (including future models) and knowledge inventory

29
