Data Mining Approaches for Network Intrusion Detection

1

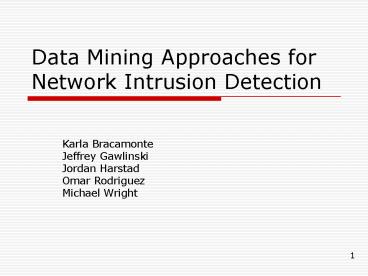

Data Mining Approaches for Network Intrusion
Detection

• Karla Bracamonte
• Jeffrey Gawlinski
• Jordan Harstad
• Omar Rodriguez
• Michael Wright

2
Intrusion Detection Current

• Detection is best if it occurs during the
  scanning step
• Real-time intrusion detection
• Pros Scan network traffic on the fly looking for
  well known scan patterns
• Cons Tuned specifically to detect known service
  level network attacks
• Intrusion detection should follow a proactive
  approach

3
VisualizationPresenting a Graphical Summary of
the Data

• Communication- presenting a graphical summery of
  the data
• PROS Possible to communicate the most important
  aspects of collected data
• CONS Not all information can be communicated
  visually it is limited by the complexity that
  the human eye can appreciate.

4
VisualizationPresenting a Graphical Summary of
the Data

• Visual Techniques
• Scatterplots
• Projection Matrices
• Coplots
• Parallel Coordinates
• Etc

5
VisualizationPresenting a Graphical Summary of
the Data

• Distortion Methods minimize a scope of data
  which allows a certain data set to be studied
  without loss of entire perspective.
• Interactive Methods viewing output dynamically
  through the use of a possible UI to project,
  zoom, and manipulate the data on demand.

6
VisualizationPresenting a Graphical Summary of
the Data

• Audio Data Mining uses visual techniques by
  changing signal pitches into graphs to recognize
  unique patterns.
• Help find a pattern of early warning signs of
  human anger through telephone communication.

7
Data Summarization

• Data Summarization is an important data analysis
  task in data warehouse and online analytic
  processing, another used term for data
  summarization is summary statistics

8
Data Summarization Offline Data Mining and
Importance of Statistics

• For example, networks with high traffic are faced
  with a larger amount of data to analyze.
  Nevertheless, with the use of data summarization,
  data may be analyzed pattern by pattern,
  detecting abnormal behavior and/or results

9
Data Summarization Offline Data Mining and
Importance of Statistics

• Summary statistics are quantities, such as the
  mean and standard deviation that capture various
  characteristics of a potential large set of
  values with a single number or small set of
  numbers
• Indeed, for many people, summary statistics are
  the most visible manifestation of statistics

10
Data Summarization Offline Data Mining and
Importance of Statistics

• Frequencies and Mode
• Given a set of unordered categorical values,
  there is not much that can be done to further
  characterize the values except to compute the
  frequency with which each value occurs for a
  particular set of data
• Percentiles
• For ordered data, it is more useful to consider
  the percentiles of a set of values

11
Data SummarizationOffline Data Mining and
Importance of Statistics

• Measures of Location Mean and Median
• For continues data, two of the most widely used
  summary statistics are the mean and median, which
  are measures of the location of the set of values

• Measures of Spread Range and Variance
• Another set of commonly used summary statistics
  for continuous data are those that measure the
  dispersion or spread of a set of values. Such
  measures indicate if the attribute values are
  widely spread out or if they are rarely
  concentrated around a single point such as the
  mean.

12
Data SummarizationOffline Data Mining and
Importance of Statistics

• Multivariate Summary Statistics
• Measures of location for data that consists of
  several attributes (multivariate data) can be
  obtained by computing the mean or median
  separately for each attribute.
• Other Ways to Summarize Data
• skeweness

13
Data Summarization Offline Data Mining and
Importance of Statistics

• off-line processing is a reasonable solution.
• Off-line processing provides the techniques for
  broader analysis of network traffic.

14
Network Intelligence Gathering

• Foot Printing
• Administrative, technical, and billing contacts,
  which include employee names, email addresses,
  and phone fax numbers
• IP address range
• DNS servers
• Mail servers

15
Network Intelligence Gathering

• Enumeration
• process of extracting valid accounts or exported
  resource names from systems
• Scanning
• the art of detecting which systems are alive and
  reachable via the Internet, and what services
  they offer, using techniques such as ping sweeps,
  port scans, and operating system identification

16
Network Based Attacks

• Attack on availability
• Making a network unavailable or unusable to a
  user or a group of users
• Attack on confidentiality-
• Many attacks are on that of personal data.
  Whether it is a name, address, email, social
  security number or credit card number, many
  network based attacks are solely there for the
  purpose of gathering confidential and/or personal
  information on an individual, group of
  individuals, company or object.

17
Network Based Attacks

• Attack on integrity-
• It is possible for the data to be intercepted all
  together and thus never reach the intended
  recipient.
• Attack on authenticity-
• Modifies an original data cluster and then passes
  it on as unmodified.

18
Network Based Attacks

• Attack on access control-
• This method attacks a legitimate machine within a
  secure network in hopes to access network and
  server resources.
• Attack on privacy
• An attack on privacy is mainly used for the
  recording of data in some way or another.
  Whether it is tracking specific website usage,
  online video game play, email addresses this
  method is used by attackers to exploit an
  individuals activity on a computer.

19
Network Based Attacks

• Prevention
• Firewalls
• Virus Scanners
• Common Sense

20
Known FlagsData Mining for Security

• Suspicious red flags are not conclusive proof
  that fraud has been committed.
• Simply one tool of many for preventative
  measures.
• Not a single catch all rule through data mining-
  should not be solely relied upon.
• Consistent pattern is a must for possible fraud
  identification.

21
Known FlagsData Mining for Security

• Example telecommunications fraud
• Nodes represent different countries
• Lines represent international phone calls
• Unusually bright activity represents strange
  activity determined as fraud

22
Known FlagsData Mining for Security

• Example compromised credit card accounts-
• A distinct pattern usually involves a lost or
  stolen account to be swiped at a gas station. No
  gas is purchased only used to check status of
  account to see if active.
• Subsequent large jewelry and electronic purchases
  shortly follow.

23
Known FlagsData Mining for Security

• Example terrorist activity has not been
  countered as a result of data mining.
• It has no distinct pattern a terrorists profile
  is no clear definition.
• Large government (NSA) programs have made
  attempts in data mining for preventive measures
  without success.
• Total Information Awareness generated thousands
  of tips every month for over a year without a
  single lead into terrorist organizations

24
ClassificationPredicting the Category to Which a
Particular Record Belongs

• A major part of the classification process is the
  initial information gathering task.
• The idea behind this collection of data is that
  normal and abnormal patterns of occurrences can
  be differentiated from one another, and
  algorithms can then be created to detect such
  patterns.
• Once detected, said algorithms would then be able
  to flag suspicious events as abnormal in
  real-time, and alert the appropriate person(s) as
  to the potential intrusion(s).

25
ClassificationPredicting the Category to Which a
Particular Record Belongs

• There are several ways these algorithms can
  operate, and commonly they are implemented to run
  off of decision trees or simply a set of
  predefined rules that the system data must meet.

26
ClassificationPredicting the Category to Which a
Particular Record Belongs

• There are many different options available that
  employ decision trees. Some of these options
  include
• Classification and Regression Trees (CART)
• Chi Square Automatic Interaction Detection
  (CHAID)
• CART works by inducing two-way splits in a
  dataset, causing it to become segmented, whereas
  CHAID uses chi square tests to create splits in a
  dataset of variable size, also causing the data
  to become segmented.

27
ClassificationPredicting the Category to Which a
Particular Record Belongs

• Lee and Stolfo conducted several experiments
  pertaining to classification methods in their
  paper Data Mining Approaches for Intrusion
  Detection. The first of these experiments was
  on a set of sendmail system call data. This data
  consisted of sendmail traces, with the trace data
  consisting of two columns of integers.
• The traces contained within the data were
  classified as both normal and abnormal, where the
  normal constituted a trace of the sendmail
  daemon and a concatenation of several invocations
  of the sendmail program and the abnormal was
  composed of the following attacks
• Three traces of sunsendmailcp (sscp)
• Two traces of syslog-remote
• Two traces of syslog-local
• Two traces of decode
• One trace of sm5x
• One trace of sm565a

28
ClassificationPredicting the Category to Which a
Particular Record Belongs

• After this data was obtained, system call
  sequences had to be derived and labeled as normal
  or abnormal so that they could then be supplied
  to RIPPER, the rule learning program that was
  used to generate rules that predict whether or
  not a sequence is normal or abnormal. The
  Intrusion Detection system then followed a
  post-processing scheme to decide whether or not
  the current trace was an intrusion, using the
  RIPPER predictions.
• The logic here is that when there is an intrusion
  on the system, most of the adjacent system call
  sequences will be abnormal.

29
ClassificationPredicting the Category to Which a
Particular Record Belongs

• From the results it is important to notice that
  generally speaking, intrusion traces will create
  much larger abnormal regions than normal traces.
• Also note that the results show that the rules
  were generated can be applied to intrusion traces
  not included in the training dataset.
• This means that the rules for normal patterns
  can be used to detect anomalies.
• The rules from experiments C and D, on the other
  hand, represent the abnormal sequence patterns.
  These rules work very well for detecting types
  seen in the training data, but perform worse than
  A and B when it comes to detecting intrusions on
  traces that were not seen in the training data.
  The implication here is that the rule set for
  abnormal patterns performs well on predictable
  intrusions from things such as misuse or other
  repeatable events where good basis data can be
  used to generate the rules, but is unreliable
  when it comes to flagging new types of intrusions
  that may occur in the future.

30
ClassificationPredicting the Category to Which a
Particular Record Belongs

• The next approach that Lee and Stolfo attempted
  involved creating an anomaly detection routine
  using only normal traces for training data.
  Experiments were carried out to determine the
  normal correlation between system calls, i.e. the
  nth or the middle system calls in normal
  sequences of length n.
• Lee and Stolfo declared that improvement in
  accuracy can come from adding more features,
  rather than just system calls, into the models of
  program execution. Items such as the file
  structure and paths within that were traversed
  (directories and names of touched files) could be
  used to generate stronger rules.

31
ClassificationPredicting the Category to Which a
Particular Record Belongs

• Lee and Stolfo further examined network intrusion
  detection by monitoring network traffic directly
  using a packet capturing program, tcdump, to
  collect data.
• In conclusion, when the data is not designed
  specifically for security purposes (like in this
  case), it cannot be used to build a detection
  model without a certain amount of modifications
  (or pre-processing) being made. Due to all of
  the changes that must be taken care of, it goes
  without saying that one must have a lot of
  knowledge in the domain being tested, and as such
  the process is not easily automated. On the
  other hand, it is important to again note that by
  adding extra measures, the accuracy of the
  classification model can be improved.
