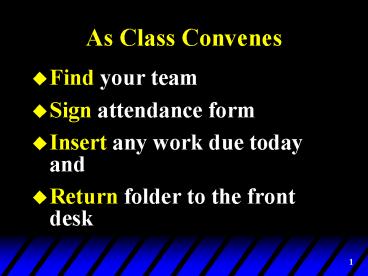

As Class Convenes

• Find your team
• Sign attendance form
• Insert any work due today and
• Return folder to the front desk

2
Session Agenda

• Evaluating Alternatives 40 min
• Working on Project(review of somenotebook
  work) 35 min

3
Learning Objective

• Achieve awareness of the differences between
  Relative Ratings and Absolute Ratings in
  completing Scoring Tables (Matrices)

4
Sample Scoring Table
5
Determining Ratings The Text Book Says

• Use relative comparisons
• Use a simple rating scale
• 1 much worse than reference
• to
• 5 much better than reference

6
Problems With Relative Rating

• Scale Compression
• if reference concept is the best relative to
  criterion 1, what rating values are available for
  criterion 1?
• only 1 (much worse), 2 (worse) maybe 3 (same)
• Not rigorous for non experts

7
In Some Cases We Can Do Better

• Use absolute instead of relative rating of
  concepts
• Use engineering science to predict the values of
  the criteria for the concepts

8
The Weighted Objectives Method 1

• List Design Objectives
• Rank-order the list
• Assign Relative weights to objectives
• Establish performance parameters or utility
  scores for each objective
• Calculate relative utility values for alternatives

9
Reference for Todays Material

• 1 N. Cross, Evaluating Alternatives, in
  Engineering Design Methods, Chichester, John
  Wiley and Sons, 1989, pp. 101-121.

10
1. List Design Objectives

• Decision requires criteria (objectives)
• Includes
• Technical factors
• Economic factors
• User requirements
• Safety requirements
• Etc.

11
2. Rank-order Objectives

• Individual Ordered set of note cards to
  indicate relative importance
• Team pair wise comparison matrix or table

12
Pairwise Comparison
13
Pairwise Comparison
14
Pairwise Comparison
15
Pairwise Comparison
16
2. Rank-ordering continued

• Order established
• The ordering is an ordinal scale
• Ordinal scales should not be used in arithmetical
  operations

17
3. Assign Relative Weightings to Objectives

• Use rank ordering to spread out along a 1 to 10
  scale
• Assign a fixed number of points, say 100) among
  the objectives
• Utilize an Objectives Tree

18
Example Objectives Tree
19
3. Assign Relative Weightings Continued

• The relative weightings are an interval value
  scale
• Interval value scales can be used in arithmetic
  operations

20
4. Establish Utility Scores for Objectives

• Need to convert objectives into things measured
  (metrics)
• Establish a scale to define what is good what is
  bad

21
Two Sample Scales
22
Scale for Car Objectives
23
(No Transcript)
24
(No Transcript)
25
(No Transcript)
26
Calculate Relative Utility Values for Alternatives

• Review Figure 62 on handout
• Notice untility scores for each concept fragment
  and each objective (upper left corner, see Notes
  for meaning)
• Which concept(s) is the winner?

27
Comments on Notebook Assessment

• None of the Notebooks received at least a Meets
  for TA5 even though there was evidence of much
  work being done
• Most assessments for IA8 were meets but there
  were some Es and a few NIs

28
Notebook Assessment Continued

• The notebook work (TA5 IA8) is the one body of
  work that can be reassessed as M or E independent
  of the first assessment
• I will log in the best assessment received for
  TA5 and IA8
