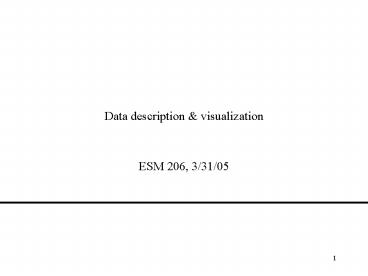

Data description

1
Data description visualization

• ESM 206, 3/31/05

2
The problem The data

• A site has suffered the release of a toxic
  chemical (1,2,3,4-Tetrachlorobenzene -- TcCB)
  into the soil, and the company responsible has
  undertaken cleanup activities.
• How should we decide whether the cleanup has been
  adequate?

• We have samples of TcCB concentration (measured
  in ppb) in the soils at the cleanup site, as well
  as samples of concentrations at an uncontaminated
  reference site with similar soil
  characteristics.
• The concentrations of TcCB at the reference site
  are not zero, and we need to determine what the
  normal levels of this chemical are.

3
Visualizing univariate data I the histogram
4
Histogram shape is sensitive to bin size
5
Nonparametric density plot
6
Reference vs. Cleanup sites
7
Describing the data I Measures of central
tendency
Reference 0.599 0.54
Cleanup 3.915 0.43

• Arithmetic mean
• The average observation
• Strongly influenced by extreme values in the data
• Median
• The typical observation
• Half the observations are above it and half are
  below it
• Robust to extreme values
• Mode
• The most likely observation
• Peak in the frequency distribution

8
Describing the data II measures of variability
Cleanup 400.624 20.016 511.229 2.281 0.97
Reference 0.0805 0.284 47.391 0.0414 0.37

• Variance
• Mean squared difference from mean
• Standard deviation
• Square root of variance
• Coefficient of variation
• Variation scaled by the mean
• Standard error
• Measure of precision
• Interquartile range
• Distance between bottom quarter of data and upper
  quarter of data

9
Describing the data III measures of shape
Reference 0.902 0.132
Cleanup 7.717 62.675

• Skew measure of symmetry of data around mean
• Perfect symmetry skew 0
• Kurtosis measure of peakedness of data
• Kurtosis lt 0 (platykurtotic) points evenly
  distributed
• Kurtosis gt 0 (leptokurtotic) most points
  either close to mean or very far away

10
Visualizing univariate data II the box plot
outlier
1.5 x interquartile range above 75th percentile
or maximum of data

95 CI of Mean
75th percentile
Interquartile range
mean
median
Most compact 50
25th percentile
1.5 x interquartile range below 25th percentile
or minimum of data
11
Visualizing univariate data III the cumulative
distribution function (CDF)
12
Conclusions TcCB

• On average, the cleanup site is still more
  contaminated than the reference site
• This is because of a few extremely contaminated
  hot spots the medians are about the same
• However, parts of the cleanup site are cleaner
  than the reference site
• Cleanup technology is effective
• A few spots are still badly contaminated
• Need to focus on cleaning up hot spots

13
Presenting data summaries

• The mean soil concentrations of TcCB
  were (n 47) at the reference
  site and (n 77) at the
  cleanup site.
• Always give sample size
• Always explain what you are reporting when using
  /- notation

14
OBSERVATIONS, POPULATIONS, AND PARAMETERS

• Observation a single datum of information about
  the environment
• Also called experiment or event or sample
• Sample space set of all possible observations
  about the system
• Might be infinite
• Also called population
• If we observe every sample in the sample space
  then we have completely characterized the system

• We are interested in some parameters that
  describe the sample space
• Goal of statistics estimate parameters without
  taking all of the possible samples

15
RANDOM VARIABLES

• Each observation is a random variable
• Prior to taking the observation, we cannot
  perfectly predict its value
• The observation has a certain probability of
  taking on a given value
• This probability is generally unknown
• The probability distribution is determined by the
  properties of the sample space

• A parameter estimate is also a random variable
• If we repeat the process of collecting n
  observations and estimating the parameter, we
  will get a different value
• If we do this a bunch of times, we will see a
  probability distribution for the estimate
• The width of this distribution (the variance)
  tells us about the uncertainty in the parameter
  estimate

16
CONFIDENCE INTERVALS

• If know how data sampled
• We can construct a Confidence Interval for an
  unknown parameter, q.
• A 95 C.I. gives a range such that true q is in
  interval 95 of the time.
• A 100(1-a) C.I. captures true q
• (1-a) of the time.
• Smaller a, more sure true q falls in interval,
  but wider interval.

• C.I. FOR MEAN OF NORMALLY DISTRIBUTED DATA
• 95 C.I. for m
• SE is standard error of mean.
• t97.5 is critical value of t distribution
• Critical t value depends on sample size (n)
• If n gt 20, then t97.5 1.96 2

17
Accuracy

• Precision
• Repeatability of estimate
• What we get if we took a new sample and
  recalculated the estimate?
• Quantified by standard error
• Also called efficiency

• Bias
• Systematic over- or under-estimate
• Can often be compensated for
• E.g., dividing by n 1 in calculation of sample
  variance is a bias correction

18
CENTRAL LIMIT THEOREM

• Normality requirement actually applies to
  parameter estimate, not to data
• Sample mean is based on the sum of a bunch of
  random variables
• Sum of normal random variables is itself normally
  distributed
• Central Limit Theorem says that the sum of
  enough random variables from any probability
  distribution is normally distributed

19
Comparing data to a Normal distribution the QQ
plot
Quantiles of data
Quantiles of standard normal
20
Transforming data

• Why transform?
• Make the data (or the residuals from the
  regression) more symmetric
• Eliminate nonlinear relationships
• Control other violations of regression
  assumptions
• But do transformed data mean anything?
• Often several natural scales
• T-test for means of log-transformed data
  equivalent to comparing medians of untransformed
  data

• Controlling skew Power transformations
• Powers lt 1 reduce skew
• Square root (1/2)
• Log (0)
• Inverse (-1)
• Powers gt 1 increase skew
• Squared (2)
• Also called Box-Cox transformation
• Logit transformation often used on proportion
  data
• We will learn a better way

21
Log-transformed TcCB data (reference)
22
Log-transformed TcCB (cleanup)
23
The problem The data

• We are trying to design a fuel-efficient car, and
  want to know what characteristics of current cars
  are associated with high fuel efficiency.

• We have data on 60 models of cars, with
  measurements of
• Fuel efficiency (mpg)
• Fuel consumption (gallons per 100 miles)
• Weight (lbs)
• Engine displacement (cubic inches)
• Car class (small, sporty, compact, medium, large,
  and vans)

24
The Scatterplot Matrix
25
Compact cars Sporty cars
26
Measures of association

• Covariance
• Magnitude depends on strength of association and
  on variance of each variable
• Covariance of something with itself is the
  variance
• Correlation
• Measure of association, independent of
  variability in data
• 1 ? perfect positive association -1
  ? perfect negative association 0 ?
  no association

27
Covariance matrix for fuel data
28
Correlation matrix for fuel data
29
Fuel data conclusions

• Horsepower, car weight, and engine displacement
  are positively associated
• Weight has strongest negative association with
  mileage
• Inverse of mileage (gallons per mile) might be
  better variable to look at (get rid of
  nonlinearity)
• To get more fuel efficient cars, focus on making
  them lighter and giving them smaller engines

30
Some questions

• Are mean TcCB levels in the cleanup site
  significantly higher than in the reference
  site? How confident are we that there is a
  difference?
• Do car types differ in their fuel economy? How
  much of this is a function of their intrinsic
  design, vs. differences in size?

31
Further reading

• Online reader, Visualizing and Summarizing Data
• Online reader, Confidence Intervals
