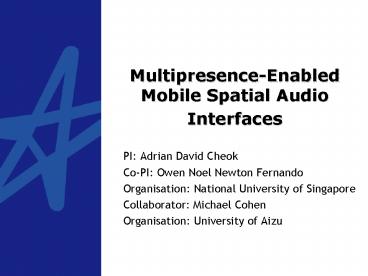

Multipresence-Enabled Mobile Spatial Audio
Interfaces

• PI Adrian David Cheok
• Co-PI Owen Noel Newton Fernando
• Organisation National University of Singapore
• Collaborator Michael Cohen
• Organisation University of Aizu

2
OBJECTIVES

• The main objective of this research is to develop
  multipresence-enabled audio windowing systems for
  visualization, attention, and privacy awareness
  of narrowcasting (selection) functions in
  collaborative virtual environments (CVEs) for GSM
  mobile devices, 3rd- and 4th-generation mobile
  phones.
• The deployment of audio narrowcasting operations
  encourages modernization of office- and
  mobile-based conferencing, leveraging session
  integration across coextensive spaces and
  anticipating multipresence enabled by higher
  bandwidth and more durable mobile connectivity
  for effectively persistent sessions.
• This research can be considered an extension of
  presence technology, and anticipates deployment
  of such narrowcasting protocols into session
  protocols like SIP or the internet infrastructure
  (routers, etc.) itself.

3
SCOPE

• The mobile audio windowing system is a
  multidisciplinary project that will focus on
  research, definitions, and applications of new
  types of communication in collaborative virtual
  environments.
• Implement narrowcasting operations in mobile
  collaborative environments.
• Implement multipresence functionality.
• Implement autofocus algorithm to determine a best
  multipresent sink for each source.
• Implement best source algorithm to determine best
  multipresent source for each sink.
• Implement clipboard operations for teleporting
  and cloning.
• Design and implement GUI (graphical user
  interface) for multiple spaces using time- or
  space-division multiplexing.
• Implement realtime voice communication for
  multiple spaces (initially, up to five spaces).
• Validation of efficacy of auditory interfaces,
  including usability testing.
• Deploy spatial sound in mobile applications.
• Integrate SIP-based media mixing of narrowcast
  audio streams.

4
DELIVERABLES

• We propose to perform appropriate RD to enable
  delivery of a multipresence-enabled mobile
  telephony system comprising three main
  subsystems
• control We will extend narrowcasting to mobile
  interfaces (by porting a previously developed
  ?Con program to local GSM mobile platform),
  including multispatial idioms (clipboard
  functions for teleporting/cloning).
• communication The above-described interface will
  control realtime polyphonic audio (probably
  mostly voice) streams, extending to more than two
  conversants. We plan to apply SIP-based presence
  protocols (described later) to such chat
  sessions.
• display We plan to deploy spatial audio on
  mobile platforms for rich chat capability, based
  on JSR-234, a proposed standard for enabling
  advanced multimedia on mobile platforms,
  including models of spatial sound.
• An audio windowing system for NTT-DoCoMo mobile
  phones has been developed as partially working
  prototypes using JME and NTT DoCoMo/Java (DoJa)
  libraries. As a first step in the proposed
  research, we will port these prototypes into GSM
  mobile phones, as supported by local mobile
  network operators.
• The narrowcasting formalization validated by a
  workstation proof-of-concept and the
  infrastructure of the CVE client/server
  architecture, and extended by the servent proxy
  to support mobile transactions, is robust enough
  to use for the research and development described
  in this proposal.

5
IMPACT

• Applications
• This research will enable different
  applications, including teleconferences,
  chatspaces, virtual concerts, location-based
  services, sonic cursors, and entertainment
  culture (like online role-playing games).
• Mobile teleconferencing audio windowing system
• Multipresence-enabled interaction systems
• Domestic (family)
• Social (friends)
• Vocational (office)
• Mobile spatial audio system
• Karaoke and virtual concerts
• MMORPG massively multiplayer online role-playing
  games
• LBS location-based services
• Mobile talking books
• Audio navigation and way-finding

6
Possible contributions to research/industry

• A unique feature of our system is the ability of
  a human pilot to delegate multiple avatars
  simultaneously, increasing quantity of presence
  such multipresence enables us to overcome some
  fundamental constraints of human condition.
• Presence awareness is rapidly becoming an
  important component of many collaborative
  applications. One serious limitation is that no
  existing presence awareness systems can handle
  multiply present sources and sinks. The
  narrowcasting operations presented in this
  proposal suggest an elegant approach such
  multipresence environments.
• We are the only group working on multipresence
  and the protocols required to articulate privacy
  and attention across the multiple spaces users
  will virtually inhabit with the near-constant
  connectivity (ABC always best connected)
  afforded by mobile networks.
• Sound spatialization has particular potential
  when developing application on small screen
  displays. To the best of our knowledge, no
  existing mobile interfaces support multiple
  simultaneous audio streams with multipresence.
  Our system will allow users to multicast their
  voice to multiple receivers and control crowded
  soundscapes using narrowcasting operations.

7
Exploitation Potential / Commercialisation

• The proposed system will enhance human
  communication, allowing users to interact with
  friends, family, and colleagues anytime
  anywhere. One will have virtual presence in
  multiple different virtual places, and the
  ability to control privacy and shift attention
  back and forth. For instance, one's family
  members, schoolmates, friends, etc. will have
  persistent virtual copresence and one can
  virtually go back and forth among different
  spaces, encouraging synchronous social
  interaction even in busy life.
• Mobile phones have become a ubiquitous technology
  and for many people an important tool for
  communication and information access. Mobile
  telephony offers an interesting platform for
  building multipresence-enabled applications that
  utilize the phone as a social or commercial
  assistant. We expect that commercial development
  of this research will involve partnerships with
  network providers, who might license such
  technology to offer to their subscribers as an
  added-value service.
• Future Work
• Multiuser interfaces generally provide shared
  workspaces for human users to collaborate.
  Role-based collaborative user interfaces can
  enhance CSCW systems. Role-based collaborative
  systems allow human users to collaborate with
  each other easily and productively. We should
  explore special interface design strategies and
  provide user requirements for interfaces
  supporting role-based applications, based on role
  assignments and role transition mechanisms.

8
Principle Investigator (PI)
CO-PI
Collaborator
Professor Michael Cohen is Professor of Computer
Arts at the University of Aizu in Japan, where he
heads the Spatial Media Group, teaching
information theory, audio interfaces, computer
music, and researching interactive multimedia,
including virtual mixed reality, computer
music, spatial audio stereotelephony,
stereography, ubicomp, and mobile computing. He
received an Sc.B. in EE from Brown University
(Providence, Rhode Island), M.S. in CS from the
University of Washington (Seattle), and Ph.D. in
EECS from Northwestern University (Evanston,
Illinois). He is the co-developer of the Sonic
(sonic.u-aizu.ac.jp) online audio courseware, the
author or coauthor of over one hundred
publications, four book chapters, and two
patents, and the inventor or co-inventor of
multipresence (virtual cloning algorithm), the
Schaire, nearphones, SQTVR, and Zebrackets.
Owen Noel Newton Fernando is a Research Fellow in
the Mixed Reality Lab. at the National University
of Singapore. He received his B.Sc. in Computer
Science from the University of Colombo, Sri
Lanka, and M.Sc. Ph.D. in Computer Science and
Engineering from the University of Aizu, Japan.
He has previously worked at the Peoples Bank
(leading government bank in Sri Lanaka) IT
department as a Systems Analyst. He was awarded
the Japanese Government (Monbukagakusho MEXT)
scholarship in 2004. Fernando is the author or
coauthor of five Journals and fifteen conference
publications.
Adrian David Cheok is Director of the Mixed
Reality Lab, National University of Singapore. He
is currently an Associate Professor at the
National University of Singapore where he leads a
team of over 20 researchers and students. He has
been a keynote and invited speaker at numerous
international and local conferences and events.
He is invited to exhibit for two years in the Ars
Electronica Museum of the Future, launching in
the Ars Electronica Festival 2003. He was IEEE
Singapore Section Chairman 2003, and is presently
ACM SIGCHI Chapter President. He was awarded the
Hitachi Fellowship 2003, the A-STAR Young
Scientist of the Year Award 2003, and the SCS
Singapore Young Professional of the Year Award
2004. In 2004 he was invited to be the Singapore
representative of the United Nations body IFIP SG
16 on Entertainment Computing and the founding
and present Chairman of the Singapore Computer
Society Special Interest Group on Entertainment
Computing. Also in 2004, he was awarded an
Associate of the Arts award by the Minister for
Information, Communications and the Arts,
Singapore.
9
Q A Session
10
Narrowcasting and selection functions can be
formalized in predicate calculus notation, where
means not, means conjunction (logical
and), ? means there exists, and ? means
implies. The general expression of inclusive
selection is active(media processor x)
exclude(x) (? y (include(y) self(x)
self(y)) ? include(x) )So, for mute and select
(solo), the relation is active(source x)
mute(x) (? y (select(y) self(x)
self(y)) ? select(x) )mute explicitly turning
off a source, and select disabling the collocated
(same room/window) complement of the selection
(in the spirit of anything not mandatory is
forbidden). For deafen and attend, the relation
is active(sink x) deafen(x) (? y
(attend(y) self(x) self(y)) ? attend(x) )
Narrowcasting and selection functions
11
Media mixing and delivery for
(P1 mutes P2 and deafen P4)
12
Policy configuration, evaluation, media mixing,
and delivery for selective privacy
