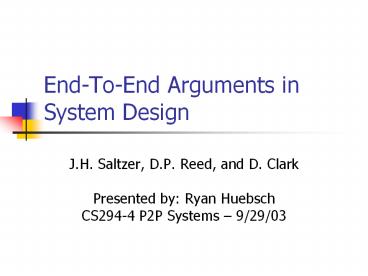

End-To-End Arguments in System Design

1
End-To-End Arguments in System Design

• J.H. Saltzer, D.P. Reed, and D. Clark
• Presented by Ryan Huebsch
• CS294-4 P2P Systems 9/29/03

2
Outline

• The Argument
• Examples
• Careful File Transfer
• Secure Transmission of Data
• Performance
• Identify the Ends
• End-To-End Argument Meets P2P

3
The Argument

• Define when it is applicable
• The function in question can completely and
  correctly be implemented only with the knowledge
  and help of the application standing at the
  endpoints of the communication system
• Regardless of what happens in the communication
  systems, correct operation can only be verified
  by endpoints.

4
The Argument

• Define the consequence
• Therefore, providing that questioned function
  as a feature of the communication system itself
  is not possible
• If you cant do it properly, dont do it at all.

5
The Argument

• Define the exception
• (Sometimes an incomplete version of the
  function provided by the communication system may
  be useful as a performance enhancement.)
• Its not a hard and fast rule, there are special
  cases where the benefit outweighs the cost.

6
Careful File Transfer

• Copy/Move file from HD on Computer A to HD on
  Computer B

7
Careful File Transfer

• Possible threats to an accurate transfer
• Disk error
• Software error (OS, File transfer program,
  Network driver)
• Hardware error
• Communication system
• System crash

8
Careful File Transfer

• Solution 1 Point-to-Point
• Reinforce each step of process (timeout, retry,
  etc.)
• Goal Reduce probability of each threat to an
  acceptably small value
• Could be hard to do, each step must be full-proof
• Could be inefficient, extra checking
• Solution 2 End-to-End
• Store file with a checksum, transfer file, read
  transferred file back from disk, compute
  checksum, send checksum to originator to compare
  the two checksums.
• If check fails, redo from beginning

9
Careful File Transfer

• Solution 3 Both
• Point-to-Point checks in communication system
  (such as link level, IP, and/or TCP)
• End-to-End checks must still be performed, since
  only one of the threats is handled
• Does not reduce the overall burden to the
  application, but may reduce the frequency of
  problems
• Lesson
• Application must supply the guarantee in the end

10
Secure Transmission of Data

• Goal, move data from one machine to another such
  that the data on the wire is secure (encrypted)

11
Secure Transmission of Data

• Let the communication system encrypt on entry,
  decrypt on exit.
• Problems
• Communication system needs the key
• Data is in the clear when entering/exiting
• Authenticity must still be checked by application
• End-To-End argument wins here

12
Performance

• Remember the exception in the argument
• What if communication system is very unreliable,
  file transfer could keep retrying for ever
  because one packet got lost!
• Providing more reliability at the lower layers is
  a tradeoff betweencost engineering effort vs.
  reliability
• Not a simple decision

13
Performance

• Even if it simple to implement at a lower level
  and doesnt cost much
• Subsystem may be common to many applications,
  they all must pay
• Subsystem has less information, may not be able
  to do the best job
• Decision could be complicated if some of the
  packet-by-packet type checks can be emulated by
  application
• Send file in chunks, each chunk is checked for
  correctness

14
Identifying the Ends

• Maybe not so easy
• Consider voice over IP
• Are the ends the computers?
• Could introduce long delays
• Are the ends the people?
• Retry repeat that
• End-to-End argument is not an absolute, but a
  design tool

15
Not Just for Communication

• Encryption
• Two-Phase commit
• Banking (high level auditing)
• Reservations (agent retries till confirmed)
• Telephone (caller redials)
• Backup on magnetic tapes
• RISC (simple instructions)
• Open Operating System (replace low level
  functions)

16
End-To-EndArgument Meets P2P

• Consider key-based-routing systems(which seem
  similar to SWALLOW?)
• Function route(key, msg)
• What are the ends?
• Requestor Responsible Node
• Router-to-Router or Application-to-Application
• Structured vs. Unstructured
• Structured gives better reliability
• Unstructured gives less
• Iterative vs. Recursive?
