Creating the Virtual Oil Field

1
Creating the Virtual Oil Field

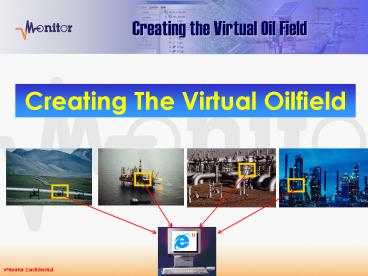

Creating The Virtual Oilfield
2
vMonitor Highlights
3
vMonitor is Setting the Industry Standard

• vMBusX-T and X-C
• vMBusX-S
• vMBusX-SP

4
The Only Company in The Industry That Offers
RTU

• Wireless RTUs.
• Battery-operated and solar powered long range
  communication wireless RTUs
• Mesh and Cluster Communication Architecture.
• Micro-size wireless RTUs.
• Long-range wireless sensors.

Radio
5
Remote Monitoring and Control Applications

• Onshore and Offshore applications
• Wellhead Oil Wells, Gas Wells, Water Injection
  Wells, Gas Injection, etc.
• Pumps
• Electrical Submersible Pumps (ESPs), PCP and RLPs
• Downhole Gauges
• Control Valves
• Flow Measurement Systems, Flow Meters, Test
  Separators
• Pipeline Stations
• Instrumentation/Sensors temperature, pressure.

6
End-to-End Systems
7
Digital Oilfield Solutions
8
Wide Range of Solutions
vMBusX-S Micro Wireless RTU 3 I/Os
vMBusX-C Full Capabilities Wireless RTU
vMBusX-S8 Micro Wireless RTU Up to 8 I/Os
vMBusX-T Wireless RTU Extended I/Os
vMBusX-SP
vMBusX-ST
vMBusX-SU- Tank
vMBusX-SDP
9
vMBusX-S

• Worlds Smallest Wireless RTU
• Battery Operated
• Long Range (up 20 Miles)
• Multiple I/Os
• Intelligent data processing and buffering
• Multiple frequencies (400 MHz, 900MHz and 2.4
  GHz)
• ATEX Zone 1

10
vMBusX-C

• The only Wireless Full RTU in the industry.
• Extensive I/O capability.
• Dual processor
• Solar and battery power.
• Intelligent processing capability.
• Multi-frequency.
• ATEX Zone 1

11
vMBusX-T

• Worlds Most Advanced Low-Power Wireless RTU
• Multiple Communication Frequencies(900MHz,
  2.4GHz, 400MHz, GSM and Satellite Option).
• Power
• Battery-Operated Option (Battery Life up to 3
  Years)
• Solar Panel powered
• Range up to 40 Miles (Longer Range with Repeater)
• Two-way Communication
• Large number of AOs, AIs, DIs, DOs and
• Serial Interfaces
• Ethernet-Enabled
• Intelligent Processing
• -40o C to 85o C

Set World Record in Long Distance Wireless
Communication Using Battery
12
Game Changing Technology
13
Micro Wireless Sensors
vMBusX-SP

• One Package Sensor RTU Radio Power
• No well cabling
• Battery-operated (up to 3 years battery life)
• Long range up to 10 miles (up to 7 miles with
  2dB antenna)
• Pressure, Temperature, Differential Pressure, and
  tank level.
• ATEX Zone 1

14
Open Architecture
15
vmESP Building Real-Time Applications with
TOTALACCESS
16
Worldwide Experience
17
Nigeria

• In Nigeria, vMonitor is deploying the latest
  micro wireless sensors technology.
• Small and battery-powered.
• Industry First in wireless system, transmitting
  data over several kilometers through thick jungle
  environment.

18
Venezuela

• In Venezuela, vMonitor has deployed on of the
  Worlds most advanced Remote monitoring and
  control systems for
• ESPs, Wellheads, Downhole Gauges, Welltest, and
  other equipment.
• Interface to existing infrastructure DCS,
  Optimization System and Data Models.

19
Abu Dhabi

• vMonitor has contracts with two major oil
  companies ADCO and ADMA
• vMonitor installed in ADCO the First ESP remote
  monitoring system using GPRS technology.
• ADMA is deploying vMonitors latest Wireless
  Sensors technology.

20
Oman

• vMonitor is delivering the most advanced wireless
  remote monitoring technology to thousands of
  wells
• ESPs
• Water injection
• Gas lift
• Pipeline stations
• And other facilities

21
Algeria

• vMonitor installed the First battery operated
  well monitoring system in Sonatrach.
• vMonitor is currently deploying in Ourhoud the
  latest technology in wireless remote monitoring.

22
USA

• vMonitor has deployed some of the advanced
  battery operated wireless monitoring systems in
  the rocky mountains for shale oil well monitoring.

23
Brunei

• vMonitor deployed remote monitoring systems
  linking a variety of wells including ESPs,
  downhole gauges and intelligent gas lift systems.

24
Saudi Arabia

• vMonitor delivered a fully web-based remote
  monitoring system for water injection and oil
  wells.

25
Gabon

• vMonitor is deploying an integrated remote well
  monitoring systems in the jungles of Gabon for
  wellhead monitoring, ESPs and Flow Measurement
  systems.

26
Colombia

• vMonitor is delivering advanced pipeline remote
  monitoring technology.
• TotalAccess provides data integration and
  web-based access.

27
Kuwait

• vMonitor deployed one of the first wireless ESP
  and Rod Pump remote monitoring systems using
  spread spectrum technology.
• vmESP provided data acquisition, reporting,
  alarming and diagnostics functions.
