Distributed Token Circulation in Mobile Ad Hoc Networks

1

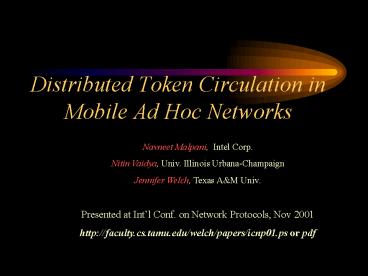

Distributed Token Circulation in Mobile Ad Hoc
Networks
Navneet Malpani, Intel Corp. Nitin Vaidya,
Univ. Illinois Urbana-Champaign Jennifer Welch,
Texas AM Univ. Presented at Intl Conf. on
Network Protocols, Nov 2001 http//faculty.cs.tamu
.edu/welch/papers/icnp01.ps or pdf
2
Introduction

• Mobile Ad Hoc Networks (MANETs)
• Formed by a collection of wireless mobile hosts,
  without making use of any existing infrastructure
  (such as base stations or telephone lines).
• Pair of nodes communicate with each other either
  over a wireless link between the two nodes, or by
  traversing a sequence of wireless links over
  several other intermediate nodes.

3
Example Mobile Ad Hoc Network
A
B
B
A
C
C
D
E
D
E
4
Introduction continued

• Usefulness
• Disaster recovery
• Search and rescue in remote areas
• Military operations
• Characteristics of Mobile Ad Hoc Networks
• Highly dynamic topology
• Highly variable message delays
• Variable transmission error rates
• Constraints on energy consumption
• Constraints imposed by wireless interfaces

5
Token Circulation Definition

• Ensure that a token circulates throughout the
  network, visiting every node infinitely often.
• Round Minimal length sequence of nodes visited
  to ensure that every node is visited at least
  once.

6
Token Circulation Example
T
T
A
B
A B C E D C A B C E D C A ...
T
T
C
Length of round 1 5 Length of round 2 6 Length
of round 3 6
D
E
T
T
7
Token Circulation Application

• Total order of message delivery in a group
  communication service
• Key features of a group communication service
• Maintaining information regarding group
  membership
• Communication among nodes in the group in an
  ordered manner

8
Token Circulation Application

• Token carries a sequence number, which is always
  incremented. Sender multicasts message with
  sequence number receiver delivers in order. OR
• Messages are stored in the token itself (large
  token).
• Additional mechanisms are needed to obtain
  desired level of reliability.

9
Token Circulation Algorithms

• Local Least Recently Visited (LR) forward token
  to neighbor visited least recently
• Local Least Frequently Visited (LF) forward to
  neighbor visited least frequently

A
B
LR ACBCDE CACBCDE CACBCD E...
C
LF ACBCDE DECACB CDEDEDECACB C...
D
E
10
More TC Algorithms

• Choose next destination among all nodes.
• Global Least Recently (GR) forward to any node
  in network visited least recently
• Least Frequently (GF) forward to any node in
  network visited least frequently

11
Yet More TC Algorithms

• GRN Global Least Recently visit intermediate
  nodes on the path
• GFN Global Least Frequently visit intermediate
  nodes on the path (not studied)
• Iterative Search try to find Hamiltonian Path
  using more history information (see paper for
  more details)

12
Performance Measures

• Round length number of nodes visited by the
  token in a round
• Message overhead number of bytes sent per round
• Time overhead time required to complete a to
  complete a round

13
Simulation Results

• ns-2 simulator with CMU extensions
• System contains 20 nodes initially placed
  randomly in a 1000m x 300m box
• Random Waypoint mobility model
• Each algorithm runs as an application on top of
  TCP and DSR protocol
• Results for Static and Dynamic topologies

14
Static Topologies

• Plots of
• number of nodes visited
• number of bytes sent
• amount of time taken
• during each round, averaged over 50 different
  scenarios

15
(No Transcript)
16
(No Transcript)
17
(No Transcript)
18
Discussion of Static Results

• LF diverges
• GR and GF trivially have best round length, but
  not so good on messages time
• LR is quite good
• Iterative Search is best overall

19
Dynamic Topologies

• Varying speed (6, 12, 18 and 24 m/sec) with
  constant hello interval of 0.5 sec
• Varying hello interval (0.1, 0.3, 0.5 and 0.7
  sec) with constant speed of 12 m/sec
• Hello Threshold 3
• Number of scenarios 30
• Duration of simulation was varied inversely with
  the speed

20
(No Transcript)
21
(No Transcript)
22
(No Transcript)
23
(No Transcript)
24
(No Transcript)
25
(No Transcript)
26
Discussion of Dynamic Results

• Random Nature of Results
• Effect of uncertainty in the topology knowledge
  due to the hello protocol
• Effect of the TCP timeout intervals when
  partitions occur
• Chaotic nature of the algorithms themselves
• LR is the best! Close to optimal round length.

27
Conclusion

• Identified new problem for MANETs -- token
  circulation
• Proposed several distributed algorithms
• Compared them by simulation
• Overall best algorithm
• Iterative Search in the static case
• LR algorithm in the dynamic case

28
Future Work

• Identify characteristics of graphs on which LR
  has good performance -- there are graphs on which
  it has exponential round length (cf. recent work
  by Yu Chen)
• Integrate token circulation with mechanisms for
  complete group communication service
• Make tolerant of token loss / partitions
• Find lower bounds on possible performance and
  find optimal algorithms
