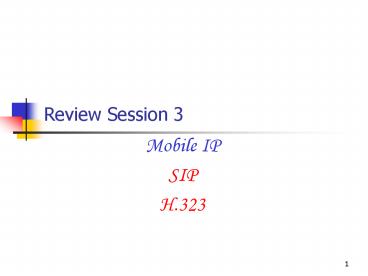

Title: Review Session 3


1
Review Session 3
  • Mobile IP
  • SIP
  • H.323

2
Mobile IP Requirements
  • Transparency Movement of Mobile host
  • transparent to the applications and
    transport-layer protocols
  • Transparent to the routers, except those directly
    connected with the mobile host
  • Interoperability with IPv4 and with other mobile
    hosts
  • Handles long duration moves and not rapid motion
  • Scalable

3
Mobile IP Requirements 2
  • Secure All messages used to update another node
    ( a router in the home network) as to the new
    location of a mobile host must be authenticated
    in order to protect against remote redirection
    attacks.
  • Wireless devices have lower bandwidth and have to
    conserve the use of energy. So the number of
    administrative messages and their size should be
    kept as small as possible.

4
Procedure two addresses
  • A mobile host has a permanent IP address in its
    home network. A router in its home network is
    used as its Home Agent (HA). HA must have a
    network interface on the link, indicated by the
    mobile hosts IP address.
  • When it moves to another network, it acquires a
    temporary address, called the Care-of-Address.
  • Two different processes with Care-of-address

5
Registration of Care-of-address
  • Care-of-address operated through a router in the
    new network. A router in the foreign network,
    which does the job, is called the Foreign Agent
    (FA) for the mobile host.
  • Co-located Care-of-address The mobile host
    handles all forwarding and tunneling itself. It
    requires additional software to do so. Moreover
    the mobile host on a foreign network, must be
    located on a link, specified by the network
    prefix of the Care-of-address.

6
Registration and gratuitous ARP
  • Registration The mobile host registers with HA
    by informing it of its Care-of-address, --
  • through FA or
  • in case of co-located Care-of-address, itself.
  • After registering the mobile hosts
    Care-of-address, the HA broadcasts a gratuitous
    ARP message on the home network, giving its own
    MAC address as a proxy for the mobile host. Since
    broadcast messages may not reach reliably every
    host on the network, the gratuitous ARP message
    is broadcast a few times.

7
Deregistration
  • Deregistration When the mobile host comes back
    to its home network, it sends
  • a gratuitous ARP message to give its own MAC
    address to all the hosts on the local network.
  • a deregistration message to the HA and
  • it simultaneously retransmits the gratuitous ARP
    message a few times.

8
Deregistration .. 2
  • After accepting the deregistration request, HA
    sends
  • a gratuitous ARP message, associating the MAC
    address of the mobile host with the mobile hosts
    IP address to the local network.
  • a reply to the mobile host, accepting
    deregistration.
  • The HA retransmits this gratuitous ARP message
    a few times.
  • Both the HA and the mobile host are required to
    send the gratuitous ARP message at
    deregistration, since the area of coverage of the
    wireless mobile host and the HA are likely to be
    different.

9
Data Transfer from remote sender to mobile
host
Triangle Routing
  • The Remote Sender (RS) sends a message to the
    home address of the mobile host.
  • The Home Agent (HA)
  • intercepts the message, using proxy ARP method.
  • encapsulates the message using IP-in-IP with
  • Source address the HA address
  • Destination address the FA address
  • Note PROTOCOL in the IP Header for IP-in-IP is
    equal to 4.

10
Data Transfer
  • Foreign Agent (FA)
  • retrieves the packet, sent by the remote sender,
  • consults a registry table to get the
    Care-of-address and
  • sends the packet to the Care-of-address.
  • From Mobile Host to the Remote Sender
  • The packet generally goes DIRECTLY, with
  • Source address the home address of the mobile
    host
  • Destination address the address of the remote
    host

11
Double Cross Routing
  • When The mobile host goes to the network of the
    Remote Sender (RS)
  • Remote Senders message follows the standard
    Triangulation process, though the Foreign Agent
    is in the RSs network.
  • Message from the mobile host to RS Direct
  • Causes of Inefficiencies
  • Triangle Routing
  • Double Crossing

12
Solution to inefficiencies
  • HA may inform RS about the Care-of-address, while
    forwarding the packet to the FA.
  • All future packets from RS to mobile host can go
    directly.
  • When the mobile host returns to the home network,
    HA may again inform the RS.
  • Skip 13-16

13
IP in IP Encapsulation (RFC 2003)
  • To encapsulate an IP datagram in IP

14
IP in IP Encapsulation The Outer
IP Header
  • Protocol 4
  • Source Address HA address
  • Destination Address FA address.
  • HA and FA are the end-points of the tunnel during
    the Triangle Routing.
  • Header Length length of the outer IP header
    only
  • Type of Service (TOS) copied from the inner IP
    header
  • Total Length length of the entire encapsulated
    IP datagram, including the outer IP header, the
    inner IP header, and its payload.
  • Time to Live appropriate for delivery up to the
    tunnel exit point.

15
IP in IP Encapsulation The Outer IP
Header .2
  • "Don't Fragment" bit
  • If the "Don't Fragment" bit is set in the inner
    IP header, it MUST be set in the outer IP header.
  • If the "Don't Fragment" bit is not set in the
    inner IP header, it MAY be set in the outer IP
    header.
  • Fragmentation and reassembly
  • will have to be done at the ends of the tunnel.
  • However since the two end-points are routers,
    reassembly may pose a problem.
  • An ICMP message due to a large message from a
    router within a tunnel may be difficult to relay
    to the original sender.
  • Options Any options present in the inner IP
    header are in general NOT copied to the outer IP
    header.

16
IP in IP Encapsulation The Inner IP
Header
  • not changed by the encapsulator (HA), except to
    decrement the TTL
  • remains unchanged during its delivery up to the
    tunnel exit point
  • TTL in the inner IP header is not changed when
    decapsulating. After decapsulation, when the
    decapsulator (FA) forwards the datagram to one of
    its network interfaces, it will decrement TTL as
    a result of doing normal IP forwarding.

17
Discovery of Agents
  • Before a mobile host leaves the home network, it
    must obtain information about its Home Agent
    (HA).
  • When a mobile host reaches a foreign network, it
    must discover information about its Foreign Agent
    (FA).
  • HA must be always available to serve its mobile
    hosts.
  • FA must continue to advertise so that the mobile
    hosts registered with it know that
  • they have not gone out of its range.
  • the FA is alive.

18
Discovery of Agents ..2
  • Mobility agents (FAs and HAs) advertise their
    presence via Agent Advertisement messages
    A mobile host may optionally solicit an Agent
    Advertisement message from any locally
    attached mobility agents through an Agent
    Solicitation message.
  • On receiving the Agent Advertisements, a mobile
    host determines whether it is on its home network
    or a foreign network.

19
A mobile host on the Home/Foreign
Network
  • When it detects that it is on its home
    network, it operates without mobility services.
    If returning to its home network from being
    registered elsewhere, the mobile node deregisters
    with its HA, through exchange of a Registration
    Request and Registration Reply message with it.
  • When it detects that it has moved to a foreign
    network, it obtains a Care-of address on the
    foreign network either
  • from a FAs advertisements (a FA Care-of
    address) The preferred method because it allows
    many mobile nodes to share the same Care-of
    address and therefore does not place unnecessary
    demands on the already limited IPv4 address
    space. OR

20
A mobile host on a Foregn network
Acquiring a care-of-address ..2
  • The address may be dynamically acquired as a
    temporary address by the mobile node through
    DHCP, or may be owned by the mobile node as a
    long-term address for its use only while visiting
    some foreign network. (a Co-located care-of
    address).
  • Advantage No FA need be deployed.
  • Disadvantages (i) places additional burden on
    the IPv4 address space because it requires a pool
    of addresses within the foreign network to be
    made available to visiting mobile nodes.
  • (ii) difficult to efficiently maintain pools of
    addresses for each subnet that may permit mobile
    nodes to visit.

21
Acquiring Care-of-addresses from FA
advertisement
  • If there are more than one Care-of-addresses,
    advertised by a FA, the mobile host should pick
    up the first.
  • If FA rejects the Registration Request, then the
    mobile host should resend the request with the
    second Care-of-address.

22
Discovery of Agents 2
  • ADVERTISEMENT BY AGENTS through regular ICMP
    Router Advertisements, on which the Agent
    advertisements are piggy-backed.
  • Mobility Agent Advertisement Extension is added
    to the ICMP Router Advertisements for this
    purpose.

23
Mobility Agent Advertisement Extension
  • Appended to the Router Advertisement

ICMP Router Advertisement Message ICMP Router Advertisement Message ICMP Router Advertisement Message ICMP Router Advertisement Message
Type 16 Length Sequence Number Sequence Number
Lifetime Lifetime Code Reserved
Care-of-addresses of Foreign Agents Care-of-addresses of Foreign Agents Care-of-addresses of Foreign Agents Care-of-addresses of Foreign Agents
24
Mobility Agent Advertisement Extension
Fields
  • Length of the extension message only
  • Sequence Number message number
  • Lifetime The longest lifetime (measured in
    seconds) that this agent is willing to accept in
    any Registration Request.
  • No relation with the same named field in the
    ICMP Router Advertisement part.
  • Notes 1.This field has no relation to the
    "Lifetime" field within the ICMP Router
    Advertisement portion of the Agent Advertisement.
  • 2. All 1s i.e. 0xffff ? infinite time

25
Mobility Agent Advertisement Extension
Fields . 2
  • Care-of-Addresses contains the set of available
    care-of-addresses the field used by a foreign
    agent only At least one Care-of-address must be
    included in every Agent advertisement.
  • Code Each of the bits is used to convey a
    different message - as defined in the next
    slide.

26
Mobility Agent Advertisement Extension
Code Bits
  • Bit 7 R registration required Registration
    with this foreign agent (or another foreign agent
    on this link) is required even when using a
    co-located care-of address. Or co-location of
    care-of-address may not be allowed.
  • Bit 6 B Agent is busy. So FA will not accept
    registrations from additional mobile hosts.
  • Bit 5 H Agent acts as a home agent on the link
    on which this Agent Advertisement message is
    sent.
  • Bit 4 F Agent acts as a foreign agent.
  • Bit 3 M Agent uses minimal encapsulation.
    (slides 26-30)
  • Bit 2 G Agent uses Generic Routing
    Encapsulation (GRE). (RFC 1701)
  • Bit 1 r Unused (0)
  • Bit 0 T Agent supports reversed tunneling
    (slide 31)

27
Mobility Agent Advertisement Extension
Code Bits ..2
  • In an Agent Advertisement message
  • 'B' bit MUST NOT be set if the 'F' bit is not
    also set. (Only an FA can say that it is busy. A
    HA must be always available.)
  • at least one of the 'F' bit and the 'H' bit MUST
    be set.
  • R' bit MUST NOT be set if the 'F' bit is not
    also set. (R is set by an FA, when it requires
    registration from even those mobile hosts, which
    have co-located Care-of-addresses. R is NOT used
    by HAs)

28
Mobility Agent Advertisement Extension
Minimal Encapsulation (RFC 2004)
  • IP-in-IP has unnecessary duplication of several
    fields between the outer and the inner IP header
  • Minimal Encapsulation attempts to save some
    space by reducing the size of the inner header to
    12 bytes by eliminating duplication
  • Outer Header
  • PROTOCOL 55 for IP-in-IP with minimum
    encapsulation
  • TTL kept the same as in the original IP header

29
Mobility Agent Advertisement Extension
Minimal Encapsulation 2
30
Mobility Agent Advertisement Extension
Minimal Encapsulation
Minimal Forwarding Header
31
Mobility Agent Advertisement Extension
Minimal Encapsulation
Fields of the Minimal Forwarding Header
  • Protocol same as in the original IP header.
  • S 1
  • (If S 0, the source address in the Outer header
    is equal to the source address in the original IP
    header. Then this address is not put in the inner
    header and the length of the inner header reduces
    to 8)
  • Reserved are all zero.
  • Header Checksum for the minimal forwarding
    header only
  • Note 1. While de-encapsulating, the original
    header is restored
  • back ( with some changes). 2. ICMP messages from
    within the
  • tunnel have to be handled with care, since the
    movement of the
  • mobile host is transparent to the RS.

32
Mobility Agent Advertisement Extension
Need for Reversed Tunneling (RFC 3024)
  • The message from the mobile host to RS goes
    directly from the foreign network to the RS.
  • But it carries the source address of the home
    network.
  • Due to security considerations, some networks may
    not allow it.
  • Need for reversed tunneling from
  • mobile host to- HA to- RS

33
Additional Specifications ICMP Router
Advertisement with Agent Extension
  • Link layer If the Router Advertisement is in
    response to a Router solicitation message, it
    will be unicast to the MAC address of the
    solicitation message. (ie the MAC address and the
    IP home address of the mobile host)
  • IP fields
  • TTL 1
  • The multicast Agent advertisement is sent to
    either
  • All systems on the link ( 224.0.0.1) or
  • The Limited broadcast (255.255.255.255)

34
Prefix-Length extension
  • This extension may follow the Mobility Agent
    Advertisement Extension.

35
Prefix-Length extension
Fields
  • Type 19
  • Length N, where N is the value (possibly zero)
    of the Num Addrs field in the ICMP Router
    Advertisement portion of the Agent Advertisement.
    Prefix Length(s) The number of leading bits that
    define the network number of the corresponding
    Router Address listed in the ICMP Router
    Advertisement portion of the message. The prefix
    length for each Router Address is encoded as a
    separate byte, in the order that the Router
    Addresses are listed in the ICMP Router
    Advertisement portion of the message

36
Router ADVERTISEMENT
  • Type 9 for Router Advertisement
  • Code
  • Code 0 ? The agent routes common traffic, not
    related to mobile hosts in addition to the
    traffic of the mobile hosts
  • Code 16 The agent does not route common
    traffic.However every FA must forward to a
    default router any datagrams received from a
    registered mobile host.
  • (For a non-agent ICMP router advertisement, Code
    ia always equal to zero.)
  • The scheme calls for
  • Periodic Retransmission (Default period10
    minutes)
  • Soft state in that the Router information
    retained for the specified lifetime (Default
    lifetime 30 minute so that missing one ad
    message will not lead to discarding the Router )

37
ROUTER ADVERTISEMENT
  • An Advertisement by a Router tells about
  • it self and
  • all other Routers on the network about which it
    is aware.
  • Every Router address, associated with an integer
    precedence value given in 2s complement. A host
    chooses the route with the highest precedence
    value.

38
ROUTER ADVERTISEMENT
  • Thus if
  • PR VAL 0 -----gt DEFUALT ROUTER
  • PR VAL 8000 0000 -gtshould never be selected
    as the default router.

39
ROUTER ADVERTISEMENT FORMAT
0 8 16 31
Type code checksum
Num Addr Addr Size Life time
ROUTER ADDRESS 1
PREFERENCE LEVEL 1
R A 2
P L 2
40
ROUTER ADVERTISEMENT Fields
  • Num ADDRS The number of address entries which
    follow (often 1) For an Agent Advertisement, Num
    ADDRS can be zero.
  • ADDR SIZE The size of an address in 32 bit units
    (1 for IPv4)
  • LIFE TIME
  • The number of seconds for which the Router is
    retained, if it is not refreshed (default 30
    min)
  • (The maximum length of time that the
    Advertisement is considered valid in the absence
    of further Advertisements.)

41
ROUTER ADVERTISEMENT Process
  • LIFETIME No relation with the same named field
    in the Agent Advertisement part.
  • Routers send these messages periodically. Or
    immediately on receipt of a Router solicitation
    message.
  • If the Router and the network support multicast,
    send to all systems multicast address 224.0.0.1
  • Otherwise it is broadcast locally.

42
Router Solicitation Message to find a
foreign agent
  • In a foreign network, if a mobile host does not
    receive the ICMP Router Advertisement, it can use
    the ICMP Router Solicitation message to ask for
    assistance.
  • An Agent Solicitation message is identical to an
    ICMP Router Solicitation, except that its IP TTL
    MUST be set to 1
  • Rate of sending solicitation messages
  • Initial rate for 3 messages one per second
  • Back-off the rate exponentially ( and randomize
    the sending instant) till you reach one message
    per minute.

43
Router Solicitation
  • Router Solicitation
  • For the addresses of Routers connected to the
    n/w.

0 8 16 31
Type code checksum
Identifier 16 bits Sequence No 16 bits
44
Router Solicitation (Contd)
  • TYPE 10
  • CODE 0
  • If a host supports multicast, send the Router
    Solicitation message to 224.0.0.2 (address of all
    Routers) Or it may be broadcast to the local n/w.
  • (Every few minutes default value 10 minutes -
    a Router advertisement is received .
  • Router Solicitation used only when Router
    address is required immediately)

45
Registration of the mobile host
  • The mobile host operating away from home then
    registers its new Care-of address with
    its HA through exchange of a messages
    with it, possibly via a FA.
  • Registration on moving to a foreign network
  • With the foreign agent
  • With the home agent ( done by the foreign agent
    on behalf of the host)
  • Renew registration, if it has expired.
  • Deregistration after returning to home net

46
Process of Registration
  • Registration Request sent by the mobile host to
    FA to inform it about
  • The chosen Care-of address
  • HAs address
  • Home address
  • FA On receiving the Registration Request relays
    the Request in an IP packet to HA thus
    informing HA about FAs address.
  • Both HA and FA must approve the Registration
    Request

47
Process of Registration 2
  • For a co-located Care-of-address, the mobile host
    sends the Registration Request directly to HA
  • Two new Formats Registration Request and
    Registration Reply
  • UDP used for Registration messages with
  • Well-known port 434 for the Agent
  • An ephemeral port by the mobile host
  • UDP checksum must be used for the Registration
    messages.

48
Registration Request format
Type 1 Flag Lifetime
Home address Home address Home address
Home Agent address Home Agent address Home Agent address
Care-of-address Care-of-address Care-of-address
Identification Identification Identification
Extensions. Extensions. Extensions.
49
8-bit FLAG to convey Requests from the Mobile
Host and to give forwarding information
  • Bit 7 S Simultaneous Binding Request for home
    agent to retain its prior Care-of-address
  • Useful when a mobile host is within the range of
    two FAs
  • the HA can then send two copies, one to each of
    the Care-of-addresses the mobile host may then
    receive two copies of the message.
  • Bit 6 B Request that home agent may tunnel any
    broadcast messages on the home network
  • Bit 5 D Mobile host is using co-located
    care-of-address to decapsulate messages itself.
  • Bit 4 M Request for home agent to use minimal
    encapsulation

50
8-bit FLAG
  • Bit 3 G Request for Generic Routing
    Encapsulation (GRE)
  • Bit 2 r zero ignored on reception
  • Bit 1 T Reverse Tunneling requested
  • Bit 0 x zero ignored on reception

51
Other Fields
  • TYPE 1 for Request and 3 for Reply
  • Lifetime the number of seconds, the registration
    is to remain valid a string of all zeros ?
    Deregistration a string of all 1s ? infinite
    lifetime
  • Care-of-address temporary address of the mobile
    host
  • Identification A 64 bit number sent in Request
    and repeated in Reply. Used for matching the
    Request and Reply.
  • variable length Extensions for authentication

52
Errors in Extensions
  • For both the Agent extension to the ICMP Router
    Advertisement ( slide 23) and the authentication
    extensions (slide 65)
  • When an Extension with TYPE field -- numbered in
    the range 0 through 127 -- is encountered but not
    recognized, the message containing that Extension
    MUST be silently discarded.
  • When an Extension numbered in the range 128
    through 255 is encountered which is not
    recognized, that particular Extension is ignored,
    but the rest of the Extensions and message data
    MUST still be processed. The Length field of the
    Extension is used to skip the Data field in
    searching for the next Extension.

53
Extensions
  • 1. Mobile Node Network Access Identifier (NAI)
    extension
  • 2. Mobile-Home Authentication extension
  • 3. Mobile- Foreign Authentication extension (RFC
    2794)
  • FORMAT of Mobile Node NAI extension

54
Mobile Node NAI extension
Fields
  • Type (1 byte) 131
  • Length (1 byte) The length in bytes of the
    MN-NAI field
  • MN-NAI A string in the NAI format (Examples of
    the Format are given in the next slide.)

55
Network Access Identifiers (NAI)
Examples from RFC 2486
Valid NAIs Invalid NAIs
fred_at_3com.com fred_at_foo-9.com fred_smith_at_big-co.com fred?-/smith_at_bigco.com fred_at_bigco.com nancy_at_eng.bigu.edu eng!nancy_at_bigu.edu engnancy_at_bigu.edu fred_at_foo fred_at_foo_9.com _at_howard.edu fred_at_bigco.com_at_smallco.com engnancy_at_bigu.edu engnancy_at_bigu.edu ltnancygt_at_bigu.edu
56
Registration Reply
  • Home Agent sends the Registration reply to the
    Foreign Agent
  • To confirm or
  • To deny the registration.
  • Foreign Agent, then, relays it to the mobile
    host.
  • CODE FLAG in Registration Request is replaced
    with CODE in Registration Reply. shows
    acceptance or denial of request.
  • Care-of-address field not needed in Reply

57
Registration Reply Format
Type 3 Code Lifetime
Home address Home address Home address
Home Agent address Home Agent address Home Agent address
Identification Identification Identification
Extensions Extensions Extensions
58
Registration Reply Values of
Code
  • Registration Successful
  • 0 ? registration accepted
  • 1 ? registration accepted, but simultaneous
    mobility bindings unsupported

59
Registration denied by HA
Values of Code
  • 128 ? reason unspecified
  • 129 ? administratively prohibited
  • 130 ? insufficient resources
  • 131 ? mobile node failed authentication
  • 132 ? FA failed authentication
  • 133 ? registration Identification mismatch
  • 134 ? poorly formed Request
  • 135 ? too many simultaneous mobility bindings
  • 136 ? unknown home agent address

60
Registration denied by FA Values of Code
  • 64? reason unspecified
  • 65 ? administratively prohibited
  • 66 ? insufficient resources
  • 67 ? mobile host failed authentication
  • 68 ? HA failed authentication
  • 69 ? requested Lifetime too long
  • 70 ? poorly formed Request
  • 71 ? poorly formed Reply
  • 72 ? requested encapsulation unavailable
  • 73 ? reserved and unavailable
  • 77 ? invalid care-of address
  • 78 ? registration timeout
  • 80 ? home network unreachable (ICMP error
    received)
  • 81 ? HA host unreachable (ICMP error received)
  • 82 ? HA port unreachable (ICMP error received)
  • 88 ? HA unreachable (other ICMP error received)

61
LifeTime smaller of LifeTimeRequest
LifeTimeReply
  • LifeTimeRequest LifeTime in the Registration
    Request
  • LifeTimeReply LifeTime received in the
    Registration Reply
  • If LifeTimeReply gt LifeTimeRequest, the
    LifeTimeRequest MUST be used.
  • If LifeTimeReply lt LifeTimeRequest, the
    LifeTimeReply MUST be used.

62
Detecting Movement
  • Algorithm1 Lifetime in Agent advertisement If
    no further Agent advertisement is received and
    the lifetime expires, the mobile host may
  • Attempt registration with another Agent, whose
    advertisement had been earlier received and whose
    lifetime has not yet expired.
  • otherwise, attempt to discover a new FA.

63
Detecting Movement . 2
  • Algorithm 2 It uses the Prefix-Length extension.
    However this method is used only when both the
    current Care-of-address and the new Agent
    advertisement received by the mobile host have
    the prefix-length extension.
  • If the network part of the address should differ,
    it means that the mobile host has moved to a new
    foreign agent and it must re-register with a new
    Care-of-address.

64
Detecting Movement . 2
  • Returning Home when it receives the agent
    advertisement from its HA.
  • It should reconfigure its routing table and
    deregister with its HA and follow the gratuitous
    ARP procedures if the home network uses ARP.
  • A mobile host MUST NOT consider reception of an
    ICMP Redirect from a FA that is currently
    providing service to it as reason to register
    with a new FA.

65
Mobile Home Authentication

66
Mobile Home Authentication
Fields
  • Type 32
  • Length of MHA in bytes
  • SPI Security Parameter Index (4 bytes)
    specifying security context available in the
    Mobility Security Association Values 0-255
    reserved.
  • Authenticator (variable length) (default 128 bit
    Message Digest over (i) UDP payload (ii) all
    extensions (iii) TYPE, LENGTH and SPI.
  • Excludes (i) Authenticator itself (ii) UDP
    header )
  • Note (i) Mobile-Foreign Authentication TYPE
    33
  • (ii) Foreign-Home Authentication TYPE 34

67
Mobility Security Association
  • Mobility Security Association A collection of
    security contexts, between a pair of nodes. Each
    context indicates
  • an authentication algorithm and mode (default
    128 bit key HMAC-MD5),
  • a secret (a shared key, or appropriate
    public/private key pair), and
  • a style of replay protection in use (nonce/time
    stamp).

68
  • SIP

69
Session Initiation Protocol (SIP)
  • Application layer signalling protocol used for
    establishing sessions in an IP network.
  • A session
  • initiated,
  • modified and
  • terminated
  • by it. But it does not know about the details of
    a session.
  • Used for 2-party, multi-party or multicast
    sessions or for a simple 2-way telephone call or
    a collaborative multi-media conference

70
SIP 2
  • SIP, like HTTP (RFC 2068), is a
  • Text-based protocol
  • Uses messages
  • It is a Request/Response protocol like HTTP and
    SMTP
  • SIP "plays nicely" with protocols that are often
    viewed as overlapping in function. For the near
    term, SIP will have to coexist with overlapping
    protocols such as H.323, MGCP, and MEGACO.

71
TCP/IP STACK
72
  • H.323 (ITU standard to allow telephones, on the
    public telephone network, to talk to computers,
    connected to Internet)
  • used for local area networks (LANs), but was not
    capable of scaling to larger public networks.
  • Earlier Standard Media Gateway Control Protocol
    (MGCP)
  • Converts PTSN audio signals to IP data packets.
  • is a closed, voice-only standard.
  • H.248 also called MEGACO
  • Media Gateway Control Protocol (Megaco) --- the
    name used by IETF

73
MEGACO/ H.248 the name used by ITU-T Study
Group 16
  • MEGACO a standard protocol for handling the
    signaling and session management needed during a
    multimedia conference.
  • defines a means of communication between a media
    gateway, which converts data from the format
    required for a circuit-switched network to that
    required for a packet-switched network, and the
    media gateway controller.
  • References 1.RFC 3015
  • 2. http// searchnetworking.techtarget.com/
    sDefinition/0,,sid7_ gci817224,00.html as of 12th
    Oct 2006

74
Stream Control Transmission Protocol
(SCTP)
  • SCTP
  • a reliable transport protocol operating on top of
    IP.
  • It offers acknowledged error-free non-duplicated
    transfer of datagrams (messages).
  • Detection of
  • data corruption,
  • loss of data and
  • duplication of data
  • is achieved by using checksums and sequence
    numbers. A selective retransmission mechanism is
    applied to correct loss or corruption of data.

75
Difference between SCTP and TCP
  • difference with to TCP multihoming and the
    concept of several streams within a connection.
    Whereas in TCP a stream is referred to as a
    sequence of bytes, an SCTP stream represents a
    sequence of messages (and these may be very short
    or long).
  • References 1. SCTP for beginners
    http//tdrwww.exp-math.uni-essen.de/inhalt/forschu
    ng/sctp_fb/index.html as of Oct 12/2006
  • 2. http//www.sctp.org/ 3. RFC2960

76
Uses of SIP
  • enables disparate computers, phones, televisions
    and software to communicate.
  • Through SIP, Users can locate and contact one
    another regardless of media content and numbers
    of participants. SIP negotiates sessions so that
    all participants can agree on and modify session
    features. It can even add, drop or transfer
    users.
  • VoIP telephony
  • voice-enriched e-commerce
  • web page click-to-dial
  • Instant Messaging with buddy lists
  • Rich media conferencing

77
Session Initiation Protocol
  • SIP does not provide Conference Control. For
    VoIP, besides SIP, the following standards and
    protocols are used
  • to ensure transport (RTP),
  • to authenticate users (RADIUS, DIAMETER),
  • to provide directories (LDAP) for location,
  • to be able to guarantee voice quality (RSVP,
    YESSIR)
  • to describe the payload of message content and
    characteristics Session Description Protocol
    (SDP) to describe the characteristics of the end
    devices.
  • to inter-work with today's telephone network,
    many ITU standards

78
A Brief HistoryReference Understanding SIP An
Ubiquity White paper http//www.sipcenter.com/sip.
nsf/html/WEBB5YNVK8/FILE/Ubiquity_SIP_Overview.pd
f
  • mid-1990s Henning Schulzrinne, Dept of CS at
    Columbia University Research in Multiparty
    Multimedia Session Control (MMUSIC).
  • Henning Schulzrinne A co-author of the
  • Real-Time Transport Protocol (RTP) for
    transmitting real time data via the Internet,
  • Real Time Streaming Protocol (RTSP) a proposed
    standard for controlling streaming audio-visual
    content over the Web.
  • 1996 He submitted the first draft of SIP to IETF

79
A Brief History ..2
  • 1999 Henning Schulzrinne removed extraneous
    components regarding media content in a new
    submission and IETF issued the first SIP
    specification, RFC 2543.
  • 2001 Updated SIP specification RFC 3261
  • RFC 3262 governs Reliability of Provisional
    Responses RFC 3263 establishes rules to locate
    SIP Proxy Servers RFC 3264 provides an
    offer/answer model RFC 3265 determines specific
    event notification.

80
Addresses Examples of SIP Formats
  • SIP addresses in multiple formats
  • E-mail address sipjohn_at_hotmail.com
  • IPv4 address sipjohn_at_137.207.125.71
  • Tel Number sipjohn_at_519-253-3000
  • SIP uses Session Description Protocol for details
    like
  • media encoding,
  • port numbers and
  • multicast addresses etc.

81
Finding the IP address of a Callee
  • If IP address of a Callee is not known
  • The Callee not at her/his terminal
  • The Callee connects to Internet through DHCP and
    does not have a permanent IP address,
  • SIP uses a DNS-like mechanism to find it.

82
User Agents (UAs) and Registrar Servers (RS)
  • UA end-user device, used to initiate and manage
    a session. UA Client initiates the session
    request and UA Server responds to it.
  • RS a database containing the location of all
    user agents within a domain. Every user must be
    registered with at least one RS at any time. RS
    knows the IP address of the user.

83
Proxy Servers (PS) and Redirect Servers
  • PS accepts the request from UAs and query RS to
    obtain the addressing information. It then sends
    the information
  • to the UA, if it is lying in the same domain.
  • Or to another PS, if the UA is in some other
    domain.
  • Redirect Servers allow PS to send the session
    information to external domains.

84
Finding the IP address of the Callee
Using Proxy server and RS
  • ASSUME The Caller does not know the IP address
    of the Callee. But e-mail address of the Callee
    is known.
  • Caller sends an INVITE message with e-mail
    address to the Proxy Server (PS).
  • PS sends a look-up message to RS.
  • RS responds with the IP address of the Callee.
  • PS inserts the IP address in INVITE and sends it
    to Callee.

85
Messages of SIP
  • SIP MESSAGES The Caller uses INVITE to
    initialize a session.) ? The Callee answers the
    call ? The Caller sends an ACK as a confirmation.
    ? BYE used for termination.
  • OPTIONS This message queries a machine about its
    capabilities.
  • CANCEL cancels an initialization process, which
    had been started.
  • REGISTER makes a connection, when the Callee is
    not available.

86
A SIP Session
  • Establishing a connection (directly or through
    PS)
  • Caller send INVITE address options to Callee.
  • Callee responds with OK address.
  • Caller sends ACK message to Callee
  • Data Transfer between Caller and Callee through
    ephemeral ports
  • Termination Caller or Callee can send a BYE
    message to terminate the session.

87
SIP session in the same domain
88
SIP session in the same domain 2
89
SIP session in dissimilar domains
90
SIP session in dissimilar domains 2
91
SAP Session Ref RFC 3261
92
SIP
  • SIP may use UDP/TCP/SCTP (Stream Control
    Transmission Protocol)
  • References
  • SIP RFC 3261
  • http//www.sipcenter.com/sip.nsf/html/WhatIsSIP
    Introduction

93
H.323 an ITU standard
Gatekeeper
Gateway
Internet
Telephone Network
94
H.323 Definitions
  • Terminals computers connected to Internet
  • Gateway 5 layer-device, which converts from one
    type of protocol to another
  • Gatekeeper plays the role of Registrar Server

95
H.323uses G.71 and G.723.1 for compression.
Audio Audio Audio Control and Signaling Control and Signaling
Compression Code RTCP H.225 For registration with Gatekeeper Q.931 To set up and to terminate connection H.245 For negotiating about compression protocol
RTP RTCP H.225 For registration with Gatekeeper Q.931 To set up and to terminate connection H.245 For negotiating about compression protocol
UDP UDP UDP TCP TCP
IP IP IP IP IP
96
H.323 Operation
  • Terminal (T) sends a broadcast message to
    Gatekeeper (G) ? G responds with an IP address.
  • T and G use H.225 to negotiate BW.
  • T,G, gateway and telephone use Q.931 to set up a
    connection.
  • T,G, gateway and telephone use H.245 to negotiate
    the compression method.
  • T, G and telephone exchange audio using RTP,
    under management of RTCP.
  • T,G, gateway and telephone use Q.931 to terminate
    the communication.

97
Authentication, Authorization Accounting
(AAA)
servicesReferencehttp//searchsecurity.techtarge
t.com/sDefinition/0,,sid14_gci514491,00.html
  • An AAA server a server program that
  • handles user requests for access to computer
    resources and
  • provides AAA services for an enterprise.
  • The AAA server interacts with
  • network access and gateway servers and with
  • databases and directories containing user
    information.
  • The current standard by which devices or
    applications communicate with an AAA server
    Remote Authentication Dial-In User Service
    (RADIUS).

98
RADIUSRefhttp//searchsecurity.techtarget.com/sD
efinition/0,,sid14_gci214249,00.html and RFC
2865
  • a client/server protocol and software that
    enables remote access servers to communicate with
    a central server
  • to authenticate dial-in users and
  • to authorize their access to the requested system
    or service.
  • permits setting up a policy that can be applied
    at a single administered network point.
  • Makes it easier to track usage for billing and
    for keeping network statistics.
  • Created by Livingston (now owned by Lucent).
  • User profiles for RADIUS in a central database
    that all remote servers can share.
  • Uses UDP port 1812

99
  • The use of encrypted passwords appears
    reasonably secure, in the
  • absence of serious attention of experts in the
    field.
  • ---Morris and Thompson, Password
    Security A Case History (1979)

100
Procedures
  • 1. USER AUTHENTICATION PASSWORDS
  • Problem Password Guessing Made easier by the
    following practices
  • joe accounts.
  • Accounts that use the account name as the
    password.
  • Guest or demonstration accounts that require no
    password, or use a well-publicized password.
  • System accounts with default passwords.
  • User who tell their passwords to others.

101
Procedures (continued)
  • Intruders method dictionary guessing uses a
    program that encrypts each word in a dictionary
    (e.g., /usr/dict/words) and compares each
    encrypted word to the encrypted password in the
    /etc/passwd file. Besides the words from a
    dictionary things known about the target (his
    name, initials, telephone number, etc.) are also
    run through the guessing program.
  • Solution
  • a password 6 characters, a random mix of
    numbers and letters, that can be remembered
    easily
  • Protect the /etc/passwd file.
  • Or use the shadow password file for hiding the
    encrypted passwords.

102
Procedures (continued)
  • The Shadow Password File
  • The encrypted password is stored only in the
    shadow password file, /etc/shadow, and not in the
    /etc/passwd file. Every password field in the
    /etc/passwd file contains an x, which tells the
    system to look in the shadow file for the real
    password. The passwd file is maintained as a
    world-readable file because it contains
    information that various programs use.
  • The shadow file can only be read by root. It only
    contains passwords and the information needed to
    manage them.

103
Procedures (continued)
  • ExampleThe format of a shadow file entry on a
    Solaris system is
  • usernamepassword lastchgminmaxwarninactive
    expireflag
  • username login username
  • password the encrypted password
  • or NP ( NP no password because
    this is not a login account. System accounts,
    such as daemon or uucp, are not login accounts,
    so they have NP in the password field.)
  • or LK for locked accounts that
    have been disabled from any further use.

104
Password Aging
  • The following four fields are used for PASSWORD
    AGING
  • Lastchg the date that the password was last
    changed, written as the number of days from
    January 1, 1970 to the date of the change
  • Min the minimum number of days that must elapse
    before the password can be changed
  • Max the maximum number of days the user can keep
    the password before it must be changed
  • Warn the number of days before the password
    expires that the user is warned

105
Password Aging (continued)
  • inactive the number of days the account can be
    inactive before it is locked Inactivity measured
    in terms of the number of days the account
    continues with an expired password
  • Expire the date on which the account will be
    closed for creating accounts with a specified
    life-time
  • Flag unused.

106
Password Authentication Protocol (PAP)
  • Point-to-Point Protocol (PPP) supports two
    authentication protocols
  • PAP and Challenge Handshake Authentication
    Protocol (CHAP).
  • PAP requires clear text PW.
  • If the authentication is at the local host, OK.
  • Otherwise a listener on the line may be able to
    find the PW.
  • So the idea of one-time PW, which have to be used
    only once.

107
One-time Passwords In Everything (OPIE)
Procedure
  • With OPIE software loaded on your machine, supply
    the old password. The user is asked to select a
    new secret 10 character password.
  • Then the system comes out with the following
  • A one-time PW consisting of a group of six short,
    uppercase character strings
  • An initial sequence number and the seed

108
OPIE Procedure (continued)
  • The secret PW, the ISN and the seed can be
    used on your desktop to generate the next
    one-time PW.
  • If one has to go out, one can generate a
    number of one time passwords.
  • One time passwords can also be generated with a
    smart card.

109
Challenge Handshake Authentication Protocol
(CHAP)
  • an advanced authentication system that can
    repeatedly re-authenticate a remote system The
    procedure
  •     (i)  The user is sent a randomly generated
    string.
  •     (ii)  The user uses a secret PIN and his pass
    word to generate a response-string.
  • The authenticator checks the response-string and
    authenticates the user.

110
Procedures (continued)
  • 2. APPLICATION SECURITY
  • (i) Remove unnecessary software.
  • Any software that allows a remote site to log
    in to your system, can be exploited by an
    intruder.
  • (ii) Keep the software up-to-date.
  • 3. ACCESS CONTROL
  • It adds a check to validate the source of a
    service request, and retains all of the normal
    checks to validate the user.
  • TCP wrapper a software that
  • logs requests for Internet services, and
  • provides an access control mechanism

111
References
  • 1. PPP Authentication Protocols
    http//www.tcpipguide.com/free/t_PPPAuthentication
    ProtocolsPasswordAuthenticationPr.htm as of 22
    Oct 06
  • 2. PPP Authentication Using the ppp chap
    hostname and ppp authentication chap callin
    Commands http//www.cisco.com/en/US/tech/tk713/t
    k507/technologies_configuration_example09186a00800
    94333.shtml as of 22 Oct 06
  • 3. Understanding and Configuring PPP CHAP
    Authentication http//www.cisco.com/warp/public/
    471/understanding_ppp_chap.html as of 22 Oct 06
Write a Comment
User Comments (0)
About PowerShow.com
