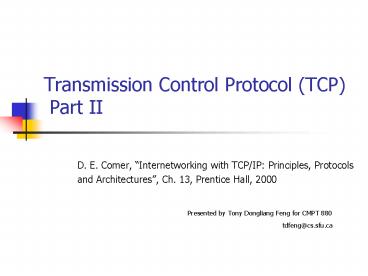

Title: Transmission Control Protocol TCP Part II


1
Transmission Control Protocol (TCP) Part II
  • D. E. Comer, Internetworking with TCP/IP
    Principles, Protocols and Architectures, Ch. 13,
    Prentice Hall, 2000
  • Presented by Tony Dongliang Feng for CMPT 880

  • tdfeng_at_cs.sfu.ca

2
Road Map
  • TCP congestion control
  • Silly Window Syndrome
  • TCP connection management

3
TCP Congestion Congest Collapse
  • Congestion a condition of severe delay caused by
    an overload of datagram at one or more switching
    points (routers)
  • Congestion Collapse Retransmissions aggravate
    congestion instead of alleviating it

4
How TCP Can Help?
  • Remember TCP is an end-to-end protocol,
    endpoints do not know the details of where
    congestion has occurred or why
  • What TCP knows? Increased delay
  • What can TCP do? the rate of transmission, window
    size, timeout value

5
Response To Congestion
  • Two recommended techniques
  • multiplicative decrease
  • slow start

6
Congestion Window
  • At any time, TCP window size
  • Allowed_window min(receiver_advertisement,
    congestion_window)
  • In a steady state of non-congested connection,
    congestion window size equals to receiver window
    size
  • Reducing the congestion window reduces the
    traffic TCP will inject into the connection

7
How to Estimate Congestion Window Multiplicative
Decrease
  • Idea upon loss of a segment, reduce the
    congestion window by half (down to a minimum of
    one segment). For those segments that remain in
    the allowed window, back-off the retransmission
    timer exponentially
  • If loss continues, TCP eventually limits
    transmission to a single segment and continue to
    double timeout before retransmission

8
How To Recover When It Ends?
  • Why not reverse the process? Meaning
    multiplicative increase and double the congestion
    window?
  • Slow Start (additive) Recovery whenever starting
    traffic on a new connection or increasing traffic
    after a period of congestion, start the congest
    window at the size of 1 segment and increase the
    congestion window by 1 segment each time an
    acknowledgement arrives

9
Is slow start really slow?
A
B
  • The answer is NO
  • Example
  • Initially, cwnd1, send one segment
  • After receiving 1 ACK, cwnd2, send two segments
  • After receiving two ACKs, cwnd4, send four
    segments
  • continue on
  • It takes only Log2N round trips before TCP can
    send N segments

10
One Additional Restriction Congestion Avoidance
Phase
  • Once congestion window reaches one half its
    original size before congestion, TCP enters a
    congestion avoidance phase and slow down the rate
    of increment
  • During this phase, it increases the cwnd by 1
    only if all segments in the window have been ACKed

11
Congestion Control Summary
  • Together, slow start increase, multiplicative
    decrease, congestion avoidance, and exponential
    timer back-off improves the TCP performance
    dramatically without adding significant
    computational overhead

12
Congestion, Tail Drop and TCP
  • Tail-Drop Policy If the input queue is filled
    when a datagram arrives, discard the datagram.
  • Advantage Simple
  • Disadvantage Global Synchronization

13
Random Early Discard (RED)
  • Idea
  • Drop early to signal impending congestion
  • Algorithm

avg average queue size p discard probability
Tmin lower bound on avg to drop packets Tmax
upper bound on avg to not drop every packet
for each packet arrival calculate average
queue size avg if avg lt Tmin add the
packet to the queue else if Tmin lt avg lt
Tmax calculate discard probability p
drop arriving packet with probability p
else if Tmax lt avg drop the arriving
packet
14
Random Early Discard (RED) (2)
  • Calculating average queue size avg
  • Calculated using an exponentially weighted
    average of previous queue lengths
  • avg (1- ?) Old_avg ? Current_queue_size
  • The purpose of using an average queue size is to
    filter out transient congestion at the router

15
Random Early Discard (RED) (3)
  • Calculating the discard probability p
  • Tmin lower bound on avg to drop pkts
  • Tmax upper bound on avg to not drop every pkt
  • maxp the drop probability as avg approaches Tmax

1
P
maxp
0
avg
Tmin
Tmax
16
Silly Window Syndrome (SWS)
  • Example An application chooses to read incoming
    data one octet at a time, which can result sender
    sending one segment with one octet data
  • Summary Early TCP implementation exhibited a
    problem known as silly window syndrome in which
    each acknowledgement advertises a small amount of
    space available and each segment carries a small
    amount of data

17
Avoid SWS (1)
  • Receiver-side SWS avoidance
  • Before sending an updated window advertisement
    after advertising a zero window, wait for space
    to become available that is either at least 50
    of the total buffer size or equal to a maximum
    sized segment, whichever comes first

18
Avoid SWS (2)
  • Delayed Acknowledgements
  • TCP delays sending an acknowledgement when silly
    window avoidance specifies that the window is not
    sufficiently large to advertise
  • Pros decrease traffic, increase throughput
  • Cons delay ACKs can potentially trigger
    retransmission also confuse RTT estimates
  • Practice (1) delay should be no more than 500
    msec (2) receiver should ACK at least every other
    data segment

19
Avoid SWS (3)
  • At sender side, the goal is to avoid sending
    small segments
  • Clumping sending TCP must delay sending a
    segment until it can accumulate a reasonable
    amount of data
  • Challenges how long should TCP wait before
    transmitting data? A fixed delay is not optimal
    for all applications

20
Avoid SWS Nagle Algorithm (4)
  • Self clocking (sender side SWS avoidance)
  • When a sending application generates additional
    data to be sent over a connection for which
    previous data has been transmitted but not
    acknowledged, place the new data in the output
    buffer as usual, but do not send additional
    segments until there is sufficient data to fill a
    Maximum Sized Segment.
  • If still waiting to send when an ACK arrives,
    send all data that has accumulated in the buffer.
  • Apply this rule even when the user requests a
    PUSH operation

21
SWS Avoidance Summary
  • TCP now requires the sender and receiver to
    implement heuristics that avoid the silly window
    syndrome. A receiver avoid advertising a small
    window, and a sender uses an adaptive scheme to
    delay transmission so it can clump data into
    large segments

22
TCP Connection Management
  • Establishing a connection
  • Initial Sequence Number (ISN)
  • Closing a TCP connection
  • Connection Reset
  • TCP state machine

23
Three-way Handshake Protocol
B
A
Send SYN seqx
Receive SYN segment Send SYN, seqy, ACK x1
Receive SYN ACK segment Send ACK y1
Receive ACK segment
24
ISN Initial Sequence Number
  • Two tasks have been accomplished by 3-way
    handshaking
  • Both sides are ready to transfer data
  • Both sides agree on ISN, ISN is chosen randomly
  • How is it done in three messages?
  • A node chooses x, B node ACKs x1, which
    specifies the B will expect octet from x1
  • B node piggybacks his chosen ISN, y, on second
    message, with SYN set
  • A node ACKs this y by y1

25
TCP Closing Connection
A
B
Application close connection, send FIN seqx
Receive FIN segment, send ACK x1, inform
application
Receive ACK segment
Application close connection, send FIN seqy,
ACK x1
Receive FIN ACK segment, send ACK y1
Receive ACK segment
26
TCP Connection Reset
  • Normally, TCP closes connection, analogous to
    closing a file
  • Under abnormal conditions, an RST bit indicates
    immediate abort, resources such as buffers are
    released

27
TCP Finite State Machine
