Title: ECE U322 Digital Logic Design


1

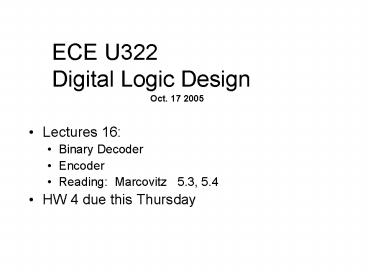

ECE U322Digital Logic Design
Oct. 17 2005
  • Lectures 16
  • Binary Decoder
  • Encoder
  • Reading Marcovitz 5.3, 5.4
  • HW 4 due this Thursday

2
  • Half Adder
  • Combinational circuit the performs the addition
    of two bits.
  • Full Adder
  • Combination circuit that performs the addition of
    three bits (two bits and a carry in).

3
Binary Ripple Carry Adder
  • The full adders are connected in cascade, with
    the carry output from one full adder connected to
    the carry input of the next-higher-order full
    adder.

4
Carry out and Overflow
  • 5, 7, -5, -7 represented as 4 bit, signed
    values
  • 0101 0111, 1011, 1001
  • 5 7
  • 0101
  • 0111
  • __overflow, __ carry out

5
How to build a binary subtractor
  • (A - B) A (2s complement of B)
  • Invert B inputs
  • Add 1 to A - B
  • Can set carry in to 1 to accomplish this

6
Binary subtractor
  • Binary subtractor using full adders
  • S A B A (2complement of B)

7
A 4-Bit Adder-Subtractor
8
An n-bit adder
Generalize the four bit adder to n bits
9
Carry-lookahead adder
  • First compute carry propagate, generate
  • Pi ai xor bi
  • Gi ai bi
  • Compute sum and carry from P and G
  • si ai xor bi xor ci Pi xor ci
  • ci1 Gi Pici

10
Depth-4 carry-lookahead
11
Decoders
  • n-bits represent 2n different combinations

12
Binary Decoder
  • Logic with n input lines and 2n output lines.
  • Only one output is a 1 for any given input.

13
  • truth table for 2 to 4 decoder
  • Note Each output is a 2-variable minterm (X'Y',
    X'Y, XY' or XY)

14
3-to-8-Line Decoder
15
(No Transcript)
16
(No Transcript)
17
Decoders
  • In general, for an n-bit code, a decoder could
    select up to 2n lines

18
Decoder Expansion
  • When a certain size of decoder is needed, but
    only smaller sizes are available.
  • It is possible to combine two or more decoders in
    a hierarchy.

19
Combinational Circuit Implementation
  • Decoders can implement any combinational circuit
    with n inputs and m outputs using a _____________
    decoder and ________ gates.

20
  • Example Implement a Binary Adder using a
    decoder.
  • Express as sum of minterms.

S(X,Y,Z) S m( ) C(X,Y,Z) S m(
)
21
  • Choose a decoder that implements all the minterms
    of the input variables.
  • Select inputs to each OR gate based on the list
    of minterms of each function.

22
Example
23
Encoder
  • 2n (or fewer) input lines and n output lines.
  • The output lines generate the binary code
    corresponding to the input value, assuming only
    one input is high.
  • An encoder is the reverse function of a decoder

24
8-to-3-line Encoder
8-to-3 Encoder
25
Example Octal-to-Binary Encoder
A0 A1 A2
26
Ambiguity
  • If two inputs are active simultaneously, the
    output produces an incorrect combination.
  • To resolve, some encoders use an input priority
    to ensure that only one input is encoded.
  • An output of all 0s is generated when all the
    inputs are 0. This is the same as when D0 is
    equal to 1.
  • This discrepancy can be resolved by providing one
    more output to indicate that at least one input
    is equal to 1. This is called the VALID output.

27
Priority Encoder
  • If two or more inputs are equal to 1 at the same
    time, the input with highest priority takes
    precedence.

28
Example
Truth Table of 4-Input Priority Encoder
29
Maps for Priority Encoder
30
(No Transcript)
31
Multiplexers
32
Multiplexers (MUX)
  • Data selector.
  • Selects binary information from one of many input
    lines to a single output line.
  • Selection inputs control which particular input
    line to select.
  • Normally, there are 2n input lines, n selection
    inputs, and one output.

33
(No Transcript)
34
Multiplexer
  • Four-to-one multiplexer contains a decoder.

35
Multiplexer
  • An application

Helps share a single communication line among a
number of devices. At any time, only one source
and one destination can use the communication
line.
36
Demultiplexer
  • Given an input line a set of selection lines,
    the demultiplexer will direct data from input to
    a selected output line.
  • An example of a 1-to-4 demultiplexer

37
Demultiplexer
  • The demultiplexer is actually identical to a
    decoder with enable, as illustrated below
