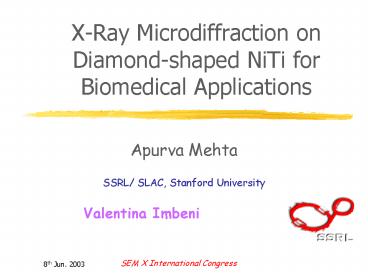

X-Ray Microdiffraction on Diamond-shaped NiTi for Biomedical Applications

1
X-Ray Microdiffraction on Diamond-shaped NiTi for
Biomedical Applications

• Apurva Mehta
• SSRL/ SLAC, Stanford University

Valentina Imbeni
2
New Boss
3
Collaborators

• Valentina Imbeni SRI
• Brad Boyce Sandia Labs
• Nobumichi Tamura LBL
• Xiao-Yan Gong, Alan Pelton, Tom Duerig NDC
• Rob Ritchies Group (Scott Robertson, Monica
  Barney) LBL/ UC Berkeley

4
MotivationMacroscopic ?---? Microscopic

• Understanding of Deformation and Failure of NiTi
  components at Local Level under Multiaxial
  Loading.
• Validation of Design Models.
• Towards Improved Models that include
• Austenite to Martensitic Phase Transition
• Mechanics Beyond Continuum Mechanics.

5
MotivationE.g., understanding Fatigue Tests

• Location of Fracture
• Increase of Fatigue Life Above 1.5 Strain !!

A. Pelton et. al. - NDC
6
Talk Outline

• What did we do?
• Methodology
• What did we find?
• Diamond in Compression
• Diamond in Compression Cycling
• Diamond in Tension
• Five New Insights

7
MethodologyLoad Cell
X-ray Beam

• Nitinol Tube 4.67mm OD with 0.38mm wall
• Laser machined
• Fully Annealed Grains 20-100 microns

FEA Simulations
8
MethodologyX-ray Microdiffraction
Bend Magnet Source (250x40mm)
CCD camera
4 Crystal Si(111) Monochromator
11 Toroidal mirror
11 image at slits
Elevation view
Sample on scanning XY stage
Plan view
Horizontal focusing K-B mirror
Vertical focusing K-B mirror
Schematic layout of the X-ray Microdiffraction
Beamline (7.3.3.) at the ALS
Beam size on sample 0.8x0.8 mm2 Photon energy
range 5-14 keV
9
MethodologyX-ray Microdiffraction-1 micron spot

• Ni Ti Fluorescence
• Austenite Diff. Pattern

Grain Map
Elastic Strain
Plastic Strain
NiTi Diffraction Patterns
10
Strain Tensors
In crystal reference frame
In Sample reference frame
exx exy exz
exy eyy eyz
exz eyz ezz
Crystal Orientation From Laue Patterns
11
Displacement ?? Strain
12
Findings
13
CompressionD 0 mm F 0 N
eyy
exx
14
CompressionD 0.5 mm F -0.393 N
eyy
exx
15
CompressionD 1.0 mm F -0.747 N
eyy
exx
16
CompressionD 1.5 mm F -1.080 N
eyy
exx
17
CompressionD 2.5 mm F -1.465 N
eyy
exx
18
CompressionD 3.7 mm F -1.543 N
eyy
exx
19
CompressionD 3.7 mm F -1.543 N
Austenite Martensite
eyy
Phase Map
20
Insight 1
Finite Elem. Analysis
Microdiffraction
X. Y. Gong et al.
3.7 mm compression
Qualitative agreement with FEA But Granular and
Speckled
21
Insight 2

• Local Strain Never exceeds 1.5
• NiTi Superelastic because the Aust. And Mart.
  Elastic region separated by a large region of
  Transformation Strain

22
Insight 3

• Strain relief on transformation
• Strain reversal

Nucleation energy
23
CompressionD 2.5 mm unload F -1.037 N
eyy
exx
24
CompressionD 0.0 mm unload F 0.282 N
eyy
exx
25
Load Cycling _at_3.7 mm
One Cycles 3.7- 0- 3.7 mm
Eleven Cycles 4.9 2.5 - 3.7 mm
Zero Cycles 0 3.7 mm
26
Insight 4

• On cycling Martensitic region grows.
• Growth Pattern unpredictable from FEA
• Strain relief as Martensite grows
• Explanation for increased Fatigue Life for
  macroscopic strains gt 1.5

27
Tension eyy
28
Insight 5

• Transformation front and hence stress hotspot
  changes direction, and traverses down the stem of
  the diamond.
• Failure occurs when the hotspot encounters a
  defect or weakness in the material. Location of
  failure maybe different from FEA prediction.

29
Summary

• Insights
• Strain map granular, martensite evolution
  speckled.
• In the superelstic region max stress doesnt
  exceed stress corresponding to 1.5 Austenite
  strain.
• Strain relief and strain reversal at the
  transformation front.
• On load cycling, the martensite region grows.
  Overall stress drops.
• Transformation and max stress front changes
  directions.
• Further Questions
• What is the crystallographic relationship between
  the Martenite and the Austenite phase?
• What happens around a crack tip?

30
Crystallographic Relationships
31
