Unisys Mobile CommHub

1

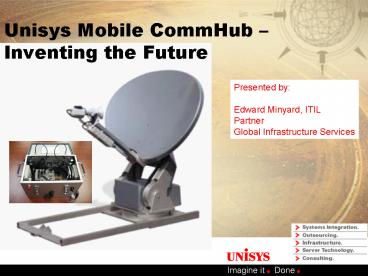

Unisys Mobile CommHub Inventing the Future
Presented by Edward Minyard,
ITIL Partner Global Infrastructure Services
2
Unisys Mobile CommHub

• Genesis of the Solution
• Developed by Unisys to meet the requirements of a
  high profile client (PANYNJ)
• Provide a communications platform with high
  degree of flexibility and network redundancy
• Capable of extending Emergency Operations Center
  (EOC) intranet to emergency scene
• To be deployed with first responders in hostile
  environments
• When intra- and inter-site communications is
  imperative
• even when terrestrial communications
  infrastructure has been compromised

3
Unisys and The Port Authority of New York New
Jersey

• The Port Authority of New York and New Jersey is
  relying on Unisys Corporation's CommHub to help
  its response teams coordinate activities in real
  and potential emergencies.
• Unisys CommHub enables the Port Authority's first
  response teams to stay connected with emergency
  operations centers and each other during
  incidents at airports, bridges, tunnels, bus
  terminals, seaports and other facilities it
  manages within a 25-mile radius of the Statue of
  Liberty - the nation's largest metropolitan area.

4
Port Authority of NY NJ

• PANYNJ has deployed the CommHub in real-world
  responses
• Republican National Convention
• Recent airplane crash at Teeterboro Airport
• PANYNJ continues to evaluate advanced uses for
  the CommHub
• Port security
• Coast protection

5
Unisys Mobile CommHub

• Solution Overview
• Designed as a mobile wireless solution Hence
  Communications Hub or CommHub
• Inherent connection recovery with multiple WAN
  links
• Modular architecture for flexible configuration
• Radio / WAN agnostic
• Neutral platform for maximum flexibility
• Designed to meet vast user requirements
• Standards based platform

6
Unisys Mobile CommHub

• System Architecture
• System core is based on Cisco Mobile Access
  Router (MAR) and Mobile IP (MoIP) routing
  protocol
• MoIP developed to maintain single IP address as
  end user device travels from one network
  connection to another. Analogous to cell phones
  roaming from cell to cell

7
Unisys Mobile CommHub

• Details of the Solution
• 802.11b wireless LAN bubble within the
  surrounding area of the equipment. Provides
  intra-site communications amongst community of
  users and resources at site
• Multiple WAN wireless links for inter-site
  connectivity emergency scene (ES) and EOC, ES
  and Internet, ES and others
• (2) Independent cellular data networks
• (1) Satellite IP network

8
Unisys Mobile CommHub

• Details of the Solution (cont.)
• Server/Laptop to provide computing platform at ES
• Auto-tracking VSAT dish for automated deployment
  and ease of use
• Automated setup, just power on the system allows
  first responders to respond and not be system
  operators

9
Unisys Mobile CommHub

• Details of the Solution (cont.)
• Includes cutting edge Breadcrumb technology.
• Allows 802.11b LAN to be extended via wireless
  mesh technology.
• Benefits rescue missions by allowing first
  responders to stay wirelessly connected as they
  penetrate deep into emergency scene such as
• tunnels, caves, stairs, basements, subway/trolley
  stations, etc.
• Rugged container for electronics
• Low power consumption

10
Unisys Mobile CommHub

• Details of the Solution (cont.)
• Demonstrated Capabilities
• VoIP 802.11b LAN
• IP video streaming 802.11b LAN and satellite
  WAN
• Video Tele-conferencing over the satellite WAN
• VPN connectivity satellite and cellular WAN
• Web browsing satellite and cellular WAN

11
Unisys Mobile CommHub

• Interoperability
• Standards based platform
• IP
• Windows
• GPRS, CDMA, Satellite communications
• 802.11 LAN/WAN
• Operations in a Multi-agency exercise
• IP video broadcast from mock scene viewed by
  multiple agencies in real time.
• File transfer to and from mock scene from
  multi-agency portal
• Solid infrastructure platform to build
  interoperability at application layer

12
Unisys Mobile CommHub Inventing the Future

• Compact
• Lightweight
• Person-transportable

13
Unisys Mobile CommHub
14
EOC
Hospital
15
(No Transcript)
