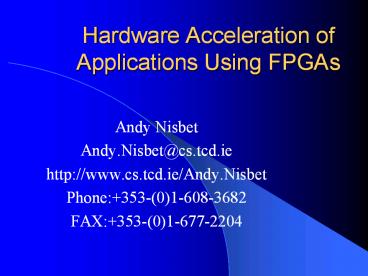

Hardware Acceleration of Applications Using FPGAs

1
Hardware Acceleration of Applications Using FPGAs

• Andy Nisbet
• Andy.Nisbet_at_cs.tcd.ie
• http//www.cs.tcd.ie/Andy.Nisbet
• Phone[phone]
• FAX[phone]

2
Content

• FPGAs?
• High-level language hardware compilation.
• High Performance Computing Using FPGAs???
• HandelC.
• Research Directions at Trinity College using
  FPGAs.

3
FPGAs

• FPGAs can be configured after the time of
  manufacture.
• Configurable logic blocks, input/output blocks
  for connecting to external microchip pins and
  programmable interconnect.
• Logic blocks can be configured/interconnected to
  form simple combinatorial logic structures,
  complex functional units.
• FPGAs can be used to provide a standalone
  solution to a task, or they can be used in tandem
  with a conventional microprocessor.

4
FPGA Development Boards
5
How are FPGAs Programmed

• Conventional techniques use VHDL or Verilog.
  Require many low-level hardware details.
• Synthesis tools can then convert the HDL into an
  EDIF netlist which can be placed and routed onto
  an FPGA device. A bit/configuration file is
  produced.
• High-level languages such as HandelC and
  SystemC. A hardware compiler translates the
  specification into VHDL/Verilog, or an EDIF
  netlist.

6
Why use an FPGA?

• Conventional microprocessors have a fixed
  architecture.
• FPGAs can generate application specific logic
  where the balance and mix of functional units can
  be altered dynamically.
• The number and type of functional units that can
  be instantiated on an FPGA are only limited by
  the silicon real estate available.
• Potential to generate orders of magnitude speedup
  for computationally intensive algorithms, such as
  in signal/image-processing.
• Maximum clock speed of FPGA is lt 400MHz, designs
  often 50MHz.

7
High Performance Computing using FPGAs

• Current FPGAs can instantiate multiple
  floating-point units. Applications work has
  focussed on using integer and fixed-point
  arithmetic.
• Logarithmic Number System (LNS) ALU has single
  20/32 bit precision with very small area in
  comparison to standard floating-point units.
• Performance benefits for this system have already
  been demonstrated over Texas Instruments
  TMS320C3/4x 50MHz DSP processors on a 2million
  gate Xilinx FPGA device.

8
LNS on XC2V8000

• 14 independent 32bit ALUs (2-3GFlop Peak
  Estimate).
• 336 independent 20bit ALUs (20-40GFlop Peak
  Estimate).
• Clock 60 MHz (predicted), ADD and SUB latency 6
  cycles, pipelined. MUL,DIV,SQRT gtdepends just on
  the number of parallel 32bit adders, subtractors
  or bit shifters.

9
HandelC

• Provided by Celoxica http//www.celoxica.com/
• Based on CSP/OCCAM (were not showing CSP aspects
  in this talk!)
• C with hardware extensions.
• Enables the compilation of programs into
  synchronous/clocked hardware.
• Many other similar systems SystemC, Forge, JHDL,
  SA-C

10
HandelC

• Fork-join model of parallel computation, parallel
  statements are placed in a par block.
• CSP aspect uses channels, useful for multiple
  clock domains.
• Each statement takes ONE clock cycle to execute.
• Clock cycle is determined after place and route
  and is 1/(longest logic gate routing delay).

11
HandelC Simple Example
// Original code takes one LONG clock
cycle. unsigned int 32 x,a,b,c,d,e,f,g,h x a
b c d e f g h // Parallelise and
pipeline into something taking 3 SHORT
cycles par // all statements inside the par
block are executed in parallel temp1
ab temp2 cd temp3 ef temp4
gh // position 1 SYNCHRONISATION????? sum1
temp1temp2 sum2 temp3 temp4 // position
2 SYNCHRONISATION????? x sum1sum2
12
Porting/Optimising Applications for HandelC

• Define variable storage bit width, off-chip
  SRAM, on-chip FPGA synthesised registers/RAM/Block
  RAM.
• Replace floating-point with LNS or fixed-point
  arithmetic.
• Iterative optimisation process, apply high-level
  restructuring transformationsgtsee file.HTML

13
Efficient HandelC

• Replace parallel for loops with parallel while
  loops. The loop increment can then execute in
  parallel.
• Avoid the use of n-bit (n gtgt 1) comparators
  lt,lt,gt,gt and single-cycle multipliers.
• Parallelise and pipeline code as far as possible.
• Use dedicated on-chip resources such as
  multipliers (interface command/VHDL/Verilog).
• Sequential statements not on the critical path
  can share functional units in order to reduce
  area requirements.
• Optimise variable storage-- registers,
  distributed RAM, block RAM, or off-chip in SRAM.

14
For -gt While
unsigned int 8 i for(i 0 i lt 255 i)
par // becomes unsigned int 1
terminate 0 while(!terminate) par
terminate (i 254) i
15
Variable Storage
unsigned int 32 i // REGISTER unsigned int 23
j40 // ARRAY of REGISTERs (fully
associative) ram unsigned 8 myRAM16 // single
port DISTRIBUTED RAM mpram // dual port
DISTRIBUTED RAM ram unsigned int 8
readWrite16 // R/W rom unsigned int 8
readOnly16 // could be ram as well
myMPRAM //to minimise logic for access to
RAMs/ROMs USE registers myRamaRegister
aRegisterDataValue // Adding with block 1
Makes BLOCK RAM ram unsigned int 8 myBlockRAM16
with block 1 ram unsigned in 21
twoDim128 par twoDim0aReg 0
twoDim1aReg 1
16
FPGA Research at TCD.

• Interactive/Automatic iterative conversion from C
  to HandelC/SystemC/FORGE, prototype using
  SUIF/NCI (with David Gregg).
• Application studies using lattice QCD, image
  segmentation, image processing (with Jim Sexton,
  Simon Wilson Fergal Shevlin). Collision
  detection and telecommunication applications.
• FPGA/SCI work, (Michael Manzke).
• Exploitation of striped CPU FPGAs.
• Numerical stability? Floating to 20/32 bit LNS
  and fixed-point.
• New work, no results (yet!) focussed on compute
  bound applications, as PCI has poor IO.
