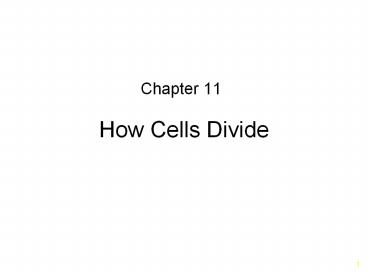

How Cells Divide

1
How Cells Divide

• Chapter 11

2
Outline

• Cell Division in Prokaryotes
• Discovery of Chromosomes
• Structure of Chromosomes
• Phases of the Cell Cycle
• Interphase
• Mitosis
• Cytokinesis
• Cell Cycle Control
• Cancer

3
Cell Division in Prokaryotes

• Prokaryotic cell division occurs as binary
  fission in which cell divides into two halves.
• Genetic information exists as a single, circular
  double-stranded DNA molecule.
• Copying begins at replication origin, and
  proceeds bi-directionally.
• One genome ends up in each daughter cell.

4
Binary Fission
5
Discovery of Chromosomes

• All eukaryotic cells store genetic information in
  chromosomes.
• Most eukaryotes have between 10 and 50
  chromosomes in their body cells.
• Human cells have 46 chromosomes.
• 23 nearly-identical pairs

6
Structure of Chromosomes

• Chromosomes are composed of a complex of DNA and
  protein, chromatin.
• heterochromatin - not expressed
• euchromatin - expressed
• DNA exists as a single, long, double-stranded
  fiber extending chromosomes entire length.
• forms nucleosome every 200 nucleotides
• DNA coiled around histone proteins

7
Eukaryotic Chromosomal Organization
8
Structure of Chromosomes

• Karyotype - Individuals particular array of
  chromosomes.
• diploid - A cell possessing two copies of each
  chromosome (human body cells).
• Homologous chromosomes are made up of sister
  chromatids joined at the centromere.
• haploid - A cell possessing a single copy of each
  chromosome (human sex cells).

9
Chromosomes
10
Phases of the Cell Cycle

• Five phases of cell division
• G1 - primary growth phase
• S - genome replicated
• G2 - secondary growth phase
• collectively called interphase
• M - mitosis
• C - cytokinesis

11
Cell Cycle
12
Interphase

• G1 - cells undergo majority of growth
• S - each chromosome replicates to produce sister
  chromatids
• attached at centromere
• contains attachment site (kinetochore)
• G2 - chromosomes condense
• assemble machinery such as centrioles

13
(No Transcript)
14
Mitosis

• Prophase
• spindle apparatus assembled
• Microtubules connect kinetochores on each pair of
  sister chromatids to the spindle poles.
• nuclear envelope breaks

15
(No Transcript)
16
Mitosis

• Metaphase
• chromosomes align in cells center
• metaphase plate
• Spindle forms with spindle fibres

17
(No Transcript)
18
Mitosis

• Anaphase
• sister chromatids pulled toward poles
• poles move apart
• centromeres move toward poles
• microtubules shorten
• Telophase
• spindle disassembles
• nuclear envelope forms around each set of sister
  chromatids

19
(No Transcript)
20
Cytokinesis

• Cleavage of cell into two halves
• animal cells
• constriction belt of actin filaments
• plant cells
• cell plate
• fungi and protists
• mitosis occurs within the nucleus

21
Cytokinesis
22
Cell Cycle Control

• Two irreversible points in cell cycle
• replication of genetic material
• separation of sister chromatids
• Cell can be put on hold at specific checkpoints.

23
Cell Control Cycle

• G1 / S - primary division decision point
• G2 / M - commitment to mitosis
• Spindle checkpoint - all chromosomes are attached
  to spindle

24
Growth Factors and the Cell Cycle

• Each growing cell binds minute amounts of
  positive regulatory signals (growth factors) that
  stimulate cell division.
• If neighboring cells use up too much growth
  factor, there is not enough left to trigger cell
  division.
• Growth factors trigger intercellular signaling
  systems.

25
Cancer and Cell Proliferation

• Cancer is essentially a failure of cell division
  control (unrestrained, uncontrolled cellular
  growth).
• gene p53 plays a role in G1 checkpoint
• halts cell division if detects damaged DNA and
  stimulates activity of repair enzymes
• appears to be absent in many cancerous cells

26
Growth Factors and Cancer

• Growth factors influence cell cycle
• proto-oncogenes - normal cellular genes that
  become oncogenes when mutated
• positive approach that stimulates cell growth
• tumor-suppressor genes - negative approach that
  inhibits cell division

27
(No Transcript)
