Remote Sensing ' Lecture 7

1

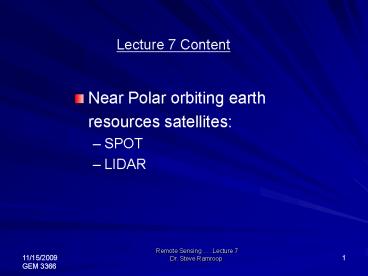

Lecture 7 Content

• Near Polar orbiting earth
• resources satellites
• SPOT
• LIDAR

2

• SPOT
• LANDSAT system suffered three major drawbacks
• Very high ground resolution is not possible with
  the mechanical MSS used
• The repetition time for any one scene is quite
  long, 18 or 16 days per satellite. Satellites
  have limited operational value especially when
  data is needed for monitoring purposes.
• Stereoscopic viewing is only possible in narrow
  image overlaps, and the accuracy of height
  estimation is low

3

• SPOT
• French tackled these drawbacks as follows
• It was decided to use a pushbroom scanner. Not
  only can modern pushbroom scanners provide high
  resolution, they have a longer and more reliable
  life expectancy, lower power requirements, and
  higher geometric and radiometric accuracy
• Mirrors make off-nadir viewing possible which
  allow any area to be viewed frequently. Oblique
  viewing allowed for stereoscopic viewing

4

• SPOT satellite characteristics
• SPOT in the first earth resource satellite to be
  launched from Europe
• Other characteristics of SPOT which are similar
  to LANDSAT
• Near-polar sun synchronous orbit
• Transmission of data to ground stations with the
  possibility of on-board recording
• SPOT sensors can sense in high resolution (10m)
  panchromatic mode or lower resolution (20m)
  multispectral mode in 3 wavelengths

5

• A single SPOT scene covers a geographical
• area of 60 x 60 km.
• Two alternative modes of imaging are possible
  using
• SPOT
• Panchromatic black and white, with a ground
• resolution of 10 m
• Multispectral colour, with 20 m ground
• resolution acquired simultaneously in 3 bands

• green, red and near infrared.

6
(No Transcript)
7
(No Transcript)
8

• In a MSS it scans the scene from side to side and
  reflects radiation from the ground surface onto a
  detector
• This process is limited by the accuracy of the
  rotating mirror
• To overcome this problem a HRV (High Resolution
  Visible) scanner is used in SPOT. It does not
  have any moving parts, instead, it records each
  scan line at one go by means of a line of
  detectors one detector for each area sampled on
  the ground
• Detectors are controlled by a microchip and
  controls 1,728 detectors on SPOT

9

• Comparison between pushbroom scanner and MSS

10

• SPOT 1 and SPOT 2 available and launched in 1985
  and 1986 respectively
• SPOT 1 carry two identical pushbroom scanners
  which are called High Resolution Visible (HRV)
  scanners
• When in panchromatic mode all of the detectors
  are sampled with a spatial resolution of 10m
• Used for mapping scales of 1150,000 to 1100,000
• When in multispectral mode only half of the
  detectors are sampled with a spatial resolution
  of 20m
• Used for pollution monitoring to vegetation
  mapping

11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
SPOT ground receiving stations
15
(No Transcript)
16
(No Transcript)
17
SPOT Panchromatic
18
SPOT Multispectral
19

• LIDAR
• Light Detection And Ranging (LIDAR)
• It is a radiometer system that uses a light beam
  in stead of a microwave radar beam (Radar) to
  obtain measurements of speed, altitude, direction
  and range of a target
• Lidars are used to precisely measure distances
  and properties of far-away objects
• Its operation is that a powerful laser transmits
  a short and intense pulse of light
• Very high spatial resolution, for example a DEM
  was created of a complete coverage of the
  Netherlands at a spatial resolution of 1 cm
  (Introduction to LIDAR, 1997).

20

• Use of LIDAR for accurate determination of
  terrain elevations began in the late 1970s but
  their use was limited due to project
  cost-effectiveness
• One of the most successful early applications of
  LIDAR was in the determination of accurate water
  depths
• Modern LIDAR acquisition makes use of a rapidly
  pulsing (20,000 to 50,000 pulses/sec) laser and a
  highly accurate clock to measure time
• The principle of LIDAR is similar to that of
  RADAR
• Further details in lecture 10

21
LIDAR image at ground zero NY
22

• Lidar Applications
• Atmospheric science
• - dynamics measurements temperatures, winds,
  and waves- climate measurements clouds,
  aerosols, and water vapor- ozone measurements
  depletions and polar stratospheric clouds- high
  altitude trace metal measurements sodium and
  potassium- pollution monitoring
• Astronomy
• planetary surface relief mapping (eg lidar Mars
  maps by NASA)
• Topographic mapping
• erosion monitoring
• Bathymetry (under water mapping)
• harbor profiling for marine safety

23

• Forest ground and canopy measurements
• used to assess forest growth and health
• Building and factory construction
• measurements allow for precise prefabrication,
  improving efficiency and reducing costs
• Mine shaft mapping
• allows cavern monitoring for worker safety
• Aircraft docking
• for safe aircraft maneuvering near airport
  terminals
• Automobile speed monitoring
• a replacement for hand-held radar guns

24

• The End
