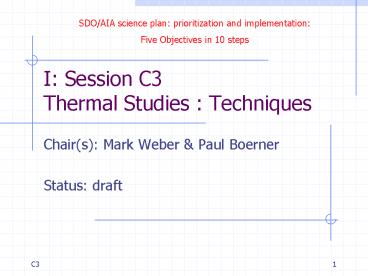

I Session C3Thermal Studies Techniques
  • Chair(s) Mark Weber Paul Boerner
  • Status draft

2
Guidelines to group leads
  • Assess the task definitions in appendix A (AIA
    Science Plan) in the 2004 Concept Study Report
    (CSR). In particular
  • Science/task descriptions in Ch. A1.1
  • Summaries in Table A2
  • Identify required changes from, and additions to,
    the AIA Science Plan
  • Evaluate the status of that plan, and formulate
    changes, if needed.
  • You may add as many pages to this document as you
    need, but
  • Add pages under the same headings please, do not
    change the roman numerals in the page titles,
    please add a, b, c, d,
  • Resources
  • AIA home http//aia.lmsal.com/
  • AIA CSR summary http//aia.lmsal.com/public/CSR.h
    tm
  • CSR https//aia.lmsal.com/doc?cmdvcurproj_numA
    IA00435
  • Proposal https//aia.lmsal.com/doc?cmdvcurproj_
    numAIA00341

3
Schedule
  • 17 November 2005 draft sheets I, II to teams,
    requesting input for sheets III and IV
  • 24 November 2005 completed sheets I-IV for
    review to teams, requesting input for sheets V-VI
  • 8 December 2005 team input received for sheets
    V-VI
  • 19 December 2005 draft of sheets VII-VIII to
    teams
  • 9 January 2006 team comments received for sheets
    VII-VIII
  • 6 February 2006 draft Science plans on meeting
    website, with sheets IX-X filled out by team
    leads (or teams after telecons)
  • 13-17 February 2006 discussions during science
    team meeting discuss and complete pages IX-X.
  • 17 February completed Science plans on line.

4
IIa Science questions and tasks (from CSR)
  • Primary scientific questions
  • Objective 2 Study coronal heating and
    irradiance, and the origins of the thermal
    structure and coronal emission, to understand the
    basic properties of the solar coronal plasma and
    field, and the spatially-resolved input to solar
    spectral irradiance.
  • SDO/AIA science tasks
  • Task 2B Characterize the physical properties of
    coronal structures

5
IIb Science questions and tasks (DEM recovery)
  • DEM recovery offers a description of the thermal
    structure along a line of sight, which allows us
    to
  • distinguish overlapping structures in the
    optically-thin corona
  • distinguish between plasma motion and heating
  • identify the location and magnitude of heating
    and cooling events
  • track plasma topology and connectivity
  • relate morphology and dynamics observed in the
    corona with AIA to irradiance observed with EVE

6
IIIa Science context
  • There are a number of upcoming advances that
    should leave us in a better position to do
    thermal studies when SDO launches than we are
    now
  • Observations with broader spectral (and thermal)
    coverage, particularly from SOLAR-B EIS and XRT
    also GOES-N SXI, STEREO SECCHI
  • Gradual improvements in spectral codes and
    databases
  • Faster computers and larger displays, which will
    facilitate the computation and visualization of
    DEM data products
  • Improvements in the software and techniques that
    enable the analytic combination of multiple
    instrument datasets (e.g. TRACE, MDI, EIT, CDS)

7
IIIb Science context (cont.)
  • SDO should advance our understanding of coronal
    thermal structure even further
  • AIA is designed for DEM recovery, with more EUV
    bandpasses than have ever been available from a
    high-resolution imager
  • High spatial resolution is required in order to
    study the thermal properties of elemental
    structures
  • High cadence allows studies of the evolution of
    coronal structures at the shortest relevant
    timescale

8
IVa Science investigation
  • Uncertainties in spectral models are a major
    obstacle
  • databases rely on tabulated measurements of
    abundance, ionization balance, etc., which may
    not be correct or constant
  • spectral databases do not have complete
    catalogues of coronal emission lines
  • Another major obstacle is the scaling of the
    computation
  • difficult to compute, analyze and display DEMs
    for the whole volume of AIA observations

9
IVb Science investigation
  • Additional obstacles
  • instability of DEM inversion in the presence of
    error and uncertainty
  • range of possible DEM solutions and uniqueness of
    recovered DEM must be estimated and understood
  • optical depth of plasma is difficult to
    accommodate in large scale, automated codes
  • going from LOS DEM to a description of thermal
    structure in a volume element not always trivial

10
V Implementation general
  • In order to improve our ability to do useful
    thermal studies, we need
  • A DEM working group that will
  • foster a broader understanding of the need for,
    and difficulty of, DEM analysis
  • reach a consensus on many implementation issues
  • Improvements to spectral models and databases
  • These will allow us to work towards a standard
    DEM recovery code that will provide easily
    understood uncertainty estimates, temperature
    maps, and LOS discrimination

11
VI Implementation AIAHMI
  • DEM inversion requires AIA observations
  • in all EUV bandpasses
  • near-simultaneous
  • Cadence of 1 minute
  • Full dynamic range (longest exposures possible
    without saturating)
  • Simultaneous HMI observations to enable study of
    topology/connectivity
  • requires co-alignment with AIA
  • Simultaneous EVE observations for
    cross-calibration

12
VII AIA (HMIEVE) data products
  • Critical data products
  • SDO data
  • AIA observations in EUV bandpasses
  • Desireable data products
  • SDO data
  • HMI observations of magnetic field
  • EVE observations for cross-calibration
  • Supporting data from other observatories
  • EIS spectra for cross-calibration
  • STEREO images to distinguish 3-D structure

13
VIIIa AIA (HMIEVE) data production
  • Open question should there be a DEM data product
    in the pipeline?
  • computationally intensive
  • could implement linear inversion or lookup table
  • numerous knobs must be set almost arbitrarily
  • parameterization of DEM (range, resolution in T
    space)
  • spectral code and assumptions (abundance,
    pressure, etc)
  • conduct DEM recovery study to optimize these
    settings
  • difficult to include other observations in the
    pipeline

14
VIIIb AIA (HMIEVE) data production
  • If we do have a standard DEM product, we will
    need to decide
  • how comprehensively it will be produced
  • full-disk, full-resolution per-pixel DEMs?
  • bin pixels, sum over multiple exposures
  • run DEM recovery routine selectively
  • how to display the recovered DEM
  • temperature maps
  • error bars/level of certainty

15
IXa Business plan Resources
  • AIA can be used for thermal studies in 2 ways
    for quicklook T maps, and for more
    careful/detailed DEM reconstruction.
  • It would be useful to supply 2 DEM data/code
    products
  • A pipeline DEM/Temperature map data product
  • A set of software tools to allow expert users to
    perform DEM reconstruction

16
IXb Business plan Resources
  • The pipeline data product should
  • Be clear and usable by experts and non-experts
  • Supply information that is not available in the
    standard images
  • Allow users to identify features, events, and
    regions that warrant for further study
  • The DEM reconstruction software package should
    allow users to
  • Tweak a variety of atomic parameters (abundance,
    charge state, etc.) and a priori constraints
    (smoothness, etc.)
  • Include observations from other instruments, and
    from models
  • Understand the uncertainties in the recovered DEM

17
Xa Business plan Implementation
  • Develop a white paper and work with people who
    calculate and measure atomic physics properties
    to reduce atomic uncertainties in the AIA
    bandpasses
  • Hold workshops to develop an understanding of the
    problem of DEM reconstruction with AIA
  • 30 participants, incl. representatives of the
    instrument, spectral codes, and modeling teams
  • Focused on DEM reconstruction problems (not
    spectral codes)
  • Inversion algorithms
  • Uncertainties
  • Data pipeline realities
  • Preliminary meeting adjacent to SPD 2006
    identify problems and have volunteers work on
    them
  • Follow-up meeting in Feb 2007

18
Xb Business plan Implementation
  • The Pipeline Product Do we need a DEM data
    product in the pipeline? This fundamental
    question is still unanswered
  • Survey community to determine how it would be
    used, and how useful it would be (May 2006)
  • Based on the study of how practical DEM
    reconstruction is (see Xa), develop and test
    methods to determine how it could be implemented
    (Early-mid 2007)
  • Spatial resolution (number of DEM pixels)
  • Inversion technique
  • Standard set of atomic physics assumptions
Write a Comment
