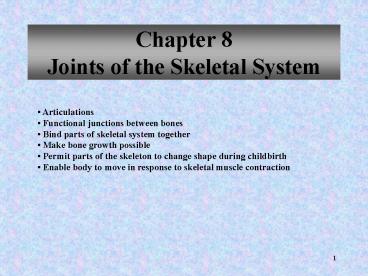

Chapter 8 Joints of the Skeletal System

1
Chapter 8Joints of the Skeletal System

• Articulations
• Functional junctions between bones
• Bind parts of skeletal system together
• Make bone growth possible
• Permit parts of the skeleton to change shape
  during childbirth
• Enable body to move in response to skeletal
  muscle contraction

2
Classification of Joints

• Fibrous Joints
• dense connective tissues connect bones
• between bones in close contact

• synarthrotic
• immovable
• amphiarthrotic
• slightly movable
• diarthrotic
• freely movable

• Cartilaginous Joints
• hyaline cartilage or fibrocartilage connect bones

• Synovial Joints
• most complex
• allow free movement

3
Fibrous Joints

• 3 Types
• Syndesmosis
• Suture
• Gomphosis

• Syndesmosis
• a sheet or bundle of fibrous tissue connects
  bones
• amphiarthrotic
• lies between tibia and fibula

4
Fibrous Joints

• Suture
• between flat bones
• synarthrotic
• thin layer of connective tissue connects bones

• Gomphosis
• cone-shaped bony process in a socket
• tooth in jawbone
• synarthrotic

5
Cartilaginous Joints

• 2 Types
• Synchondrosis
• Symphysis

• Synchondrosis
• bands of hyaline cartilage unite bones
• epiphyseal plate (temporary)
• between manubrium and first rib
• synarthrotic

6
Cartilaginous Joints

• Symphysis
• pad of fibrocartilage between bones
• pubis symphysis
• joint between bodies of adjacent vertebrae
• amphiarthrotic

7
Synovial Joints

• diarthrotic
• joint cavity
• synovial fluid
• joint capsule
• synovial membrane
• bursae

8
Articular Joint

• Area where to bones meet
• Parts cartilage, synovial fluid, ligaments,
  synovial membrane, bursa, tendons

9
Ligament

• Connects bones together
• Fibrous connective tissue
• Allows bones to move but not separate

10
Cartilage

• Found on surface of end (epiphysis) of bone
• Cushioning material
• Shock absorber

11
Synovial Membrane

• Produces synovial fluid

12
Synovial Fluid

• Lubricates to reduce friction on bone surface

13
Bursa

• Fluid filled sac
• Cushion
• Found in shoulder knee

14
Tendon

• Connects muscle to bone

15
(No Transcript)
16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
Types of Synovial Joints

• Ball-and-Socket Joint
• hip
• shoulder

• Condyloid Joint
• between metacarpals and phalanges

20
Hinge Joint

• Elbow
• Knee
• Restrictedmovement
• Bend only in one direction

21
Types of Synovial Joints

• Hinge Joint
• elbow
• between phalanges

• Gliding Joint
• between carpals
• between tarsals

22
Types of Synovial Joints

• Pivot Joint
• between proximal ends of radius and ulna

• Saddle Joint
• between carpal and metacarpal of thumb

23
(No Transcript)
24
Types of Joint Movements

• abduction/adduction
• dorsiflexion/plantarflexion
• flexion/extension/hyperextension

25
Types of Joint Movements

• rotation/circumduction
• supination/pronation

26
Types of Joint Movements

• eversion/inversion
• protraction/retraction
• elevation/depression

27
Shoulder Joint

• ball-and-socket
• head of humerus
• glenoid cavity of scapula
• loose joint capsule
• bursae
• ligaments prevent displacement
• very wide range of movement

28
Shoulder Joint
29
Elbow Joint

• hinge joint
• trochlea of humerus
• trochlear notch of ulna
• gliding joint
• capitulum of humerus
• head of radius
• flexion and extension
• many reinforcing ligaments
• stable joint

30
Elbow Joint
31
Hip Joint

• ball-and-socket joint
• head of femur
• acetabulum of coxa
• heavy joint capsule
• many reinforcing ligaments
• less freedom of movement than shoulder joint

32
Hip Joint
33
Knee Joint

• largest joint
• most complex
• medial and lateral condyles of distal end of
  femur
• medial and lateral condyles of proximal end of
  tibia
• femur articulates anteriorly with patella
• modified hinge joint
• flexion/extension/little rotation
• strengthened by many ligaments and tendons
• menisci separate femur and tibia
• bursae

34
Knee Joint
35
Life-Span Changes

• Joint stiffness is an early sign of aging
• Fibrous joints first to change can strengthen
  over a lifetime
• Changes in symphysis joints of vertebral column
  diminish flexibility and decrease height
• Synovial joints lose elasticity
• Disuse hampers the blood supply
• Activity and exercise can keep joints functional
  longer

36
Clinical Application
Joint Disorders

• Sprains
• damage to cartilage, ligaments, or tendons
  associated with joints
• forceful twisting of joint

• Bursitis
• inflammation of a bursa
• overuse of a joint

• Arthritis
• inflamed, swollen, painful joints
• Rheumatoid Arthritis
• Osteoarthritis
• Gout
