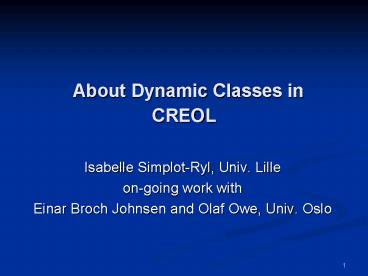

About Dynamic Classes in CREOL

1
About Dynamic Classes in CREOL

• Isabelle Simplot-Ryl, Univ. Lille
• on-going work with
• Einar Broch Johnsen and Olaf Owe, Univ. Oslo

2
CREOL

• A formal framework for reflective component
  modelling
• Project of the Precise Modelling and Analysis
  Group (dep. of inf., Univ. Olso)
• Goal

to develop a formal framework and tool for
reasoning about dynamic and reflective
modifications in object-oriented open
distributed systems, ensuring reliability and
correctness of the overall system.
3
CreolConcurrent Reflective Object-oriented
Language

• Concurrent objects
• having their own processor
• passive activity in response to method
  invocations
• active activity
• Communications
• synchronous method calls
• asynchronous method calls
• ? unified semantics

4
Classes

• Attributes and methods are declared in classes
• a run method is used to describe the active
  behaviour
• Classes may have parameters
• Classes may implement interfaces
• ? we will not speak about interfaces in
  this context

5
Inheritance

• Multiple inheritance of classes (and interfaces)
  is allowed
• A class inherits a list of classes (with actual
  parameters if needed)
• A class may redefine methods method search is a
  left-first depth-first search
• Attribute names are statically (at compile time)
  expanded into qualified names so their are unique

6
Example 1

• class RW
• begin
• var d Data 0
• with Any
• op write(in x Data) d x
• op read(out x Data) x d
• end

7
Method Invocation

• Asynchronous invocation
• t!o.m(exp) Invocation, the process continues its
  activity
• t?(v) The process gets the return values,
  blocking statement
• Synchronous invocation
• o.m(expv) The processor is blocked while
  waiting for the reply
• Local calls
• without (or with) object identifier
• static calls m_at_C(expv) or t!m_at_C(exp)

8
Guarded Statements

• Composed with
• (sequence), ? (or), (non-deterministic
  merge), (synchronized merge)
• Guards
• wait, t?, boolean expression, g1?g2, g1?g2
• Assignments, if-constructs, recursive method
  calls,
• Processor is released when a guard evaluates to
  false
• When the processor is free enabled suspended
  processes must compete (except for local
  synchronous calls)

9
Example 2

• class SSync
• begin
• var lock Oid null
• with Any
• op open await (lock null) lock
  caller
• op close sync() lock null
• op sync await (lock caller)
• end

10
Example 3

• class SRW inherits SSync, RW
• begin
• with Any
• op write(in xData) sync_at_SSync()
•
  write(x)_at_RW
• op read(out xData) sync_at_Ssync()
•
  read(x)_at_RW
• end

11
Operational Semantics

• Defined using rewriting logic (Maude imp.)
• Creol objects and classes ? RL objects
• ?Ob Cl,Pr,PrQ,Lvar,Att,Lab? and ?Cl
  Inh,Att,Mtds,Tok?
• Method call ? pair of messages
• invoc (o2,m,(t, o1, in)) and comp(t,o1,out)
• A message queue per object ? RL object
• The inheritance graph is not statically given

12
Operational Semantics (2)

• Code loading
• invoc (o2,m,(t, o1,in)) in the queue of o2C,
• ? generation of bind(o2,m,(t ,o1, in),C)
• Left-first depth-first exploration of the
  inheritance graph
• Generation of a bound message containing a
  process with the method call and local state
• Object creation new C(In)
• Creation of a new object and a message queue
• ? generation of a find message collecting and
  initializing the attributes in the inheritance
  tree in a left-first depth-first order
• ? found message containing the initialized
  attributes

13
Dynamical Extension of Classes

• Interest
• Making systems evolve without stopping them
• Correcting implementation bugs or design bugs
  without stopping the systems

14
Dynamical Extension of Classes

• Goal
• To change an existing class at runtime (by
  additions or redefinitions)
• To see all the already existing objects of this
  class being extended (without any
  stop/creation/)
• To see subclasses and objects of these subclasses
  being extended too

15
Class Extension

• A class may be extended
• Directly by
• Addition of methods, attributes, and inherited
  classes
• Method redefinition
• Indirectly by
• Extension of one of the classes of its
  inheritance graph

16
New Class Representation

• To keep control of extensions, we need to know
• Which version of a class an object is an instance
  of
• Which version of a class another class inherits
• use of a version number incremented
• Each time a class is extended
• Each time one of its direct super-classes is
  extended
• ? ? CCl ? vsN, Inh(C1 N1 C2 N2 ), Att _,
  Mtds _, Tok_ ?

17
Direct Class Extension

• New attributes may be added
• New attributes cannot have the same name than
  other attributes already defined in the class
• Because of the use of qualified names, new
  attributes may have the same names than inherited
  ones. Old methods will still use the old ones.
• Methods may be added or upgraded
• Inherited classes may be added but parameters of
  the class cannot change!

18
Direct Class Extension (2)

• A new rule is added to the system to manage an
  add request
• ?CCl vsN, InhI, AttA, MthsM, Tok_?
  add(C, I, A, M)
• ?
• ?CCl vsN1,InhI I,AttA A,MthsMM,Tok_?


19
Indirect Class Extension

• Equation
• ?CCl vsM, Inh S C N S,?
• ? CCl vsN, ?
• ? CCl vsM1, Inh S C N S, ?
• ? CCl vsN, ?,
• if N gt N

20
Advantages

• The old version of the class is removed
• The update propagations are locally managed
• Concurrent extensions of a class The result may
  depend on the order in which extensions are
  performed
• Concurrent extensions of super-classes of a class
  are possible

21
How does it work ?

• After an extension of class C
• New objects of class C are of the new class
• Old objects must be updated
• Object representation has to include the version
  number of the class the object is linked to
• ? O Obj Cl C N, Pr _ , ?

22
Object Update

• The binding mechanism is completely dynamic ? no
  problem
• New attributes must be present when needed
• The update must be performed as soon as possible
• and before the next code loading update when
  Pr contains empty or continue

23
Object Update (2)

• The version number is updated and a message is
  send to collect new attributes
• Old attributes keep their values
• New attributes are initialized using the current
  values of old attributes
• No bound message must be received until the
  completion of the update
• Advantages A class does not need to maintain a
  list of its instances, objects perform themselves
  their updates

24
Remarks

• Updated objects may still have some old code in
  the process queue
• As it is not possible to remove attributes, old
  code may be executed without any problem
• Calls to redefined methods in old code are bound
  to new versions of methods
• The use of recursivity instead of loops for
  non-terminating methods (like run) allows them to
  be updated while running

25
Example (4)

• class MSync ---Version 0
• begin
• var lock OidSet empty
• with Any
• op open await (caller ? lock)
• lock lock ? caller
• op close sync() lock lock \ caller
• op sync await (caller ? lock)
• op waitFree await (lock empty)
• end

26
Example (5)

• class SSync --- Version 1
• begin
• var lock Oid null
• with Any
• op open waitFree() lock caller. ---
  upgrade
• op close sync() lock null.
• op sync await (lock caller).
• op waitfree await (lock null). ---
  addition
• end

27
Example (6)

• SRW becomes Version 1

28
Example (7)

• class SRW inherits SSync, RW, Msync --
  V2,V1,V0,V0
• begin
• var d Data 0
• with Any
• op open open_at_SSync() waitFree_at_MSync()
• op close close_at_SSync()
• op openM open_at_MSync() waitFree_at_SSync()
• op closeM close_at_MSync()
• op write(in xData) sync_at_SSync()
  write(x)_at_RW
• op read (out xData) sync_at_SSync()
  sync_at_MSync()
•
  read(x)_at_RW
• end

29
Perspectives

• Creol specifications are given in terms of
  communication traces
• In a rely/guarantee style
• Goal
• To have to prove extensions
• Not to have to re-prove anything else
