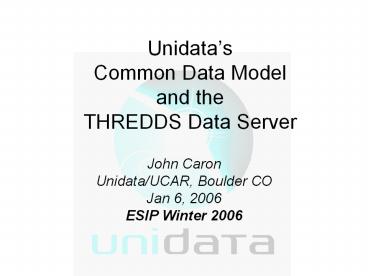

UnidatasCommon Data Modeland theTHREDDS Data
Server

• John Caron
• Unidata/UCAR, Boulder CO
• Jan 6, 2006
• ESIP Winter 2006

2
Outline

• Definitions
• Creating a Common Data (Access) Model from
  NetCDF, HDF5, OPeNDAP
• CDM Coordinate Systems, Data Types
• CDM implementation
• NetCDF Markup Language (NcML)
• The THREDDS Data Server

3
NetCDF-3

• Machine and OS independent file format for
  self-describing scientific data
• C library (Fortran, C, Perl, IDL, MatLab,
  Python, Ruby), Java library
• Efficient subsetting of multidimensional arrays.
• gt 20,000 downloads last year

4
HDF5

• Machine and OS independent file format for
  self-describing scientific data
• C library (Fortran, Java, PyTables)
• Evolution from HDF4, but different.
• HDF-EOS, HDF5-EOS, standard formats for EOSDIS,
  ASCI, NPOESS
• Parallel-IO, chunked storage, compression
  filters, many data types.
• Developed at NCSA, now independent

5
NetCDF-4

• Project funded by NASA to create new version of
  netCDF using the HDF5 file format.
• Extend and merge netCDF and HDF5
• Widespread use and simplicity of netCDF
• Generality and performance of HDF5

6
NetCDF-Java 2.2 (nj22)

• 100 Java library
• Prototype implementation of CDM
• File formats
• General NetCDF, HDF5, OPeNDAP
• Grids GRIB1, GRIB2
• Radar NEXRAD, NIDS, DORADE
• Satellite DMSP, GINI
• Access to THREDDS catalogs

7
OPeNDAP

• Client-server protocol for scientific data access
• C client and server, Java client and server
  libraries.
• Current version 2.0 NASA ESE standard
• Working on new 4.0 protocol spec

8
THREDDS

• Originally funded by NSDL
• discovery and use of scientific data
• Middleware between data providers and users
• Dataset Inventory Catalogs (XML)
• Now part of Unidata core funding
• Data Serving (pull)

9
Whats a Data Model?

• Its about scientific data storing, accessing
• Its an abstraction
• Equivalent to an abstract object model in OOP
• An Abstract Data Model describes data objects and
  what methods you can use on them

10
Whats a Data Model?

• An API is the interface to the Data Model for a
  specific programming language
• A file format is a way to persist the objects in
  the Data Model.
• A data access protocol plays the role of a file
  format.
• The Abstract Data Model removes the details of
  any particular API and the persistence format.

11
Creating a Common Data Access Model from NetCDF,
HDF5, OPeNDAP
12
NetCDF-3 Data Model
13
OPeNDAPDataModel(DAP-2)
14
HDF5 Data Model
15
CommonData(Access) Model
16
Coordinate Systemsand Scientific Data Types
17
Common Data Model Layers
Coordinate Systems
Data Access
18
Coordinate Systems needed

• NetCDF, OPeNDAP, HDF data models do not have
  integrated coordinate systems
• so georeferencing not part of API
• Need conventions to specify (eg CF-1, COARDS,
  etc)
• Contrast GRIB, HDF-EOS, other specialized formats
• Must be done in a general way

19
Coordinate Systems

• Same underlying mathematics as VisAD, ASCII

20
Scientific DataTypes

• Based on datasets Unidata is familiar with
• APIs are evolving
• How are data points connected?
• Intended to scale to large, multifile collections
• Intended to support specialized queries
• Space, Time
• Corresponding standard NetCDF file conventions

21
Point Observation Data
22
PointObsDataset Methods

• // Collection of StructureData
• Collection getData(
• LatLonRect boundingBox,
• Date start, Date end)

23
Trajectory Data
24
TrajectoryObs Methods

• int getNumPoints()
• StructureData getData(int point)

25
Station Data
26
StationObs Methods

• // return List of Station
• List getStations()
• // return List of StructureData
• List getData(
• Station s,
• Date start, Date end)

27
Radial Data
28
Radial methods

• interface Radial
• int getNumGates()
• float getData(int gate)
• float getStartingGate()
• float getGateSize()
• float getElevation()
• float getAzimuth()
• double getTime()

29
Gridded Data
30
Grid methods

• interface GridCoordSys
• CoordinateAxis getTaxis()
• CoordinateAxis getXaxis()
• CoordinateAxis getYaxis()
• CoordinateAxis getZaxis()
• Projection getProjection()
• Array getDataCube(Range time, Range z, Range y,
  Range x)

31
Image/Swath
32
Standardizing NetCDF Formats

• Grid CF-1 Convention
• Need improvements for regional models (WRF), GIS
  info
• Radar Radar Exchange Format
• With radar community (led by NCAR ATD)
• Point Observations
• Unidata Observation Dataset Conventions

33
CDM implementations NetCDF-4 and NetCDF-Java
2.2
34
NetCDF-4 C Library
NetCDF-4 C Library
35
NetCDF-4 Status

• 4.0 Beta implements CDM access layer
• complete, but waiting for HDF5 release 1.8 to
  finalize file format
• 4.1 adding Coordinate Systems
• 4.? merge OPeNDAP access (pending funding)

36
NetCDF-Java 2.2 (nj22)

• Prototype implementation of CDM
• File formats
• General NetCDF, HDF5, OPeNDAP
• Grids GRIB1, GRIB2
• Radar NEXRAD, NIDS, DORADE
• Satellite DMSP, GINI
• Access to THREDDS catalogs
• Implements NcML

37
Common Data Model
Coordinate Systems
Data Access
38
Application
Scientific Datatypes
Datatype Adapter
NetCDF-Java version 2.2 architecture
NetcdfDataset
CoordSystem Builder
NetcdfFile
ADDE
I/O service provider
OPeNDAP
NetCDF-3
NIDS
GRIB
NetCDF-4
HDF5
GINI
Nexrad
DMSP

39
NetCDF-Java 2.2 Status

• Data Access layer Beta quality
• also waiting for HDF5 release to finish NetCDF-4,
  commit to API
• Coordinate Systems early Beta
• Finishing docs, runtime plugability
• Data Types Alpha, still experimenting with APIs

40
NetCDF Markup Language (NcML)

• XML representation of netCDF metadata (like
  ncdump -h)
• Create new netCDF files (like ncgen)
• Modify existing datasets
• Add/delete/rename
• Create logical sections of existing variables.
• Create unions and aggregations of multiple
  existing datasets.

41
NcML example

• lt?xml version"1.0" encoding"UTF-8"?gt
• ltnetcdf xmlns"http//www.unidata.ucar.edu/schemas
  /netcdf/ncml-2.2"
• location/data/nids/N0R_20041119_2147"gt
• ltattribute nameDataType" valueRadar" /gt
• ltremove typeattribute namepassword" /gt
• ltvariable name"Reflectivity" orgNameR34768gt
• ltattribute name"units" valuedBZ" /gt
• lt/variablegt
• lt/netcdfgt

42
NcML Aggregation

• Union
• Join Existing
• Join New
• Forecast Model Run

43
NcML Aggregation Example

• ltnetcdf xmlnshttp//www.unidata.ucar.edu/schemas
  /netcdf/ncml-2.2gt
• ltaggregation dimName"time" type"joinNew"gt
• ltvariableAgg name"Temperature"/gt
• ltvariableAgg name"Pressure"/gt
• ltscan locationC/data/goes/"
  suffix".gini"/gt
• lt/aggregationgt
• lt/netcdfgt

44
THREDDS Data Server

• Integrates data access with THREDDS catalogs and
  services
• Tomcat/Servlet, 100 Java, single war file
• Data input is netCDF Java 2.2 library
• Data output
• OPeNDAP
• HTTP Server
• OGC Web Coverage Server (gridded)

45
THREDDS Data Server
HTTP Tomcat Server
Catalog.xml
Application
THREDDS Server

• OPeNDAP

• HTTPServer

• WCS

NetCDF-Java library
hostname.edu
Datasets
IDD Data
46
TDS as WCS Gateway
hostname.edu
HTTP Tomcat Server
Catalog.xml
Application
THREDDS Server

• OPeNDAP

• HTTPServer

• WCS

NetCDF-Java library
OPeNDAP Server
anotherHost.org
47
TDS and NcML
hostname.edu
HTTP Tomcat Server
Application
THREDDS Server

• OPeNDAP

• WCS

Netcdf-Java
Catalog.xml
Datasets
48
TDS and NcML

• Server serves the dataset wrapped by the NcML
• Client sees OPeNDAP or WCS, not NcML
• Can fix metadata problems
• Can augment metadata
• Use NcML aggregation on the TDS
• replaces the old Aggregation Server

49
TDS and Digital Libraries
HTTP Tomcat Server
Catalog.xml
Application
THREDDS Server

• OPeNDAP

• HTTPServer

NetCDF-Java library

• WCS

Datasets
hostname.edu
otherhost.gov
OPeNDAP Server
50
TDS and Digital Libraries

• Framework to add metadata
• By hand (collection level)
• Automatic extraction from datasets
• Send records to existing DLs
• No search
• Both collection and inventory level

51
Future Plans

• NetCDF-Java
• Get APIs stable, docs, runtime plugability
• NetCDF-4 (!)
• HDF4, HDF-EOS, BUFR (need funding)
• NetCDF-4 C Library
• DataTypes too immature to port
• NcML?
• Java on the server

52
TDS Future Plans

• Aggregation
• Driven by IDD data (motherlode)
• Pluggable Authorization
• access control by dataset
• Performance
• Services
• Coordinate System Verifier (eg CF-1)
• Data access
• Subset and get netcdf file

53
Conclusion N M instead of N M things on your
TODO List!
File Format 1
Visualization Analysis
NetCDF file
File Format 2
OpenDAP Server
File Format N
WCS Service
