Title: SPCC Regulations: Applicability and Requirements


1

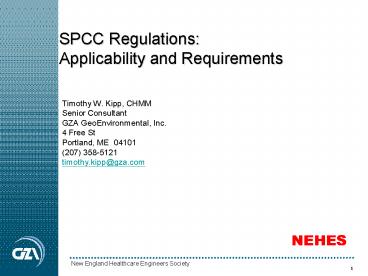

SPCC Regulations Applicability and Requirements
  • Timothy W. Kipp, CHMM
  • Senior Consultant
  • GZA GeoEnvironmental, Inc.
  • 4 Free St
  • Portland, ME 04101
  • (207) 358-5121
  • timothy.kipp_at_gza.com

2
Spill Prevention, Control, and Countermeasures
(SPCC) Rule
  • Federal Rule
  • Clean Water Act (40 CFR Part 112)
  • US Environmental Protection Agency
  • Enforced by EPA Regional Offices
  • Initial SPCC Rule - 1973
  • Revisions issued 2002-2009
  • Compliance deadline for revised rule November
    10, 2011!

3
Applicability
  • SPCC Plan required if you have
  • Aboveground oil storage capacity greater than
    1,320 gallons or
  • Underground oil storage capacity greater than
    42,000 gallons (not subject to 280/281
    regulations) and
  • Potential to release oil to navigable waters of
    the US
  • Only count containers 55-gallons or greater
  • Includes oil-filled operational equipment

4
What Oils are Covered under the SPCC regulation?
  • Oils and greases
  • Petroleum
  • Fuel oil
  • Mineral oils
  • Synthetic oils
  • Heat transfer fluids, engine fluids, hydraulic
    and transmission fluids, metalworking fluids,
    dielectric fluids, compressor lubricants, and
    turbine lubricants
  • Animal fats and vegetable oils
  • Sludge
  • Oil refuse
  • Oil mixed with wastes other than dredge spoils

5
Oil-Filled Equipment what is it?
  • Oil-filled operational equipment includes an oil
    storage container in which the oil is present to
    support the function of the apparatus or device.
  • Examples of Oil-Filled Operational Equipment
  • Hydraulic Systems
  • Gear Boxes
  • Machining Coolant Systems
  • Heat Transfer Systems
  • Transformers
  • Circuit Breakers
  • Electrical Switches

6
(No Transcript)
7
(No Transcript)
8
State Regulations
  • May have similar or overlapping regulations
  • AST regulations
  • Petroleum bulk storage facilities licensing
  • State SPCC programs
  • However, no there are no authorized or
    equivalent state programs you must comply with
    the federal requirements irrespective of any
    state program!

9
Navigable waters of the US - do I have the
potential to discharge?
  • YES!

10
The SPCC Plan
  • Format and Content
  • PE Certification/Management Approval
  • Updates and Re-Certification

11
SPCC Plan Format
  • Emergency Action Plan
  • SPCC Plan Text
  • Tables and Figures
  • Appendices

12
(No Transcript)
13
SPCC Plan Content
  • Facility Information
  • Oil Spill Contingency Plan
  • Preventive Measures

14
SPCC Plan Tables and Figures
  • Table
  • oil storage devices and oil-filled equipment
  • secondary containment
  • spill pathways
  • Site Locus Plan
  • Site Diagram
  • drainage/spill pathways
  • oil storage devices and oil-filled equipment
  • piping
  • emergency/communications equipment

15
SPCC Plan Appendices
  • Inspection forms
  • Secondary containment calculations
  • Tank integrity testing schedule

16
SPCC Plan Certification
  • Your SPCC Plan must be
  • Approved by company management (corporate officer
    or designated representative such as EHS manager)
  • Certified by a licensed Professional Engineer
    (PE)
  • Some states require that the PE be licensed in
    the state where the facility is located (NOT a
    federal requirement)
  • Must identify an Emergency Coordinator (EC)
  • Grant authority for the EC to commit company
    resources for spill response
  • Unless your facility is a Tier I or II
    Qualified Facility

17
SPCC Plan
  • Annual review recommended
  • Five-year comprehensive review and
    recertification required
  • Administrative updates (e.g., new phone numbers)
    do not require recertification
  • Plan review and recertification for technical
    amendments
  • New tanks or storage systems
  • New/different product storage
  • Changes in facility design/operation

18
SPCC Plan Implementation
  • Inspections
  • Secondary Containment
  • Stormwater Management
  • Oil Transfers and Active Measures
  • Tank Integrity Testing

19
INSPECTIONS
  • Inspections are conducted to identify
    malfunctions, deterioration, operator error, and
    deficiencies which may cause or lead to
    spills/releases of oil
  • SPCC requires periodic inspections

20
INSPECTIONS (Continued)
  • Oil-filled equipment, containers, and storage
    area are visually inspected on a weekly basis
    for the following
  • All equipment will be examined (where applicable)
    for leaks from seams, rivets and bolts and
    gaskets and for signs of deterioration (e.g.,
    discoloration, corrosion, cracks) of the vessel,
    aboveground foundation and structure supports
  • All associated piping will be checked for
    dripping, loose joints, damage to supports, and
    pipe deflection
  • All connections will be checked for leakage,
    drainage, tightness, and appropriate capping
  • All pumps will be checked for evidence of
    leakage, proper operation, and damage
  • All storage areas and containment systems will be
    inspected for integrity and the accumulation of
    stored product. If oil is observed in the
    containment system, the source of the oil will be
    determined and
  • The security of the containers/areas/equipment
    will be checked (i.e., valves and equipment
    locked and secured).

21
INSPECTIONS
  • Three potential outcomes
  • All OK
  • Non-emergency problem detected corrective
    action/maintenance required
  • Actual spill or leak identified

22
(No Transcript)
23
CONTAINMENT SYSTEMS
  • Prevent migration of spill/release from immediate
    area
  • SPCC containment requirements
  • Oil storage tanks have 100 percent containment
    (plus adequate freeboard for precipitation for
    outdoor tanks)
  • Drum/container storage areas have containment for
    10 percent of total storage capacity
  • Oil-filled equipment secondary containment
    where practicable
  • For oil-filled equipment without containment,
    alternative measures in place including training,
    spill response equipment, inspections

24
Stormwater
  • Stormwater Drainage Procedure
  • Dike drains must be closed and locked!
  • Visually inspect for oil sheen/evidence of
    contamination
  • Open valves and allow stormwater to drain
  • Log each stormwater drainage event

25
Oil Transfers
  • Spills happen when/how?
  • DURING TRANSFER OPERATIONS!
  • Deliveries, re-fueling, equipment maintenance etc

26
Secondary Containment for Transfer Areas
  • SPCC requirements
  • Secondary containment needs to be sized only to
    address the typical failure mode and quantity for
    the item
  • Passive or active measures can be utilized
  • Specific provisions such as drip pans, sumps, and
    collection systems are recommended
  • Overall result
  • Facilities will have discretion in meeting
    general secondary containment requirements,
    consistent with good engineering practices

27
(No Transcript)
28
Secondary Containment Example Active
(Temporary) Measure
  • Storm drain liner and dam

29
Transfer Location Checklist
  • Identify all transfer points?
  • HIGH-RISK LOCATIONS?
  • Included in SPCC plan?
  • Table and site diagram if fixed location
  • Most probable spill?
  • Spill pathways?
  • Containment?
  • Active measures?

30
Integrity Inspections forAboveground Storage
Tanks
31
Category 1 Tanks
  • Category 1 tanks as defined by Steel Tank
    Institute (STI) are
  • Aboveground tanks
  • lt 5,000-gallon capacity
  • Steel construction
  • Not in direct contact with the ground surface
  • On legs or cradles
  • Tank bottom not in contact with soil or
    concrete/asphalt base
  • Has a continuous release detection method (CRDM)
  • What does this mean?
  • Passive system, not requiring sensors or power to
    operate, that allows inspector to visually detect
    a release. Examples include secondary
    containment including vaults, dikes and
    double-walled tanks.

32
Steel Tank Institute (STI) SP001 Inspection
Standard
  • Category 1 tanks lt 5,000-gallon capacity are
    recommended only for periodic visual inspection
  • Inspections are to be performed in accordance
    with STI SP001 standard
  • Monthly inspections
  • Annual inspections (more detailed)
  • Owners inspector must meet the requirements of
    the standard
  • STI SP001 provides detailed program including
  • Inspector qualifications (paragraph 4.1)
  • Inspection instructions (Section 6)
  • Monthly and annual inspection checklists
    (Appendix C)
  • Recordkeeping
  • Immediate action items and corrective action
    recommendations

33
12 Steps to Compliance SPCC Facility Inspection
and AST Integrity Inspection/Testing Program
  • STEP 1 Establish routine periodic (weekly or
    monthly) visual inspection program
  • STEP 2 Get a copy of STI SP001 standard for
    your facility
  • STEP 3 Ensure that your SPCC monthly checklist
    includes all required items
  • STEP 4 Provide hands-on training to facility
    personnel involved in inspections
  • STEP 5 Do your monthly inspections!
  • STEP 6 Maintain signed inspection records on
    file for at least three years
  • STEP 7 Perform annual comprehensive tank
    condition inspection using STI checklist and
    protocol
  • STEP 8 Utilize facility manager/engineer or
    someone with technical training to perform the
    annual inspection if available
  • STEP 9 Maintain signed annual inspection forms
    on file for at least three years
  • STEP 10 Be proactive about tank housekeeping
    and preventive maintenance
  • STEP 11 Keep good records of repairs and
    preventive maintenance
  • STEP 12 Relax and feel good that you are in
    compliance!!!

34
Inspections and Testing/SPCC Recordkeeping
  • Keep written procedures and records of the
    inspections and tests for at least 3 years.
  • Inspection forms and training records must be
    signed by the inspector or supervisor.
  • Records and forms include
  • Daily/weekly/monthly visual inspections
  • Containment area drainage logs/stormwater
    discharge forms
  • Tank construction records
  • Tank testing records
  • Tank repair/alteration history
  • Training records

35
Personnel Training
  • Oil-handling personnel must be adequately trained
    in
  • The operation and maintenance of equipment to
    prevent discharges
  • Discharge procedure protocols
  • Applicable pollution control laws, rules, and
    regulations
  • General facility operations
  • Contents of the facility SPCC Plan and
  • Spill briefings (lessons learned, malfunctions at
    your and other facilities, and precautionary
    measures).
  • Initial and annual refresher training for all
    personnel involved in oil-handling
  • Discharge prevention meetings held at least once
    per year

36
Personnel Training Practical Considerations
  • Training should include practical,
    facility-specific information on what do in case
    of a spill
  • Who is the EC and who are the alternates
  • Where is the spill response equipment located
  • Who is your spill response contractor
  • Who needs to be notified, and who makes the
    notifications
  • AND MOST IMPORTANTLY, SAFETY CONSIDERATIONS
  • what size spill is too big to address with
    training levels of personnel and available
    materials/equipment
  • evacuation how to decide, how to evacuate,
    where to muster
  • when to call 911 and get out!
  • If you have not established procedures and
    provided training for facility personnel, the
    odds of a successful spill response are very
    poor!

37
Personnel Training Practical Considerations
  • If facility personnel are expected to provide
    anything beyond initial response (identification,
    closing valves/shutting off controls, and
    evacuating the area), they need additional spill
    response training
  • Industry standard is OSHA 24-hour emergency
    response training
  • Personnel expected to operate in protective
    clothing such as SCBAs may need additional
    training (e.g., OSHA 40-hour HAZWOPER)
  • 8-hour annual refresher required for these
    qualifications
  • Facilities subject to FRP requirements have
    additional requirements for annual spill response
    drills and exercises
  • Personnel expected to be involved in longer-term
    responses should have Incident Command System
    (ICS) training

38
SPCC Resources
  • EPA SPCC Website
  • http//www.epa.gov/emergencies/content/spcc/
  • EPA Guidance for Regional Inspectors
  • http//www.epa.gov/emergencies/content/spcc/spcc_g
    uidance.htm
  • This has not been updated to reflect the latest
    amendments but is still a great resource
  • OR
  • Tim Kipp, CHMM
  • GZA GeoEnvironmental, Inc.
  • 4 Free St
  • Portland, ME 04101
  • (207) 358-5121
  • timothy.kipp_at_gza.com
  • www.gza.com

39
SPCC Resources
  • EPA SPCC Website
  • http//www.epa.gov/emergencies/content/spcc/
  • EPA Guidance for Regional Inspectors
  • http//www.epa.gov/emergencies/content/spcc/spcc_g
    uidance.htm
  • This has not been updated to reflect the latest
    amendments but is still a great resource
  • Steel Tank Institute
  • http//www.steeltank.com/
  • STI Standard SP001 for inspection of
    shop-fabricated tanks
  • Includes inspection requirements/forms for
    periodic visual inspection of Category 1 tanks by
    owners representative
Write a Comment
User Comments (0)
About PowerShow.com
