5.Project planning and management

1

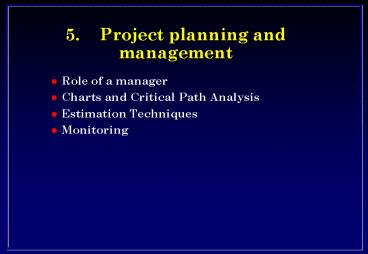

5. Project planning and management

• Role of a manager
• Charts and Critical Path Analysis
• Estimation Techniques
• Monitoring

2
Role of a manager

• Directs resources for the achievement of goals
• LEADER also provides
• Vision
• Inspiration
• Rises above the usual
• No one right way to manage

3
Management Continuum
Authoritarian
Democratic
Autocratic
Consultative
Participate
Solves problems alone Dictates decisions
Discusses Problems Makes decision
Chairperson Agrees problem Creates consensus
4
Managerial Roles

• (after Henry Mintzberg)
• Interpersonal
• Figurehead
• Leader
• Liaison
• Informational Roles
• Monitor
• Disseminator
• Spokesperson
• Decisional Roles
• Entrepreneur
• Resource Allocator
• Disturbance Allocator
• Negotiator

5
Qualities

• Technical/Professional knowledge
• Organisational know-how
• Ability to grasp situation
• Ability to make decisions
• Ability to manage change
• Creative
• Mental flexibility - Learns from experience
• Pro-active
• Moral courage
• Resilience
• Social skills
• Self Knowledge

6
Variables

• Resource
• Time
• Function
• You can have any two of quick, good or cheap,
  but not all three

7
Development cycle
Effort
Time
Specification Analysis Build Test Maintain
Alpha Beta
8
Crossing the Chasm

• Geoffrey Moore, after Everett Rogers

Tech
Utility
9
Approaches and methodologies

• Top Down
• Waterfall decomposition
• Bottom Up
• meta machine
• Rapid Prototype
• successive refinement
• Muddle through

10
Spiral Methodology
11
(No Transcript)
12
Pert and Gantt Charts

• Visual representation of project
• Microsoft Project

13
Example Getting up in the morning
Task Duration (mins) 1 Alarm rings 0 2. Wake
Up 3 3. Get out of bed 5 4. Wash 5 5. Get
dressed 5 6. Put kettle on 2 7 Wait for
kettle to boil 5 8 Put toast on 2 9 Wait for
Toast 3 10 Make coffee 3 11 Butter
Toast 2 12 Eat Breakfast 10 13 Leave for
Lectures 0
14
Pert Chart
15
Critical Path Analysis

• Compute earliest and latest start/finish for each
  task
• The difference is the slack
• The Critical Path joins the tasks for which there
  is no slack
• Any delay in tasks on the on the critical path
  affects the whole project

16
Pert Chart
17
Gantt Chart
18
Example
19
Example Pert
20
(No Transcript)
21
(No Transcript)
22
Levelling

• Adjust tasks to match resources available
• Automatic systems available, but do not always
  give an optimum result
• Tasks may be delayed within slack without
  affecting project dates
• Otherwise consider extending project, or using
  more resource
• Adding resource to late project may cause
  RECURSIVE COLLAPSE
• consider carefully whether the benefits outweigh
  the additional learning delays and overheads
• Derive costings

23
Larger example
24
Estimation Techniques

• Experience
• Comparison with similar tasks
• 20 lines of code/day
• can vary by 2 orders of magnitude
• Decomposition
• Plan to throw one away
• 20 working days per month BUT 200 per year

25
Rules of Thumb

• Software projects
• estimate 10 x cost and 3 x time
• 1310 rule
• 1 cost of prototype
• 3 cost of turning prototype into a product
• 10 cost of sales and marketing
• gtgtProduct costs are dominated by cost of sales
• Hartrees Law
• The time to completion of any project, as
  estimated by the project leader, is a constant
  (Hartrees constant) regardless of the state of
  the project
• A project is 90 complete 90 of the time
• 80 Rule
• Dont plan to use more than 80 of the available
  resources
• Memory, disc, cycles, programming resource....

26
Cynics Project Stages

• Enthusiasm
• Disillusionment
• Panic
• Persecution of the innocent
• Praise of the bystander
