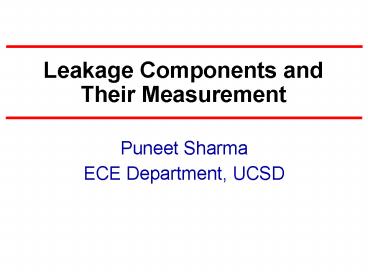

Leakage Components and Their Measurement

1
Leakage Components and Their Measurement

• Puneet Sharma
• ECE Department, UCSD

2
Leakage Components

• Subthreshold leakage
• Gate direct tunneling leakage
• Junction tunneling current (including gate
  induced drain leakage (GIDL) and band-to-band
  tunneling)
• Others
• Hot carrier injection current
• Punchthrough current

3
Subthreshold Leakage (Isub)

• Most significant component upwards of 25oC
• Dominates gate direct tunneling until 65nm
• High-K at 45nm and beyond will reduce gate direct
  tunneling
• Occurs in off state (VGS lt VTh) between source
  and drain
• Two stacked devices (i.e., off devices in series)
  will dramatically reduce Isub for both (leakage
  current is the same for all devices in the stack
  but leakage power is primarily in the devices for
  which VS ? 0 (body effect))
• Increases exponentially as VTh decreases
• Increases exponentially with temperature
• Depending on VTH roll-off curve, Isub can
  increase or decrease with LGate. For most
  processes Isub will increase significantly as
  LGate is reduced from nominal

SPICE Measurement For NMOS D1, G0, S0,
B0 Measure b/w D and S For PMOS D0, G1, S1,
B1 Measure b/w D and S
Isub
4
Gate Direct Tunneling Leakage (IGate)
SPICE Measurement For NMOS IGCS D0, G1, S0,
B0 Measure b/w G S IGCD D0, G1, S0,
B0 Measure b/w G D IGSO DX, G0, S1,
B0 Measure b/w G S IGDO D1, G0, SX,
B0 Measure b/w G and D IGB D1, G1, S1,
B0 Measure b/w G and B For PMOS IGCS D1, G0,
S1, B1 Measure b/w G S IGCD D1, G0, S1,
G1 Measure b/w G and D IGSO DX, G1, S0,
B1 Measure b/w G and S IGDO D0, G1, SX,
B1 Measure b/w G and D IGB D0, G0, S0,
B1 Measure b/w G and B In SPICE models IGCMOD
must be 1 for IGC and IGBOD 1 for IGB

• Due to quantum tunneling of electrons/holes
  through gate oxide
• Increases as gate oxide thickness decreases and
  potential difference across gate oxide increases
• Components
• Gate to channel (IGC)
• Main contributor for NMOS
• Occurs in on state and when source and drain
  are in opposite state from gate
• Comprises of gate to source (IGCS) and gate to
  drain (IGCD)
• Gate to source/drain overlap regions (a.k.a. edge
  direct tunneling (EDT))
• Occurs in off state and when source and/or
  drain are in opposite state from gate
• Comprise of gate to source (IGSO) and gate to
  drain (IGDO)
• Gate to body (IGB)
• Occurs in on state and source and drain are in
  same state as gate
• Negligible for NMOS
• Comparable to or larger than IGC for PMOS
• Practically unaffected by threshold voltage and
  temperature

5
Junction Tunneling Current

• Occurs between drain/source to substrate due to
  band-to-band tunneling (BTBT) in on state and
  due to GIDL in off state
• Occurs due to potential difference between body
  and source/drain ? much more common to have
  drain-to-body leakage than source-to-body
• GIDL occurs from drain to body when D1, G0,
  SX, B0

SPICE Measurement For NMOS IDB D1, G0, SX,
B0 D1, G1, S1, B0 Measure b/w D and
B ISB D1, G1, S1, B0 Measure b/w S and
B For PMOS IDB D0, G1, SX, B1 D0, G0,
S0, B1 Measure b/w D and B ISB D0, G0, S0,
B1 Measure b/w S and B
6
Other Leakage Components

• Hot carrier injection
• Generally not considered leakage but more of a
  reliability issue
• Occurs from gate to substrate, increases as LGate
  is reduced
• Over time, HCI causes VTh shift which changes
  Isub
• Punchthrough current
• Occurs from drain to source
• Of concern only when physical gate length under
  10nm

7
Reverse Short Channel Effect

• Reverse short channel effect arises due to halo
  implants
• Due to DIBL, short channel effect causes VTh to
  increase as LGate increases
• To combat DIBL, halo implant is used for
  non-uniform doping (higher doping at S/D
  terminals, lower at channel center)
• Halo induces reverse SCE (VTh decreases as LGate
  increases)
• Affects subthreshold leakage only

Halo doping (pocket implant) profile
8
Narrow Channel (Width) Effects

• Narrow channel effects cause a shift in threshold
  voltage as channel width is reduced
• depend primarily on isolation technique (LOCOS or
  STI)
• For STI, reverse narrow channel effect (RNCE) is
  observed which cause VTh to decrease as width is
  decreased
• For LOCOS, narrow channel effect (NCE) is
  observed which causes VTh to increase as width
  decreased

Reverse Narrow Channel Effect HsuehSDA88
9
General Rules of Thumb

• Every 3A change in Tox gives 10X change in
  IGate. High-K will, however, will reduce IGate by
  100x.
• Subthreshold swing is usually 85mV/dec at room
  temp. and a bit higher at operating temp (i.e.,
  90-100mV shift in VTh (or Vgs in subthreshold)
  will lead to 10X change in Isub.)
• In most 65nm technologies, we found SCE to
  dominate RSCE up to 10 biasing
• Gate biasing increases gate tunneling leakage due
  to increase in tunneling area. However, not
  enough to mitigate subthreshold leakage
  reductions over 250C
• RNCE becomes noticeable under 300nm for 90nm
  process
• Some results from AgarwalKMR04 (may not be
  general)

10
Sample Scripts and Results

• All leakage components described in these slides
  (except for IGSO which is uncommon) can be
  mesured through the following three SPICE files
  in projects/LEAKAGE-TUT/example_scripts/
• d1g0s0b0.sp (NMOS terminals set as d1, g0, s0,
  b0)
• d0g1s0b0.sp
• d1g1s1b0.sp
• Results for NMOS, 90nm TT process, 1.2V, 80oC
• Isub 131.5pA
• IDB (with GIDL) 1.240pA
• IDB 1.202pA
• ISB 1.202pA
• IGCD 0.3428pA
• IGCS 0.3422pA
• IGDO 0.01043pA
• IGB 2.277e-06pA
