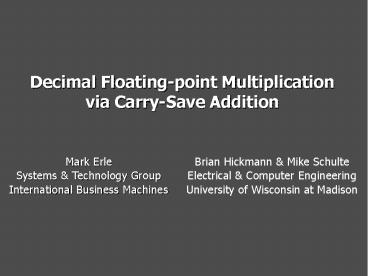

Decimal Floating-point Multiplication via Carry-Save Addition

1
Decimal Floating-point Multiplicationvia
Carry-Save Addition

• Mark Erle
• Systems Technology Group
• International Business Machines

Brian Hickmann Mike Schulte Electrical
Computer Engineering University of Wisconsin at
Madison
2
Outline

• Introduction and motivation
• Extensions to fixed-point design
• Implementation highlights
• Verification and synthesis results
• Summary

3
Introduction

• Preponderance of business data in decimal form
• Inexact mapping between decimal and binary
• Decimal arithmetic used/required in banking,
  finance, insurance, accounting
• Increasing support in arithmetic community, (IEEE
  P754 in ballot review process)
• Multiplication a key function

4
Motivation

• What's involved in extending fixed-point
  multiplication to support floating-point?
• What are the similarities and differences
  with BFP multiplication?

5
(No Transcript)
6
Intermediate Exponent Calculation

• Preferred exponent
• PE EA EB - bias
• Based on location of the decimal point (effective
  shift right)
• IEIP PE p
• After left shifting the intermediate product
• IESIP IEIP SLA

7
Intermediate Product Shifting

• Based on leading zero counts of operands
• SLA may be off by one need guard digit
• SLA min(LZA LZB, p)
• Shift right when IEIP lt Emin

8
Sticky Bit Generation

• Logically, all bits beyond the round digit must
  be ORed after left shifting
• SC SIP p 2, where 2 is for g and r
• Generate sticky bit on-the-fly, ORing one digit
  at a time while decrementing SC
• SC min(0, p (LZA - LZB))
• SIP - p ((p LZA) (p LZB)) p
• Calculate two cycles prior to when needed

9
Rounding - Scheme

• No rounding overflow... simplifies scheme
• Unique compound adder needed
• SIP may be in redundant form
• Require CSIP0 and CSIP1 named C0 and C1
• Possible corrective left shift (cls) of one digit
• SIP SA SB or SA SB - 1
• Adder p digits wide
• Concatenate g or g 1

10
Rounding Scheme Continued

• Three cases based on MSDs of C0 and C1
• No leading zeros, no corrective left shift
• Leading zeros, possible corrective left shift
• Zero followed by all nines
• Logically, select one among the following
• C0 , C1
• C0 1 g, C0 1 g 1
• C1 1 g, C1 1 g 1
• Zero, largest finite number, infinity

11
Exception Detection Handling

• Invalid operation
• sNaN (pass significand of sNaN)
• 0 x 8 (produce qNaN with significand 0)
• Overflow (and Inexact)
• IEIP SLA gt Emax
• Increase SLA until all LZs removed
• Underflow (and possibly Inexact)
• IEIP SLA lt Emin
• Decrease SLA until 0, then shift right
• Inexact

12
(No Transcript)
13
Implementation Highlights

• Leverage operands' LZCs
• SC, SLA, and IESIP
• Handle NaNs with minimal overhead
• No dataflow modification
• Coerce multiplicand or multiplier to 1
• Support gradual underflow
• No dataflow modification
• Simply extend number of iterations
• Simple, control-based rounding scheme

14
RTL Model and Verification

• Verilog model for both fixed-point and
  floating-point multiplier designs
• All rounding modes, NaNs, exceptions
• Over 500,000 random directed testcases
• IBM decNumber based
• IBM Haifa's FPgen (IEEE754R compliance)
• IBM dectest
• Validated pre- and post-synthesis

15
Synthesis Results

• 64-bit (16 digit) operands, DPD encoded
• LSI Logic's gflxp 0.11um CMOS, 55ps FO4
• Synopsys Design Compiler
• Results
• Fixed-point 119,653 um2 14.72 FO4s
• Floating-point 237,607 um2 15.45 FO4s
• Critical path
• Fixed-point 42 compressor (accumulator)
• Floating-point 128-bit barrel shifer

16
Applicability to Parallel Designs

• IE and IP shift generation
• Rounding scheme
• NaN handling
• Exception detection and handling
• On-the-fly sticky bit generation... NO

17
Sequential vs. Parallel

• Sequential
• Less area
• Potentially better cycle time
• Parallel
• Less latency
• Higher throughput

18
Summary

• Extended fixed-point, serial multiplier to
  support floating-point
• Leveraged operands' LZCs
• Developed an efficient rounding scheme
• Verified RTL and gate-level models
• Presented area and delay numbers for fixed- and
  floating-point designs
• Discussed applicability to parallel designs

19
Et voilà!Vive le système décimale!
20

• Backup Slides

21
No Rounding Overflow

• If SIP 2p 1
• MSD 0
• Increment will not cause rounding overflow
• If SIP 2p
• Then we must have string of p 9s
• p 9s is greater than maximum product
• No rounding overflow possible
• Simplifies rounding scheme

22
Decimal Storage Format
