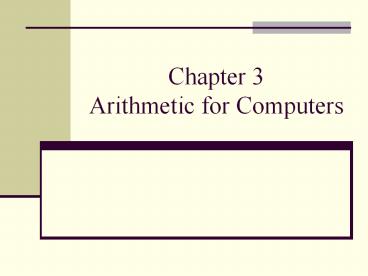

Chapter 3Arithmetic for Computers

2
Taxonomy of Computer Information
Information
Instructions
Addresses
Data
Numeric
Non-numeric
Fixed-point
Floating-point
Character (ASCII)
Boolean
Other
Single- precision
Double- precision
Signed
Unsigned (ordinal)
Sign-magnitude
2s complement
3
Number Format Considerations
  • Type of numbers (integer, fraction, real,
    complex)
  • Range of values
  • between smallest and largest values
  • wider in floating-point formats
  • Precision of values (max. accuracy)
  • usually related to number of bits allocated
  • n bits gt represent 2n values/levels
  • Value/weight of least-significant bit
  • Cost of hardware to store process numbers (some
    formats more difficult to add, multiply/divide,
    etc.)

4
Unsigned Integers
  • Positional number system
  • an-1an-2 . a2a1a0
  • an-1x2n-1 an-2x2n-2 a2x22 a1x21
    a0x20
  • Range (2n -1) 0
  • Carry out of MSB has weight 2n
  • Fixed-point fraction
  • 0.a-1a-2 . a-n a-1x2-1 a-2x2-2
    a-nx2-n

5
Signed Integers
  • Sign-magnitude format (n-bit values)
  • A San-2 . a2a1a0 (S sign bit)
  • Range -(2n-1-1) (2n-1-1)
  • Addition/subtraction difficult (multiply easy)
  • Redundant representations of 0
  • 2s complement format (n-bit values)
  • -A represented by 2n A
  • Range -(2n-1) (2n-1-1)
  • Addition/subtraction easier (multiply harder)
  • Single representation of 0

6
Computing the 2s Complement
  • To compute the 2s complement of A
  • Let A an-1an-2 . a2a1a0
  • 2n - A 2n -1 1 A (2n -1) - A 1
  • 1 1 1 1 1
  • - an-1 an-2 . a2 a1 a0 1
  • -----------------------------------
    --
  • an-1an-2 . a2a1a0 1 (ones
    complement 1)

7
2s Complement Arithmetic
  • Let (2n-1-1) A 0 and (2n-1-1) B 0
  • Case 1 A B
  • (2n-2) (A B) 0
  • Since result lt 2n, there is no carry out of the
    MSB
  • Valid result if (A B) lt 2n-1
  • MSB (sign bit) 0
  • Overflow if (A B) 2n-1
  • MSB (sign bit) 1 if result 2n-1
  • Carry into MSB

8
2s Complement Arithmetic
  • Case 2 A - B
  • Compute by adding A (-B)
  • 2s complement A (2n - B)
  • -2n-1 lt result lt 2n-1 (no overflow possible)
  • If A B 2n (A - B) 2n
  • Weight of adder carry output 2n
  • Discard carry (2n), keeping (A-B), which is 0
  • If A lt B 2n (A - B) lt 2n
  • Adder carry output 0
  • Result is 2n - (B - A)
  • 2s complement representation of -(B-A)

9
2s Complement Arithmetic
  • Case 3 -A - B
  • Compute by adding (-A) (-B)
  • 2s complement (2n - A) (2n - B) 2n 2n -
    (A B)
  • Discard carry (2n), making result 2n - (A B)
  • 2s complement representation of -(A
    B)
  • 0 result -2n
  • Overflow if -(A B) lt -2n-1
  • MSB (sign bit) 0 if 2n - (A B) lt 2n-1
  • no carry into MSB

10
Relational Operators
  • Compute A-B test ALU flags to compare A vs. B
  • ZF result zero OF 2s complement
    overflow
  • SF sign bit of result CF adder carry
    output

Signed Unsigned
A B ZF 1 ZF 1
A ltgt B ZF 0 ZF 0
A B (SF ? OF) 0 CF 1 (no borrow)
A gt B (SF ? OF) ZF 0 CF ? ZF 1
A B (SF ? OF) ZF 1 CF ? ZF 0
A lt B (SF ? OF) 1 CF 0 (borrow)
11
MIPS Overflow Detection
  • An exception (interrupt) occurs when overflow
    detected for add,addi,sub
  • Control jumps to predefined address for exception
  • Interrupted address is saved for possible
    resumption
  • Details based on software system / language
  • example flight control vs. homework assignment
  • Don't always want to detect overflow new MIPS
    instructions addu, addiu, subu note addiu
    still sign-extends! note sltu, sltiu for
    unsigned comparisons

12
Designing the Arithmetic Logic Unit (ALU)
  • Provide arithmetic and logical functions as
    needed by the instruction set
  • Consider tradeoffs of area vs. performance
  • (Material from Appendix B)

13
Different Implementations
  • Not easy to decide the best way to build
    something
  • Don't want too many inputs to a single gate (fan
    in)
  • Dont want to have to go through too many gates
    (delay)
  • For our purposes, ease of comprehension is
    important
  • Let's look at a 1-bit ALU for addition
  • How could we build a 1-bit ALU for add, and, and
    or?
  • How could we build a 32-bit ALU?

cout a b a cin b cin sum a xor b xor cin
14
Building a 32 bit ALU
15
What about subtraction (a b) ?
  • Two's complement approach just negate b and add.

16
Adding a NOR function
  • Can also choose to invert a. How do we get a
    NOR b ?

O
p
e
r
a
t
i
o
n
A
i
n
v
e
r
t
B
i
n
v
e
r
t
C
a
r
r
y
I
n
a
0
0
1
1
R
e
s
u
l
t
b
0
2

1
C
a
r
r
y
O
u
t
17
Tailoring the ALU to the MIPS
  • Need to support the set-on-less-than instruction
    (slt)
  • remember slt is an arithmetic instruction
  • produces a 1 if rs lt rt and 0 otherwise
  • use subtraction (a-b) lt 0 implies a lt b
  • Need to support test for equality (beq t5, t6,
    t7)
  • use subtraction (a-b) 0 implies a b

18
Supporting slt
A
i
n
v
e
r
t
0
1
S
e
t
O
v
e
r
f
l
o
w
O
v
e
r
f
l
o
w
d
e
t
e
c
t
i
o
n
all other bits
Use this ALU for most significant bit
19
Supporting slt
B
i
n
v
e
r
t
A
i
n
v
e
r
t
0
R
e
s
u
l
t
2
0
.
.
.
.
.
.
.
.
.
C
a
r
r
y
I
n
R
e
s
u
l
t
3
1
S
e
t
b
3
1
s
0
O
v
e
r
f
l
o
w
20
Test for equality
  • Notice control lines0000 and0001 or0010
    add0110 subtract0111 slt1100 NOR
  • Note zero is a 1 when the result is zero!

21
Conclusion
  • We can build an ALU to support the MIPS
    instruction set
  • key idea use multiplexor to select the output
    we want
  • we can efficiently perform subtraction using
    twos complement
  • we can replicate a 1-bit ALU to produce a 32-bit
    ALU
  • Important points about hardware
  • all of the gates are always working
  • the speed of a gate is affected by the number of
    inputs to the gate
  • the speed of a circuit is affected by the number
    of gates in series (on the critical path or
    the deepest level of logic)
  • Our primary focus comprehension, however,
  • Clever changes to organization can improve
    performance (similar to using better algorithms
    in software)
  • We saw this in multiplication, lets look at
    addition now

22
Problem ripple carry adder is slow
  • Is a 32-bit ALU as fast as a 1-bit ALU?
  • Is there more than one way to do addition?
  • two extremes ripple carry and sum-of-products
  • Can you see the ripple? How could you get rid of
    it?
  • c1 b0c0 a0c0 a0b0
  • c2 b1c1 a1c1 a1b1 c2
  • c3 b2c2 a2c2 a2b2 c3
  • c4 b3c3 a3c3 a3b3 c4 Not feasible!
    Why?

23
One-bit Full-Adder Circuit
ci
FAi
XOR
sumi
ai
XOR
AND
bi
AND
OR
Ci1
24
32-bit Ripple-Carry Adder
c0 a0 b0
sum0
FA0
sum1
FA1
a1 b1
sum2
FA2
a2 b2
sum31
FA31
a31 b31
25
How Fast is Ripple-Carry Adder?
  • Longest delay path (critical path) runs from cin
    to sum31.
  • Suppose delay of full-adder is 100ps.
  • Critical path delay 3,200ps
  • Clock rate cannot be higher than 1012/3,200
    312MHz.
  • Must use more efficient ways to handle carry.

26
Fast Adders
  • In general, any output of a 32-bit adder can be
    evaluated as a logic expression in terms of all
    65 inputs.
  • Levels of logic in the circuit can be reduced to
    log2N for N-bit adder. Ripple-carry has N levels.
  • More gates are needed, about log2N times that of
    ripple-carry design.
  • Fastest design is known as carry lookahead adder.

27
N-bit Adder Design Options
Type of adder Time complexity (delay) Space complexity (size)
Ripple-carry O(N) O(N)
Carry-lookahead O(log2N) O(N log2N)
Carry-skip O(vN) O(N)
Carry-select O(vN) O(N)
Reference J. L. Hennessy and D. A. Patterson,
Computer Architecture A Quantitative Approach,
Second Edition, San Francisco, California, 1990.
28
Carry-lookahead adder
  • An approach in-between our two extremes
  • Motivation
  • If we didn't know the value of carry-in, what
    could we do?
  • When would we always generate a carry? gi aibi
  • When would we propagate the carry? pi ai
    bi
  • Did we get rid of the ripple? c1 g0 p0c0
  • c2 g1 p1c1 c2 g1 p1 g0 p1p0c0
  • c3 g2 p2c2 c3
  • c4 g3 p3c3 c4
  • Feasible! Why?

29
Use principle to build bigger adders
  • Cant build a 16 bit adder this way... (too big)
  • Could use ripple carry of 4-bit CLA adders
  • Better use the CLA principle again!

30
Carry-Select Adder
sum0-sum15
a16-a31
16-bit ripple carry adder
0
b16-b31
0
sum16-sum31
Multiplexer
a16-a31
16-bit ripple carry adder
1
b16-b31
This is known as carry-select adder
1
31
ALU Summary
  • We can build an ALU to support MIPS addition
  • Our focus is on comprehension, not performance
  • Real processors use more sophisticated techniques
    for arithmetic
  • Where performance is not critical, hardware
    description languages allow designers to
    completely automate the creation of hardware!

32
Multiplication
  • More complicated than addition
  • accomplished via shifting and addition
  • More time and more area
  • Let's look at 3 versions based on a gradeschool
    algorithm 0010 (multiplicand) __x_101
    1 (multiplier)
  • Negative numbers convert and multiply
  • there are better techniques, we wont look at
    them

33
Multiplication Implementation
Datapath
Control
34
Final Version
  • Multiplier starts in right half of product

What goes here?
35
Multiplying Signed Numbers withBoothes
Algorithm
  • Consider A x B where A and B are signed integers
    (2s complemented format)
  • Decompose B into the sum B1 B2 Bn
  • A x B A x (B1 B2 Bn)
  • (A x B1) (A x B2) (A x Bn)
  • Let each Bi be a single string of 1s embedded in
    0s
  • 00111100
  • Example
  • 0110010011100 0110000000000
  • 0000010000000
  • 0000000011100

36
Boothes Algorithm
  • Scanning from right to left, bit number u is the
    first 1 bit of the string and bit v is the first
    0 left of the string
  • v u
  • Bi 0 0 1 1 0 0
  • 0 0 1 1 1 1
    (2v 1)
  • - 0 0 0 0 1 1 (2u 1)
  • (2v 1) - (2u 1)
  • 2v 2u

37
Boothes Algorithm
  • Decomposing B
  • A x B A x (B1 B2 )
  • A x (2v1 2u1) (2v2 2u2)
  • (A x 2v1) (A x 2u1) (A x
    2v2) (A x 2u2)
  • A x B can be computed by adding and subtracted
    shifted values of A
  • Scan bits right to left, shifting A once per bit
  • When the bit string changes from 0 to 1, subtract
    shifted A from the current product P (A x 2u)
  • When the bit string changes from 1 to 0, add
    shifted A to the current product P (A x 2v)

38
Floating Point Numbers
  • We need a way to represent a wide range of
    numbers
  • numbers with fractions, e.g., 3.1416
  • large number
  • 976,000,000,000,000 9.76 1014
  • small number
  • 0.0000000000000976 9.76 10-14
  • Representation
  • sign, exponent, significand
  • (1)sign significand 2exponent
  • more bits for significand gives more accuracy
  • more bits for exponent increases range

39
Scientific Notation
  • Scientific notation
  • 0.525105 5.25104 52.5103
  • 5.25 104 is in normalized scientific notation.
  • position of decimal point fixed
  • leading digit non-zero
  • Binary numbers
  • 5.25 101.01 1.010122
  • Binary point
  • multiplication by 2 moves the point to the left
  • division by 2 moves the point to the right
  • Known as floating point format.

40
Binary to Decimal Conversion
Binary (-1)S (1.b1b2b3b4) 2E
Decimal (-1)S (1 b12-1 b22-2 b32-3
b42-4) 2E
Example -1.1100 2-2 (binary) - (1 2-1
2-2) 2-2 - (1 0.5 0.25)/4
- 1.75/4 - 0.4375 (decimal)
41
IEEE Std. 754 Floating-Point Format
Single-Precision
S E 8-bit Exponent F 23-bit
Fraction
bits 0-22
bits 23-30
bit 31
Double-Precision
S E 11-bit Exponent F 52-bit
Fraction
bits 0-19
bits 20-30
bit 31
Continuation of 52-bit Fraction

bits 0-31
42
IEEE 754 floating-point standard
  • Represented value (1)sign (1F) 2exponent
    bias
  • Exponent is biased (excess-K format) to make
    sorting easier
  • bias of 127 for single precision and 1023 for
    double precision
  • E values in 1 .. 254 (0 and 255
    reserved)
  • Range 2-126 to 2127 (1038 to 1038)
  • Significand in sign-magnitude, normalized form
  • Significand (1 F) 1. b-1b-1b-1b-23
  • Suppress storage of leading 1
  • Overflow Exponent requiring more than 8 bits.
    Number can be positive or negative.
  • Underflow Fraction requiring more than 23 bits.
    Number can be positive or negative.

43
IEEE 754 floating-point standard
  • Example
  • Decimal -5.75 - ( 4 1 ½ ¼ )
  • Binary -101.11 -1.0111 x 22
  • Floating point exponent 129 10000001
  • IEEE single precision 11000000101110000000000000
    0000000

44
Examples
Biased exponent (0-255), bias 127 (01111111) to
be subtracted
1.1010001 210100 0 10010011
10100010000000000000000 1.6328125 220
-1.1010001 210100 1 10010011
10100010000000000000000 -1.6328125 220
1.1010001 2-10100 0 01101011
10100010000000000000000 1.6328125 2-20
-1.1010001 2-10100 1 01101011
10100010000000000000000 -1.6328125 2-20
0.5 0.125 0.0078125 0.6328125
45
Numbers in 32-bit Formats
  • Twos complement integers
  • Floating point numbers
  • Ref W. Stallings, Computer Organization and
    Architecture, Sixth Edition, Upper Saddle River,
    NJ Prentice-Hall.

Expressible numbers
-231
231-1
0
Positive underflow
Negative underflow
Negative Overflow
Positive Overflow
Expressible negative numbers
Expressible positive numbers
0
-2-127
2-127
(2 2-23)2127
- (2 2-23)2127
46
IEEE 754 Special Codes
Zero
S 00000000 00000000000000000000000
  • 1.0 2-127
  • Smallest positive number in single-precision IEEE
    754 standard.
  • Interpreted as positive/negative zero.
  • Exponent less than -127 is positive underflow
    (regard as zero).

S 11111111 00000000000000000000000
Infinity
  • 1.0 2128
  • Largest positive number in single-precision IEEE
    754 standard.
  • Interpreted as 8
  • If true exponent 128 and fraction ? 0, then the
    number is greater than 8. It is called not a
    number or NaN (interpret as 8).

47
Addition and Subtraction
  • Addition/subtraction of two floating-point
    numbers
  • Example 2 x 103 Align mantissas
    0.2 x 104
  • 3 x 104
    3 x 104

  • 3.2 x 104
  • General Case
  • m1 x 2e1 m2 x 2e2 (m1 m2 x
    2e2-e1) x 2e1 for e1 gt e2

  • (m1 x 2e1-e2 m2) x 2e2
    for e2 gt e1
  • Shift smaller mantissa right by e1 - e2 bits
    to align the mantissas.

48
Addition/Subtraction Algorithm
  • 0. Zero check
  • - Change the sign of subtrahend
  • - If either operand is 0, the other is the result
  • 1. Significand alignment right shift smaller
    significand until two exponents are identical.
  • 2. Addition add significands and report
    exception if overflow occurs.
  • 3. Normalization
  • - Shift significand bits to normalize.
  • - report overflow or underflow if exponent goes
    out of range.
  • 4. Rounding

49
FP Add/Subtract (PH Text Figs. 3.16/17)
50
Example
  • Subtraction 0.5ten- 0.4375ten
  • Step 0 Floating point numbers to be added
  • 1.000two2-1 and -1.110two2-2
  • Step 1 Significand of lesser exponent is
    shifted right until exponents match
  • -1.110two2-2 ? - 0.111two2-1
  • Step 2 Add significands, 1.000two (-
    0.111two)
  • Result is 0.001two 2-1

51
Example (Continued)
  • Step 3 Normalize, 1.000two 2-4
  • No overflow/underflow since
  • 127 exponent -126
  • Step 4 Rounding, no change since the sum fits
    in 4 bits.
  • 1.000two 2-4 (10)/16 0.0625ten

52
FP Multiplication Basic Idea
  • (m1 x 2e1) x (m2 x 2e2) (m1 x m2) x
    2e1e2
  • Separate signs
  • Add exponents
  • Multiply significands
  • Normalize, round, check overflow
  • Replace sign

53
FP Multiplication Algorithm
P-H Figure 3.18
54
FP Mult. Illustration
  • Multiply 0.5ten and -0.4375ten (answer -
    0.21875ten) or
  • Multiply 1.000two2-1 and -1.110two2-2
  • Step 1 Add exponents
  • -1 (-2) -3
  • Step 2 Multiply significands
  • 1.000
  • 1.110
  • 0000
  • 1000
  • 1000
  • 1000
  • 1110000 Product is 1.110000

55
FP Mult. Illustration (Cont.)
  • Step 3
  • Normalization If necessary, shift significand
    right and increment exponent.
  • Normalized product is 1.110000 2-3
  • Check overflow/underflow 127 exponent -126
  • Step 4 Rounding 1.110 2-3
  • Step 5 Sign Operands have opposite signs,
  • Product is -1.110 2-3
  • Decimal value - (10.50.25)/8 - 0.21875ten

56
FP Division Basic Idea
  • Separate sign.
  • Check for zeros and infinity.
  • Subtract exponents.
  • Divide significands.
  • Normalize/overflow/underflow.
  • Rounding.
  • Replace sign.

57
MIPS Floating Point
  • 32 floating point registers, f0, . . . , f31
  • FP registers used in pairs for double precision
    f0 denotes double precision content of f0,f1
  • Data transfer instructions
  • lwc1 f1, 100(s2) f1?Mems1100
  • swc1 f1, 100(s2) Mems2100?f1
  • Arithmetic instructions (xxxadd, sub, mul, div)
  • xxx.s single precision
  • xxx.d double precision

58
Floating Point Complexities
  • Operations are somewhat more complicated (see
    text)
  • In addition to overflow we can have underflow
  • Accuracy can be a big problem
  • IEEE 754 keeps two extra bits, guard and round
  • four rounding modes
  • positive divided by zero yields infinity
  • zero divide by zero yields not a number
  • other complexities
  • Implementing the standard can be tricky
  • Not using the standard can be even worse
  • see text for description of 80x86 and Pentium bug!

59
Chapter Three Summary
  • Computer arithmetic is constrained by limited
    precision
  • Bit patterns have no inherent meaning but
    standards do exist
  • twos complement
  • IEEE 754 floating point
  • Computer instructions determine meaning of the
    bit patterns
  • Performance and accuracy are important so there
    are many complexities in real machines
  • Algorithm choice is important and may lead to
    hardware optimizations for both space and time
    (e.g., multiplication)
  • You may want to look back (Section 3.10 is great
    reading!)
Write a Comment
User Comments (0)
About PowerShow.com
