Models

1
Models
?
?
?
?
?
?
?
?
?
?
?
?

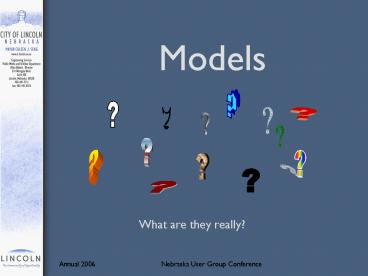

• What are they really?

2
definition

• mod.el (model), n.
• b) a preliminary representation of something,
  serving as the plan from which the final, usually
  larger, object is to be constructed.
• - Websters Dictionary

3
definition

• When you draw, or place elements, in a
  MicroStation DGN file, you are creating a model.
  A model can be either 2D or 3D, and is stored as
  a discrete object within the DGN file. Each DGN
  file, therefore, contains one or more models,
  either 2D or 3D. It may be helpful to think of a
  DGN file as a box that can contain both 3D and 2D
  objects models any of which you can view
  individually.
• - MicroStation Help file

4
definition
Models are the basic container for all elements
in any design file - Shawn Foster
5
Models

• Models can be compared to Excel
• All data resides in one or more spread sheets
  within the spreadsheet

6
(No Transcript)
7
File Specific Settings
8
Model Specific Settings
9
Model dialog

• Models dialog located from the Files gt Model
  pull-down or from the Primary Tools bar.

10
Design Model

• May or may not use Seed file
• Can be 2D or 3D
• Set Annotation Scale
• Enable Cell placement
• Create a View Group

11
Sheet Model

• May or may not use Seed file
• Can be 2D or 3D
• Set Annotation Scale
• Set Sheet Layout
• Enable Cell placement
• Create a View Group

12
Configuration Variables new to V8

• MS_DESIGNMODELSEED
• Name of the design file containing seed model for
  new design models
• MS_DESIGNMODELSEEDNAME
• Name of seed model for new design models
• MS_SHEETMODELSEED
• Name of design file containing seed model for new
  sheet models
• MS_SHEETMODELSEEDNAME
• Name of seed model for new sheet models
• MS_DWGSHEETMODELSEED
• Name of design file containing seed models for
  new sheet models in DWG files
• MS_DWGSHEETMODELSEEDNAME
• Name of seed model for new sheet models in DWG
  files

13
So What are Models?

• DGN files
• Reference files
• CEL libraries
• Level DGNLIB
• Text Style DGNLIB
• Dimension DGNLIB
• Anything you want in MicroStation V8

14
QUESTION/ANSWER
15
COMMENTS/SUGGESTIONS
