Distributed Systems

1

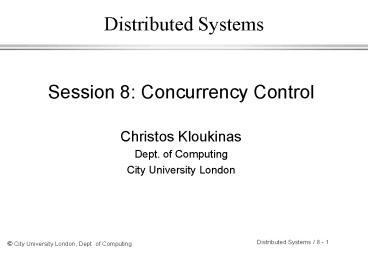

Distributed Systems

• Session 8 Concurrency Control
• Christos Kloukinas
• Dept. of Computing
• City University London

2
Last session

• 1 Location Transparency
• Not a good idea to hard code location information
  in components--gt Migration difficult
• 2 Naming
• Associating external names to references
• 3 Trading
• looking up servers by what services they offer

3
0.1 Naming

• 1 Naming Service Examples
• e.g NFS, X.500, DNS
• 2 Common Characteristics
• External names, hierarchies, contexts,
  persistence of bindings, resolve and bind
  operations.
• 3 CORBA Naming Service
• interface NamingContext
• 4 Limitations- not always the case that we know
  names

4
0.2. Java Example Client Finding Objects

• ORB ORB.init(args,null)
• 1. org.omg.CORBA.Object objRef
  org.omg.CORBA.resolve_initial_references
  ("NameService")
• CosNaming.NamingContext root
  CosNaming.NamingContextHelper.narrow(objRef)
• 2. CosNaming.NameComponent name
• new NameComponent(UEFA,ORG),
• new NameComponent(England,Country),
• new NameComponent(Premier,League),
• new NameComponent(Arsenal,Club)
• 3. Team tTeamHelper.narrow(root.resolve(name))
• 4. t.print()

Transparently get the naming service
Casting
5
0.3 Trading

• Characteristics
• Need a trader (mediator), Quality of service,
  language to express quality of service.
• Quality of service can be expressed statically
  (e.g. privacy, precision) or dynamically (e.g
  performance)
• Service matching and service shopping
• Example Video on Demand
• OMG/CORBA Trading Service

6
Session 8 - Outline

• 1 Motivation
• 2 Concurrency Control Techniques
• 3 CORBA Concurrency Control Service
• 4 Summary

7
1 Motivation

• How can multiple components in a distributed
  system use a shared component concurrently
  without violating the integrity of the component?
• This question is of fundamental importance as
  there are only very few distributed systems where
  all components are only used by a single
  component at a time.

8
1 Motivation (ctd.)

• Resources maintained concurrently may be hardware
  components (e.g. a printer), operating system
  resources (e.g. files or sockets), databases
  (e.g. the bank accounts kept by different banks)
  or CORBA objects.
• For some types of accesses, resources may have to
  be accessed in mutual exclusion
• It does not make sense to have print jobs of
  different users being printed in an interleaved
  way
• Only one user should be editing a file at a time,
  otherwise the changes made by other users would
  be overwritten if the last user saves his or her
  file
• integrity of databases or CORBA objects may be
  lost through concurrent updates.
• Hence, the need arises to restrict the concurrent
  access of multiple components to a shared
  resource in a sensible way.

9
1 Motivation (ctd.)

• Concurrent access and updates of resources which
  maintain state information may lead to
• lost updates
• inconsistent analysis
• Motivating example for lost updates
• Cash withdrawal from ATM and concurrent
• Credit of cheque
• Motivating example for inconsistent analysis
• Funds transfer between accounts of one customer
• Sum of account balances (Report for Inland
  Revenue)

10
1 Motivating Examples

• class Account
• protected float balance
• public float get_balance() return balance
• void debit(float amount)
• float newbalance-amount
• balancenew
• void credit(float amount)
• float newbalanceamount
• balancenew

The object stores the balance in the instance
variable balance. The object can return the
current balance through operation
get_balance().
The debit() operation subtracts the amount
passed as a parameter from the balance and the
credit() operation adds the amount passed as a
parameter.
11
1 Lost Updates
Balance of account anAcc at t0 is 75
Customer_at_ATM
Clerk_at_Counter
t0
anAcc.debit(50) new25 balance25
t1
anAcc.credit(50) new125 balance125
t2
t3
t4
t5
t6
Time WRITER
WRITER
12
1 Inconsistent Analysis
Balances at t0 Acc1 7500, Acc2 0
Funds transfer
Inland Revenue Report
t0
Acc1.debit(7500) Acc1.new0
Acc1.balance0 Acc2.credit(7500)
Acc2.new7500 Acc2.balance7500
t1
float sum0 sumAcc2.get_bal() //
sum0 sumAcc1.get_bal() // sum0
t2
t3
t4
t5
t6
t7
Time WRITER
READER
13
2 Concurrency Control Techniques

• 1 Assessment Criteria
• 2 Pessimistic Concurrency Control
• e.g. Two Phase Locking (2PL)
• 3 Optimistic Concurrency Control
• 4 Comparison

14
Concurrency Control Techniques

• Ensures integrity of shared resource amidst
  concurrent access
• e.g in database, ensures users from editing same
  record at the same time
• concerned with serialising transactions, ensuring
  safe execution
• resolving conflicts and deadlocks
• ensuring fairness among concurrent processes
• restoring component integrity

15
2.1 Assessment Criteria

• Serialisability Concurrent threads are
  serialisable, if they can be executed one after
  another and have the same effect on shared
  resources. It can be proven that serialisable
  threads do not lead to lost updates and
  inconsistent analysis.
• Deadlock freedom Concurrency control techniques
  that use locking may force threads to wait for
  other threads to release a lock before they can
  access a resource. This may lead to situations
  where the wait-for relationship is cyclic and
  threads are deadlocked.
• Fairness refers to the fact whether all threads
  have the same chances to get access to resources.
• Complexity On the other hand to compute
  precisely those and only those schedules that are
  serialisable may be very complex and we are
  interested in the complexity that a concurrency
  control schedule has in order to estimate its
  performance overhead.
• Concurrency!!! We are also interested in the
  degree of concurrency that a control scheme
  allows threads to perform. It is obviously
  undesirable to restrict schedules that do not
  cause serialisability problems.

16
Concurrency Control Techniques Families

• Pessimistic
• Assumes that collisions are likely to occur.
  Locks are used.
• Changes are consistent and safe
• - Is not scalable
• Optimistic
• The idea is that you accept the fact that
  collisions occur infrequently, and instead of
  trying to prevent them you simply choose to
  detect them and then resolve the collision when
  it does occur.
• Uses timestamps, and actions can be rolled back

17
2.2 Two Phase Locking (2PL)

• The most popular concurrency control technique.
  Used in
• RDBMSs (Oracle, Ingres, Sybase, DB/2, etc.)
• ODBMSs (O2, ObjectStore, Versant, etc.)
• Transaction Monitors (CICS, etc)
• The principal component that implements 2PL is a
  lock manager from which concurrent processes or
  threads acquire locks on every shared resource
  they access.
• The lock manager investigates the request and
  compares it with the locks that were already
  granted on the resource .
• If the requested lock does not conflict with an
  already granted lock, the lock manager will grant
  the lock and note that the requester is now using
  the resource.

18
Terminology

• Locks and Locksets
• Locking
• Lock Compatibility
• Locking Conflict
• Deadlocks
• Waiting graph
• Locking granularity
• Hierarchical Locking
• Locking transparency

19
2.2 Locks

• A lock is a token that indicates that a process
  accesses a resource in a particular mode.
• Minimal lock modes read and write.
• Locks are used to indicate to concurrent
  processes or threads the way in which a resource
  is used.
• The lock manager, therefore, maintains a set of
  locks for each resource I.e. associates locksets
  with every shared object

20
2.2 Locking

• Processes acquire locks before they access
  shared resources and release locks afterwards.
• 2PL Processes do not acquire locks once they
  have released a lock.
• Typical 2PL locking profile of a process

Number of locks held
Time
21
2.2 Locking

• 2PL is based on the assumption that processes or
  threads always acquire locks before they access a
  shared resource and that they release a lock if
  they do not need the resource anymore.
• In 2PL, processes do not acquire locks once they
  have released a lock.
• This means that threads operate in cycles where
  there is a lock acquisition phase and a lock
  release phase in each cycle.
• 2PL has its name due to these two phases.

22
2.2 Lock Compatibility

• The lock manager grants locks to requesting
  processes or threads on the basis of already
  granted locks and their compatibility with the
  requested lock.
• The very core of any pessimistic concurrency
  control technique that is based on locking is the
  definition of a lock compatibility matrix. It
  defines the different lock modes and the
  compatibility between them.
• Minimal lock compatibility matrix

23
2.2 Locking Conflicts

• Locking conflict When access cannot be granted
  due to incompatibility between requested lock and
  previously-granted lock
• On the occasion of a locking conflict,
• Requester cannot use the resource until the
  conflicting lock has been released.
• There are two approaches to handle locking
  conflicts.
• The requesting process can be forced to wait
  until the conflicting locks are released. This
  may, however, be too restrictive since the
  process or thread may well do other computations
  in between.
• Alert the process or thread that the lock cannot
  be granted. It can then continue with other
  processing until a point in time when it
  definitely needs to get access to the resource.
• Several 2PL implementations provide two locking
  operations, a blocking and a non-blocking one, so
  the requester can decide.

24
2.2 Example (Avoiding Lost Updates)
Balance of account anAcc at t0 is 75
Customer_at_ATM
Clerk_at_Counter
anAcc.debit(50) anAcc.lock(write)
new75-5025 balance25 anAcc.unlock(write)
t0
anAcc.credit(50) anAcc.lock(write)
new255075 balance75 anAcc.unlock(write)
t1
t2
t3
t4
t5
t6
Time
25
2.2 Example (Avoiding Lost Updates)

• Before the account objects are changed, the debit
  and credit operations request a lock on the
  account object from the lock manager.
• Then the lock manager detects a write/write
  locking conflict and forces the second process to
  wait until the first process has released its
  lock. Then the second process reads the
  up-to-date value of the balance of the account
  and modifies it without loosing the update of the
  first process.

26
2.2 Deadlocks

• Recall that lock manager may force processes or
  threads to wait for other processes to release
  locks.
• This solves problem of lost update and
  inconsistent analysis.
• Processes may request locks for more than one
  object
• Situations may arise where two or more processes
  or threads are mutually waiting for each other to
  release their locks..
• These situations are called deadlocks and
• Very undesirable as they block threads and
  prevent them from finishing their jobs.
• Hence 2PL is NOT deadlock-free.

27
Waiting Graph
p4
p2
p1
p3
p9
p6
p5
p8
p7
In this process waiting graph, the four processes
P1, P2,P3,P7 are in a deadlock
28
2.2.1 Deadlock Detection and Resolution

• Deadlocks are resolved by lock managers.
• Manager maintains up-to-date representation of
  the waiting graph.
• Manager records every locking conflict by
  inserting a graph edge.
• Also when a conflict is resolved by releasing a
  conflicting lock the respective edge has to be
  deleted.
• Manager uses waiting graph to detect deadlocks.
• Resolution Break cycles, i.e. select one process
  or thread that participates in such a cycle and
  abort it.
• Select a node that has maximum incoming or
  outgoing edges to reduce chances of further
  deadlock
• An abortion of a process requires to undo all
  actions that the process has performed and to
  release all locks the process has held!!!

29
2.2 Locking Granularity

• Observation Objects that are accessed
  concurrently are often contained in more coarse
  grained composite objects e.g
• Directories can contain other directories, files
  are contained in directories, files have records
• Relational databases contain a set of tables,
  which contain a set of tuples, which contain
  attributes or
• Distributed composite objects may act as
  containers for component objects, which may again
  contain other objects
• A normal access pattern is to visit all or a
  large subset of the objects that are contained.
• Concurrency control manager can save effort by
  exploiting containment hierarchies.

30
2.2.1 Locking Granularity

• Two phase locking is applicable to resources of
  any granularity.
• It works for CORBA objects as well as for files
  and directories or even complete databases.
• However, the degree of concurrency that is
  achieved with 2PL depends on the granularity that
  is used for locking.
• A high degree of concurrency is achieved with
  small locking granules.
• The disadvantage of choosing a small locking
  granularity is that a huge number of locks have
  to be acquired if bigger granules have to be
  locked.
• Trade-off Degree of concurrency Vs locking
  overhead.
• If we decrease the granularity we can process
  more processes concurrently but have to be
  prepared to spend higher costs for the management
  of locks.
• The dilemma can be resolved using an
  optimisation, which is hierarchical locking.

31
2.2.2 Containment Hierarchy
Bank
Bank
G2
Gn
G1
Group of Branches
B1
B2
Bn
Branches
Containment hierarchy of account objects
Accounts
32
2.3 Hierarchical Locking

• Allows locking of all objects contained in a
  composite object (container).
• BUT also allows a process to indicate, at
  container level, the sub-resources that it is
  intending to use in a particular mode.
• The hierarchical locking schemes therefore
  introduce intention locks, such as intention read
  and intention write locks.
• I.e intention locks are acquired for a composite
  object before a process requests a real lock for
  an object that is contained in the composite
  object.
• Intention locks signal to those processes that
  wish to lock entire composite object that some
  other processes currently has locks for objects
  contained in composite object

33
2.3.1 Hierarchical Locking

• Intention Read Indicate that some process has or
  is about to acquire read lock on the objects
  inside a composite object
• Intention Write indicate that some process has
  or is about to acquire write locks on object in
  composite object.
• Processes that want to lock a certain resource
  would then acquire intention locks on the
  container of that resource and all its
  containers.
• The lock compatibility matrix is defined in a way
  that a locking conflict will arise if a container
  object is already locked in either read or write
  mode.

34
2.3.2 Hierarchical Locking

• NB Intention read and intention write are
  compatible because they do not actually
  correspond to any locks.
• Other modes
• IR lock is compatible with R lock because
  accessing object for reading does not change
  values
• IR lock is incompatible with W lock because it
  is not possible to modify every element of the
  composite object while some other process process
  is reading the state of an object of the
  composite
• etc etc
• Hence the advantage of hierarchical locking is
  that it
• enables different lock granularities to be used
  at the same time
• Overhead is that for every individual object
  intention locks have to be used on every
  composite object in which the object is
  contained. (may be contained in more than one
  containers)

35
2.4 Transparency of Locking

• The last question that we have to discuss is WHO
  is acquiring the locks, i.e. who invokes the lock
  operation for a resource. The options are
• the concurrency control infrastructure, such as
  the concurrency control manager of a database
  management system
• the implementation of components or
• the clients of the components.
• The first option is very much desirable as then
  concurrency control would be transparent to the
  application programmers of both the component and
  its clients.
• Unfortunately this is only possible on limited
  occasions (in a database system) because the
  concurrency control manager would have to manage
  all resources and it would have to be informed
  about every single resource access.
• The last option is very undesirable and it is in
  fact always avoidable. Hence distributed
  components should be designed in a way that
  concurrency control is hidden within their
  implementation and not exposed at their interface
  and is transparent to designers of CLIENTS

36
2.4 Optimistic Concurrency Control

• In general, the complexity of two phase locking
  is linear in the number of the accessed
  resources. With hierarchical locking it is even
  slightly more complex as also containers of
  resources have to be locked in intentional mode.
• This overhead, however, is unreasonable if the
  probability of a locking conflict is very
  limited.
• Given the motivating examples we discussed
  earlier, it is quite unlikely that you withdraw
  cash from an ATM in that very millisecond when a
  clerk credits a cheque.
• This is where optimistic concurrency control
  comes in.
• It follows a laissez-faire approach and works as
  a watchdog that detects conflicts only when they
  really happen.

37
2.3 Optimistic Concurrency Control (ctd.)

• Every thread or process works on its private
  logical copy of the set of shared resources.
• While a process or thread accesses resources, the
  concurrency control manager keeps a log of them.
• Timestamps are required
• At a certain point in time, the access patterns
  are validated against conflicts with concurrent
  processes or threads.
• If no conflicts occurred the changes done can be
  made known to the global set of resources.
• If conflicts occurred the process has to discard
  its logical copy and start over again on an
  up-to-date copy of the resources.

38
Phases

• 1. Read
• Process/transaction executes reading values
  ,writing to a private copy
• 2. Validation
• when process completes, manager checks whether
  process could have possibly conflicted with any
  other concurrent process. If there is a
  possibility, the process aborts, and restarts.
• 3. Write
• If there is no possibility of conflict, the
  transactions commits.
• If there are few conflicts,
• validation can be done efficiently, and leads to
  better performance than other concurrency control
  methods. Unfortunately, if there are many
  conflicts, the cost of repeatedly restarting
  operation, hurts performance significantly

39
2.3 Validation Prerequisites

• As a pre-requisite for optimistic concurrency
  control it is required to separate the overall
  sequence of operations a process performs into
  distinguishable units. A validation of the access
  pattern of a unit is then performed during a
  validation phase at the end of each unit.
• For each unit the following information has to be
  gathered
• Starting time of the unit st(U).
• Time stamp for start of validation TS(U).
• Ending time of unit E(U).
• Read and write sets RS(U) and WS(U). (set of
  resources U has accessed in read and write mode)
• Needs precise time information!!!
• Requires synchronisation of the local clocks!!!
  (of resources CORBA objects)

40
2.3 Validation Set

• The validation of a unit has to be done against
  all concurrent units that have already been
  successfully validated. We, therefore denote the
  set of those units as the validation set VU(u).
• VU(u) is formally defined as
• VU(u)x st(u)ltE(x) and x has been validated
• i.e VU(u) contains units x that were active
  concurrently with u but have been validated
  before it

41
2.3 Conflict Detection

• During the validation phase, the concurrency
  control manager has to look for two types of
  conflicts read/write and write/write conflicts.
• A read/write conflict occurred during the course
  of a unit u iff
• ??u ?? VU(u) WS(u) ? RS(u) ??????
• ?RS(u) ? WS(u) ????
• A write/write conflict occurred during the course
  of a unit u iff
• ??u ? VU(u) WS(u) ? WS(u) ????
• In both cases the unit cannot be completed but
  has to be undone.

--u has written a resource that this other unit
U has read and vice versa
--u has modified a resource that this other unit
u has modified as well
42
Optimistic Conc. Control Example (1/3)

• Assume that you have the following optimistic
  units
• Unit start time end time read set write set
• 1 1 5 1,3,5
  2,4
• 2 3 7 2,3,5
  6,4
• 3 5 9 2,3,5
  7,8
• 4 10 15 7,3,5
  7,8
• What is the validation set (VU) of each one of
  them?
• Which ones have a conflict (read/write or
  write/write) and where exactly does the conflict
  appear?
• Which of the transactions in the table above will
  get validated?

43
Optimistic Conc. Control Example (2/3)

• VU(1)
• Why? Because when it finishes, no other unit has
  finished yet.
• So, unit 1 gets validated immediately.
• VU(2) 1
• Why? Because the end time of unit 1 (5) is
  greater than the starting time of unit 2 (3) and
  unit 1 has been validated.
• Unit 2 has a read/write conflict with unit 1 (in
  resource 2) and a write/write with unit 1 (in
  resource 4).

44
Optimistic Conc. Control Example (3/3)

• VU(3)
• Why? Because only unit 2 has an end time greater
  than the starting time of unit 3 but unit 2 has
  not been validated (so its ignored).
• Therefore, unit 3 gets validated immediately.
• VU(4)
• Why? Because no unit has an end time greater than
  the starting time of unit 4.
• Thus, unit 4 will be validated as well.

45
2.4 Comparison

• Both, pessimistic and optimistic techniques,
• guarantee serialisability of processes
• impose a serious complexity in that they need the
  ability to undo the effect of processes and
  threads.
• Pessimistic techniques cause a
• considerable concurrency control overhead through
  locking and
• they are not deadlock-free
• However, they are sufficiently efficient when
  conflicts are likely.
• A serious advantage of optimistic techniques
• a neglectable overhead when conflicts are
  unlikely
• Furthermore they are deadlock-free.
• However the computation of conflict sets is very,
  very difficult and complex in a distributed
  setting. Moreover the optimistic techniques
  assume the existence of synchronised clocks,
  which are generally not available in a
  distributed setting.

46
2.4 Comparison (ctd.)

• In summary, the disadvantages of optimistic
  concurrency control overwhelm the advantages and
  in most distributed systems concurrency is
  controlled using pessimistic techniques.

47
3 CORBA Concurrency Control Service
Application Objects
CORBAfacilities
Object Request Broker
CORBAservices
Concurrency Control
48
3 Lock Compatibility

• The Concurrency Control service supports
  hierarchical locking, as many CORBA objects take
  the role of container objects.
• As a further optimisation the service defines a
  lock type for upgrade locks.
• Upgrade locks are read locks that are not
  compatible to themselves. Upgrade locks are used
  in occasions when the requester knows that it
  only needs a read lock to start with but later
  will have to acquire a write lock on that
  resource as well.
• If two processes are in this situation, they
  would run into a deadlock if they used only read
  locks. With upgrade locks the deadlock can be
  prevented as the second process trying to acquire
  the upgrade lock will be delayed already.

49
3 Lock Compatibility (ctd.)

• Compatibility matrix

50
3 Locksets

• The central object type defined by the
  Concurrency Control service is the lockset. A
  lockset is associated to a resource.
• With the Concurrency Control service, concurrency
  control has to be managed by the implementation
  of a shared resource. Hence the implementation of
  a resource would usually have a hidden lockset
  attribute.
• Operation implementations included in that
  resource acquire locks before they access or
  modify the resource.

51
3 The IDL Interfaces

• interface LocksetFactory
• LockSet create()
• interface Lockset
• void lock(in lock_mode mode)
• boolean try_lock(in lock_mode mode)
• void unlock(in lock_mode mode)
• void change_mode(in lock_mode held,
• in lock_mode new)

52
3 The IDL Interfaces (ctd.)

• A LocksetFactory facilitates the creation of new
  locksets. The create operation of that interface
  would usually be executed during the construction
  of an object that implements a shared resource.
• The Lockset interface provides operations to
  lock, unlock and upgrade locks. The difference
  between lock and try_lock is that the former is
  blocking while the latter would return control to
  the caller also when the lock has not been
  granted.
• Used at the servant internally, clients dont see
  them

53
4 Summary

• 1 Motivation
• 2 Concurrency Control Techniques
• 3 CORBA Concurrency Control Service

54
4 Summary

• Lost updates and inconsistent analysis.
• Pessimistic vs. optimistic concurrency control
• Pessimistic control
• higher overhead for locking.
• works efficiently in cases where conflicts are
  likely
• Optimistic control
• small overhead when conflicts are unlikely.
• distributed computation of conflict sets
  expensive.
• requires global clock.
• CORBA uses pessimistic two-phase locking.
