Group Communications

1

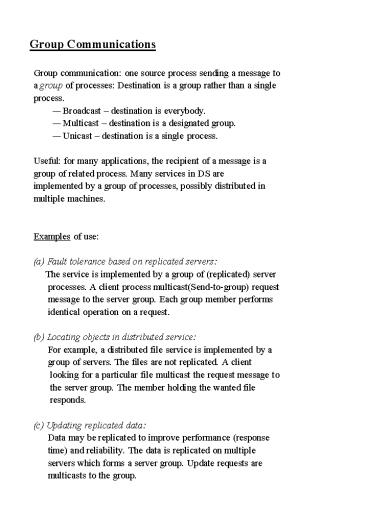

Group Communications

• Group communication one source process sending a
  message to
• a group of processes Destination is a group
  rather than a single
• process.
• Broadcast destination is everybody.
• Multicast destination is a designated
  group.
• Unicast destination is a single
  process.
• Useful for many applications, the recipient of a
  message is a
• group of related process. Many services in DS are

• implemented by a group of processes, possibly
  distributed in
• multiple machines.
• Examples of use
• (a) Fault tolerance based on replicated servers
• The service is implemented by a group of
  (replicated) server
• processes. A client process
  multicast(Send-to-group) request
• message to the server group. Each group
  member performs

2

• (d) Multiple notification
• For example, a group of processes need be
  notified of certain
• event. When the event occurs, a message can
  be multicasted
• to the group. A specific example is in the
  multicasting of
• flight information to a group of display
  processes in an
• airport terminal system.
• A Group is a collection of processes G P1,
  P2, , Pn
• Group management functions
• Forming a group Create-group (out gid
  group-id)
• returns a group
  identifier
• Joining a Group Join-group (in gid group-id)
• makes the caller
  process a member of the
• group gid.
• Leaving a group Leave-group (in gid
  group-id)
• remove the caller
  process from the group.
• Delete a group Delete-group (in gid
  group-id)
• Only authorized
  process (such as the

3

• Implementations (of group)
• Centralised Use a group management
  server.
• All group membership
  function requests are
• handled by the server.
• Server keeps database of all
  active groups
• (membership) in the system.
• Pro implementation ease.
• Con server may be
  reliability and performance
• bottleneck.
• Distributed Each group member keeps
  track of
• membership.
  membership function requests
• are multicast to
  all members.
• Pro reliable
• Cons complexity and
  overheads
• Group Communication Functions
• Send to group

4

• Implementations (of communication functions)
• Unicast A message is sent to each of the
  members of the
• group.
• - Number of message group size
• - Inefficient
• If underlying communication system supports
  broadcast to
• machines (e.g. Ethernet). A broadcast message
  is sent to all
• machines. The group communication facility
  within the
• kernel on respective machine takes in the
  message if there
• are members (of the group) on that machine.
• If underlying communication system supports
  multicast to
• machines. Then the message can be multicasted
  to only those
• machines on which there are members.
• Group Atomicity
• Group atomicity is concerned with whether the
  group is always

5

• No machine failure
• - Message (to individual member) can be lost.
• - Can use a positive acknowledgment protocol
  (i.e., time-
• out retransmission).
• - If network failure (which may make some
  members
• unreachable) is possible, a protocol
  similar to the
• following case can be used.
• Machine failure possible
• - For example, the sending machine (or the
  machine on
• which the group communication server runs)
  crashes.
• Some member will have received the message
  while
• others have not.
• - More complicated protocol. e.g., a protocol
  similar to 2-
• phase commitment protocol.
• - A simple (inefficient) protocol Sender
  sends to each
• member, using positive acknowledgment
  protocol. When
• a receiver receives a message. It
  determines if the
• message has been received before. If not it
  sends the

6

• Not adequate for some application. e.g., two
  client processes
• P1 and P2 are multicasting update requests to a
  server group
• whose member are holding replicated data. Suppose
  P1
• sends M1, then M2 and at about the same time P2
  sends N1
• then N2. Further suppose the group consists of 2
  server
• processes S1 and S2. The message can arrive at
  the
• following order and still satisfy FIFO order
• at S1 M1-gtN1-gtM2-gtN2
• at S2 N1-gtM1-gtM2-gtN2
• The above order may lead to inconsistent result.
• - Consistent order
• The relative order of messages received at each
  member
• process is the same. That is, the order is
  consistent across
• the group.
• - Causal order
• Assume S1 first multicasts m, upon reception of
  m, S3

7

• Total order
• When a group communication mechanism satisfies
  both causal
• order and consistent order, we say the mechanism
  satisfies total
• order. That is,
• The message order at each member process
  preserves causal
• order and that the message ordering is the
  same across the
• entire group.
• Implementation
• Use a logical clock global to the distributed
  system to
• timestamp messages (e.g., Lamports
  timestamps to be
• discussed in a later chapter). The message
  are ordered by the
• entire group.
• Use a centralised server. A multicast message
  is first sent to the
• server. The server assigns sequence number to
  the messages
• (the server is also called a sequencer) and
  send them to all the

8

• - System preserving causal order is also said to
  be a virtually
• synchronous system.
• An Implementation (of causal order)
• Each process keeps a vector clock (V1, V2,
  , Vn).
• Each message carries a vector (logical)
  timestamp
• (V1, V2, , Vn). Where Vk increments
  each time process
• Pk multicast a message.
• When message with timestamp (V1, V2, , Vn)
  from Pj is
• received. The message is accepted if
• Vj Lj 1, and Vi lt Li
• Where (L1, L2, , Ln) is the local vector
  clock. And the
• local clock is set to (V1, V2, , Vn).
• Otherwise, the message is held back until
  the condition is
• satisfied.

9
Design Issues to be Considered

• 1. Design your client-user interface
• 1. Group Information Inquiring
• 2. Joint Group
• 3.
• 4.
• .
• 2. Use TCP or UDP ( I choose TCP)
• 3. Functional Specification
• 3.1 Membership related service
• a) create a group b) Joint group c)
  Leave group d) remove group .
• 3.2. Multicast related services
• a) send message to a group b) message
  ordering (consistant order)
• 3.3 Miscellanceous Services
• a) group information inquiring
• 4. Architectural Relationship between Clients and
  Server(s)

10
Design Issues to be Considered

• 4. Architectural Relationships among processes
  and threads
• each client owns a process and the client
  process may contain several threads
• a thread sending group related
  command
• a thread sending message related
  command.
• the server owns a process that contains
  several threads
• each primitive corresponds to a tread,
  e.g.,
• join group
• create a group
• send a message to a group
• Note that, you can use other ways to organize
  threads. Whatever you do, give reasons in the
  report.
• 5. Client-to-Server Protocol
• If many functions are on server side. How does
  the clients call them?
• 11gname --create a group with the name gname
