Title: Crystallisation Part II


1

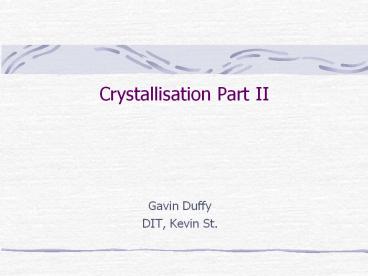

Crystallisation Part II
  • Gavin Duffy
  • DIT, Kevin St.

2
Activity - A crystallisation
  • Read the crystallisation procedure taken from a
    pharmaceutical company
  • In groups of two, discuss the purpose of each
    step in the process
  • Identify where the following events occur
  • Nucleation
  • Supersaturation
  • Crystal growth

3
Crystallisation by Cooling
  • Supersaturation by cooling is the most popular
    method of crystallisation
  • Most components have a strong solubility
    dependence on temperature
  • Normally the crystallisation is achieved by
    following a cooling cycle where the crystalliser
    is cooled at a constant rate for a certain time
  • Typical rates of cooling are slow, 0.1 or 0.2
    C/min
  • Although the rate is slow, the physical
    dimensions of the reactor and jacket capacity
    limit the maximum rate possible
  • The rate may be changed after a certain time
    period (e.g. 2 hours)
  • This creates a linear temperature profile over
    time

4
Typical Crystallisation by Cooling
  • The following linear temperature profile is often
    encountered

5
Optimal Cooling
  • An alternative is to use a non linear temperature
    profile where rate of cooling is slow at the
    start and speeds up as the crystallisation
    progresses
  • The rationale for this is as follows
  • Cool slowly at the start to keep ?C low to
    prevent high rates of nucleation. At this stage
    the rate of mass transfer from liquid to solid
    phase is slow
  • As the surface area of the crystals increase,
    they can adsorb solute at a higher rate so the
    rate of cooling can be increased
  • Supersaturation is in theory a constant over the
    entire duration of the crystallisation
  • This results in a non linear temperature profile

6
Optimal Cooling
  • Non linear temperature profile

7
Cooling and Seeding
  • Addition of seed on its own creates
    crystallisation
  • Therefore, there is no need to force
    crystallisation at the time of seeding as it is
    going to happen anyway
  • Cooling at the same time may create high rates of
    crystallisation and a lot of fines
  • Hold the temperature after seeding, do not cool
  • This is known as an isothermal age
  • Before supersaturation is lost completely, start
    cooling

8
Optimal Cooling with Seeding
Seeding
Isothermal age
MSZ
Concentration
Optimal Cooling
Temperature
9
Anti Solvent Additon
  • Anti Solvent reduces solubility
  • Creates the same result as cooling
  • Can be treated like cooling, i.e. add slowly at
    the start and increase rate of addition with time
  • Mixing is extremely important with anti solvent
    addition
  • We want a homogenous mixture in the crystalliser
    but if mixing is not good, we will get regions of
    high anti solvent conc. and, as a result, high
    rates of crystallisation. Other areas will have
    little anti solvent and low rates of
    crystallisation
  • ?C may vary throughout the crystalliser

10
Anti Solvent Addition
  • Anti solvent concentration and ?C will be highest
    near the anti solvent addition point
  • Add anti solvent near the impeller
  • Add anti solvent at a high velocity use a thin
    pipe to increase velocity and dispersion of anti
    solvent throughout the vessel
  • Add anti solvent at a number of points in the
    vessel

11
Activity Compare two SOPs
  • Have a look at the two SOPs for crystallisation
    of the same API
  • Compare the initial SOP to the one that was
    created to address the prevention of fines
  • Solubility curve for this material

12
Crystallisation without thermal cycle
13
Crystallisation with thermal cycle
14
Mixing
  • In a small lab scale vessel, mixing is good and
    homogeneity is quickly achieved
  • This is not so in a large vessel. It takes a lot
    of mixing or a long time to create a homogenous
    mixture
  • This can create scale up issues where problems
    that were never noticed in the lab become evident
    in the plant
  • Fines prevention is important in crystallisation
    but high rates of agitation dont tend to break
    up particles
  • Low rates of mixing can also allow heavy
    particles to fall out of suspension
  • Dont be conservative with mixing poor mixing
    is bad for crystallisation

15
Measuring crystallisation
  • Crystallisation is a mass transfer of solute from
    the liquid phase to the solid phase
  • As crystallisation progresses
  • The liquid phase concentration of the solute
    decreases
  • The particle size and number of particles
    increase
  • We can track crystallisation by measuring
  • Liquid phase concentration
  • Solid phase particle size

16
Off line V In line measurement
  • Off line involves removal of a sample from the
    vessel at regular intervals and transfer to a lab
    for measurement
  • Issues
  • Is the sample representative?
  • Is it still crystallising?
  • Can corrective action be taken?
  • In line measurements (not temperature) are known
    as Process Analytic Technology or PAT
  • Methods include
  • FBRM
  • React IR
  • PVM
  • USS

17
FBRM
  • Focused Beam Reflectance Measurement
  • Focused laser beam in a rotating lens pointed
    into the crystalliser
  • Focused just outside window
  • Backscatter of light gives particle size
  • Number of particles are counted also
  • CSD data can be produced
  • A large number of particles are counted and
    measured per revolution of laser (thousands)
  • Location of probe important usually in impeller
    region

18
Lasentec Probe
  • A laser beam focused just outside the probe
    window rotates around its circumference
  • The beam intersects the edges of particles and
    light is backscattered until the beam reaches the
    far edge of the particle
  • The distance measured is a chord length
  • It can measure tens of thousands of chords per
    second
  • Materials that do not backscatter such as
    optical-grade glass beads cannot be measured with
    FBRM.

19
FTIR Spectroscopy
  • Fourier Transform Infra Red Spectroscopy
  • Infra red beam pointed into crystalliser
  • Reaction analysis in the liquid phase
  • Can identify and monitor reaction species
  • Needs an air purge to keep the view of the
    process free of solution material
  • Air purge must be CO free as CO absorbs IR

20
PVM and USS
  • Particle Vision and Measurement
  • Video microscope
  • Image analysis of solid phase
  • Ultra Sonic particle Sizing
  • Sample stream taken from vessel and passed
    through the USS on a continuous basis

21
Crystallisation Equipment
  • CSTR is the most common in pharmaceuticals
  • Tank crystalliser non agitated vessel.
    Solution is allowed to cool by natural convection
    without interference
  • Scraped surface crystalliser - a trough about 2
    feet wide with a semi-circular bottom.  The
    outside is jacketed with cooling coils and an
    agitator blade gently passes close to the trough
    wall removing crystals that grow on the vessel
    wall.
  • Vacuum crystalliser hot saturated solution is
    fed to a vessel which is under vacuum. At the
    new pressure, the solution is above boiling
    point. This helps in two ways.1. The solution
    cools to the boiling point.2. The solvent
    boils/evaporates.

22
Activity Process Variables
  • Identify the process variables of Crystallisation
  • What are the main process variables
  • What are the connected process variables
  • Draw a block diagram of a crystallisation system
    with feedback control. Identify
  • Instrument
  • Controlled Device
  • Process
