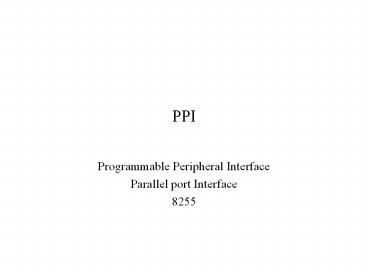

PPI

1
PPI

• Programmable Peripheral Interface
• Parallel port Interface
• 8255

2
8255 PPI
3
Addressing the 8255
A1 A0 00 Port A IN, OUT 8 bits at a time
01 Port B IN, OUT 8 bits at a time 10 Port
C IN, OUT 8 bits at a time 11 Control
Register Write ONLY!
Addressing Example PORTA EQU 0224h Port
A 8255 PORTB EQU 0225h Port B 8255
PORTC EQU 0226h Port C 8255 STAT EQU
0227h Control Port
Another Addressing Example A2A1(CPU)?A1A0(PPI)
PORTA EQU 0224h Port A 8255 PORTB EQU
0226h Port B 8255 PORTC EQU 0228h
Port C 8255 STAT EQU 022ah Control Port
4
Interfacing the 8255
20
8086
AD7 AD6 AD5 AD4 AD3 AD2 AD1 AD0
5
Address and Data Buses
20
8086
Address Latch
20-bit address bus
16
Data Transceiver
16-bit data bus
6
Addressing the 8255
8-bit data bus
20-bit address bus
A1
A0
7
Logic Circuit

• Inputs to the Logic Circuit
• address lines A15 - A2(the I/0 address space is
  216 addresses, and A1 and A0 are used for the
  chips address lines)
• the 8086s IO/M lineHIGH denotes an IO
  instruction (IN, OUT)LOW denotes a memory access
  instruction (i.e., MOV)
• Output of the logic circuit
• a single low value from the 15 inputs (a NAND or
  OR gate) to activate the Chip Select
• The connections for A15-A2 fix the chips address
  in I/O space

8
8088 pins
The 8088 is a 16-bit microprocessor Internal
registers and buses are 16 bits wide
9
Minimum mode

• In minimum mode, the 8086/8088 is the only
  microprocessor in the circuit. It can assume
  that it has control of memory, address, and data
  buses
• In maximum mode, the 8086/8088 is configured for
  multiple microprocessors. The function of pins
  is changed to provide processor-to-processor
  communication

10
Reset

• A single reset line is connected to all chips in
  the system (8088/8086, 8255, 8253, etc.)
• Reset puts the chip in a known state
• Pushing the reset button on your computer
  generally activates RES pin of 8284 that outputs
  a high Reset pulse for a short period of time
• On Reset, the 8088/8086 goes to fixed addresses
  (ROM chips) where boot sequence instructions are
  stored.

11
Basic Description of the 8255

• Its three I/O ports (labeled A,B, and C) are
  programmed in groups of 12 pins
• Group A connections consist of port A (PA7-PA0)
  and the upper half of port C (PC7-PC4)
• Group B consists of port B (PB7-PB0) and the
  lower half of port C(PC3-PC0)
• The 8255 is selected by its CS pin for
  programming, for reading or writing to a port.
• Register selection is accomplished through the A1
  and A0 input pins, which select an internal
  register for programming or operation

12
8255A PPI Parallel I/O Interface
13
8255A PPI Assets and Capabilities

• 24 I/O lines in 3 8-bit port groups A, B, C
• A, B can be 8-bit input or output ports
• C can serve as 2 4-bit input or output ports
• 3 modes of operation
• Mode 0 A, B, C simple input or output level
  sensitive ports
• Mode 1 A, B input or output ports with strobe
  control in C
• Mode 2 A is bidirectional with control/handshake
  in B and C
• A, B can only change 1 byte at a time
• C has individual bit set/reset capability
• Advantage is non-dedicated circuit can change
  portconfiguration with software and no glue
  logic

14
Mode Selection of the 8255

• Ports A, B, and C are used for I/O data.
• The control register is programmed to select the
  operation mode of the three ports A, B, and C.
• Mode 0 simple I/O mode
• Any of the ports A, B, CL and CU can be
  programmed as input or output.
• No control of individual bits (all bits are out
  or all bits are in)
• Mode 1 Ports A and B can be used as input or
  output ports with handshaking.
• Mode 2 Port A can be used as bidirectional I/O
  port with handshaking

15
PPI Interface to CPU
the PPI maps each of its 4 bytes to an address,
but all connect to the same byte of the data bus
if data bus is 1 byte wide, they are consecutive
addresses if the bus is 2 bytes wide, they are
mapped to alternate addresses if the bus is 4
bytes wide, etc.
16
Programming/Controlling the PPI

• 8255A PPI has a write-only control register,
  accessed when PPIs A0A11 (note not A0 and
  A1 of the address bus!)
• When PPI is reset (by an active-high strobe on
  its RESET pin)
• Default is A, B, C are mode 0 input ports
• Control register also used to set/reset port C
  bits individually

17
PPI Programming Example

• Assume address decoder designed for PPI base
  address 0400h
• PPI is connected to D7-D0 on CPU data bus
• mov dh, 04h
• mov dl, 01h
• mov al, 82h
• out dx, al
• What does the code shown above do????

18
Control Word Example

• Assume address decoder designed for PPI base
  address 0400h
• PPI connected to D7-D0 on CPU data bus
• mov dh, 04h Let dh point to base address
• mov dl, 03h Select the control register
• mov al, 82h Place 82h Control Word into al
• out dx, al Write al contents to PPI
• explanation of operating mode set by this code
• D71 Control Word (not a bit set/reset
  command)
• D6D500 A and C7-C4 are Mode 0 (Group A)
• D40 A is Level Sensitive Output
• D30 C7-C4 are Level Sensitive Output
• D20 B and C3-C0 are Mode 0 (Group B)
• D11 B is Level Sensitive Input
• D00 C3-C0 are Level Sensitive Output

19
8255 Connection to Stepper Motor
20
HW2

• Sketch the schematic diagram for a 8086 minimum
  system that drives 8 seven segments through a
  PPI.
• PortA of PPI serves as the driver for the
  segments of a digit. (PA0a, PA1b,..,PA6g,
  PA7.
• PortB of PPI serves as the digit selection
• Develop the SCAN Program.
• Input AL (0 to 7) the digit that should be shown
• This routine is called every 10 ms
• Due Date Sunday 22 Farvardin 1389
