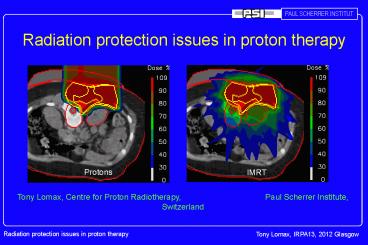

Radiation protection issues in proton therapy

1
Radiation protection issues in proton therapy
Protons
IMRT
Tony Lomax, Centre for Proton Radiotherapy,
Paul Scherrer
Institute, Switzerland
2

• Overview of presentation
• Proton therapy An overview
• Radiation protection issues Staff
• 3. Radiation protection issues The patient
• 4. Summary

3
Proton therapy An overview
Depth dose curves for photons (15MV) and protons
(177MeV)
4
Proton therapy An overview
The Spread-Out-Bragg-Peak
target
5
Proton therapy An overview
Passive scattering in practice
Range-shifter wheel
Scatterer
Target
Patient
6
Proton therapy An overview
Active scanning
Proton pencil beam
Target
Patient
7
Proton therapy An overview
Example actively scanned proton treatments
Meningioma (3 fields)
8

• Overview of presentation
• Proton therapy An overview
• Radiation protection issues Staff
• 3. Radiation protection issues The patient
• 4. Summary

9
Radiation protection issues Staff
A typical proton therapy facility (e.g. PSI)
10
Radiation protection issues Staff
A typical proton therapy facility (e.g. PSI)
11
Radiation protection issues Staff
Radiation protection issues for proton therapy

• Even the highest energy protons (250MeV) stop in
  a few centimeters of concrete
• So the main concern from the radiation
  protection point of view are not protons but
  secondary particles, in particular neutrons.

12
Radiation protection issues Staff
1/cm of primary protons are lost due to
interactions with atomic nuclei, which then
produce secondary particles. E.g.
Primary protons
13
Radiation protection issues Staff
Secondary particle production by protons
E.g. MCNPX Monte Carlo calculations for a passive
scattering nozzle (Hitachi, Houston)
p and p flux
Fontenot et al, Phys. Med. Biol. 53 (2008)
16771688
14
Radiation protection issues Staff
The PSI proton therapy facility and its major
neutron sources
OPTIS2 (Passive)
Gantry 2 (scanning)
Gantry 1 (scanning)
15
Radiation protection issues Staff
Analytically calculated equivalent dose rates
(µSv/h)
OPTIS2 (Passive)
0.3
0.05
2.0
1-2
Gantry 2 (scanning)
0.13
Gantry 1 (scanning)
0.03
0.02
Major sources of neutrons
Teichmann 2004, Internal PSI report
16
Radiation protection issues Staff
Shielding for proton therapy facilities

• Based on analytical calculations (confirmed by
  measurements) dose rates in entrances, control
  rooms and public areas can be reduced below legal
  limits
• For the PSI facility, to reduce extraneous
  neutron dose minimum of 2-4 meters of concrete is
  required
• For a single treatment room, concrete costs
  alone can be of the order of 500000 pounds or
  more

17
Radiation protection issues Staff
How accurate are analytical calculations?
Newhauser et al 2002, Nucl. Inst. Meth. Phys.
Res. 476, 80-84
18

• Overview of presentation
• Proton therapy An overview
• Radiation protection issues Staff
• 3. Radiation protection issues The patient
• 4. Summary

19
Radiation protection issues The patient
Neutron and photon scatter doses for protons and
photons
103
103
102
102
101
101
Neutron equivalent dose (H/mSv/Treatment Gy)
Absorbed dose (D/mGy/Treatment Gy)
100
100
10-1
10-1
Irradiated volume
10-2
10-2
10-3
10-3
0
40
20
60
80
Distance from target (cm)
Adapted from Haelg et al 2012, Submitted to
Medical Physics
20
Radiation protection issues The patient
but dont forget the primary dose
A comparison of non-target integral doses for
IMRT and scanned protons for nine pediatric cases
IMRT
Protons
On average, protons reduced integral dose by a
factor 2
21
Radiation protection issues The patient
Are there potential cost consequences from
reducing integral dose?
With thanks to Hakan Nystrom, Skandion Clinic,
Sweden
22
Radiation protection issues The patient
Are there potential cost consequences from
reducing integral dose?
Effective dose (protons) 4000mSv / 2
2000mSv
Alpha value saving 2000mSv x 100 200000 per
patient!
With thanks to Hakan Nystrom, Skandion clinic,
Sweden
23

Summary

• Due to the Bragg peak characteristics of the
  depth dose curve, proton therapy can deliver
  highly conformal treatments with significantly
  reduced integral dose to the patient.
• Due to the limited range of therapeutic protons
  (lt32 cm in water), challenges for radiation
  protection and shielding are mainly to do with
  secondary neutron production
• Analytical shielding calculations are relatively
  straightforward but tend to overestimate
  transmitted dose rates. MC calculations are more
  accurate . Consequences for shielding costs?
• The significantly reduced integral dose of
  protons may have important radiation protection
  (and cost? ) consequences for the patient,
  particularly pediatrics.

24
Thank you!
