Title: Metrology in medicine


1

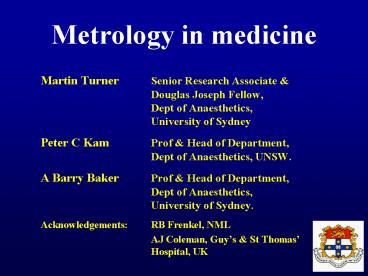

Metrology in medicine
  • Martin Turner Senior Research Associate
    Douglas Joseph Fellow, Dept of
    Anaesthetics, University of Sydney
  • Peter C Kam Prof Head of Department, Dept
    of Anaesthetics, UNSW.
  • A Barry Baker Prof Head of Department, Dept
    of Anaesthetics, University of Sydney.
  • Acknowledgements RB Frenkel, NML
  • AJ Coleman, Guys St Thomas Hospital, UK

2
Measurements in medicine
  • Aid diagnosis
  • absolute values
  • Guide treatment
  • absolute values
  • relative values or changes/trends(e.g. peak flow
    in asthma)

3
Old instruments vs modern
  • Early medical instruments
  • Simple, mechanical
  • Faults were self-evident
  • Modern instruments
  • Black (coloured) box
  • Software-based
  • Digital display
  • Faults lack of calibrationnot readily evident

4
Characteristics of medical measurements
  • High variability(both intra and
    interindividual)
  • Often indirect(e.g. cardiac output)
  • Results often depend strongly on measurement
    technique
  • Often uncertainty ? 10 20 is acceptable

5
Risk
  • Medical measurements are made on sick people
  • most diagnostic therapeutic procedures have
    associated risks
  • a degree of risk associated with measurements is
    acceptable

6
Risk and variability
  • Clinicians are familiar with the combination of
    variability risk
  • Many clinicians
  • assume variability due to lack of calibration is
    swamped by biological variability
  • do not see a need for traceable calibration of
    medical instruments
  • Many medical instruments are not traceably
    calibrated

7
Mitigating factors
  • Diagnoses rarely depend on a single measurement
  • Good clinicians
  • know what results to expect
  • disregard unusual measurements in the face of
    conflicting clinical evidence

8
Laws, regulationsstandards accreditation
9
Therapeutic Goods Authority
  • Falls under the Federal Dept of Health and Aging
  • New medical devices must be licensed by the TGA
  • Test equipment used to assess new equipment is
    required to be traceably calibrated
  • Maintenance of existing medical equipment?

10
Standards
  • AS/NZS 35511996. Technical management programs
    for medical devices.
  • TEST EQUIPMENT Test equipment used shall be
    regularly calibrated to achieve traceability of
    measurement.
  • AS/NZS 3551 is not enforced
  • AS/NZS 3551 is ignored in some hospitals

11
Accreditation
  • The Australian Council on Healthcare Standards
    (ACHS) accredits Hospitals
  • metrology issues are not prominent
  • NATA accredits Pathology Biochem labs (Medical
    Testing Labs)
  • Some professional bodies accredit their labs
    practitioners
  • Quality control of other measurements appears to
    be at the discretion of individual clinicians,
    groups or hospitals

12
Evidence-based medicine
  • EBM is
  • The conscientious, explicit and judicious use of
    current best evidence in making decisions about
    the care of individual patientsBMJ 1996
    312(7023)71-2.
  • Presently there is no evidence that uncalibrated
    medical instruments cause adverse outcomes
    (Wilson et al. Med J Aust 1995163458. Med J
    Aust 1999 170411)
  • Is traceable calibration likely to improve
    medical outcomes?

13
Case study Blood pressure
  • Most commonly measured physiological variable
  • Diagnosis of hypertension depends entirely on BP
    measurements
  • 29 of Australians ?25 yrs have hypertension (NHF)

14
  • Hypertension is an independent risk factor for
    coronary heart disease and cardiovascular
    disease.
  • Cardiovascular diseases caused 40 of all deaths
    in Australia in 1998 (NHF).

15
What is the effect of measurement error on the
diagnosis of hypertension?
  • What is the range of measurement error?
  • What is the sensitivity to those errors?
  • AS EN 1060.1 2002 Non-invasive sphygmomanometers
    General requirements requires error lt 3 mm Hg

16
UK Sphyg survey (J Hum Hyperten 15587 2001)
949 Hg sphygs 513 aneroid sphygs error gt 3 mm
Hg 16 error gt 5 mm Hg 9.3 error gt
10 mm Hg 3.7 1 in 54 UK
GP practices had sphygs calibrated
regularly
17
Distribution of diastolic BP
Source Joffres MR et al. Can Med Assoc J
146(11)1997 - 2005 1992 Data acquired 1986-1990
N 20582 data include treated subjects (10 of
total).
18
2
10
diastolic
systolic
1
10
subjects with pressure gt x
0
10
80
100
120
140
160

Blood pressure (mm Hg)
19
  • Prob. that patient has true BP gt x p(x)
  • Classification threshold xo
  • Measurement error ?x
  • Probability of classifying a patient
    hypertensive p(xo?x)
  • Change in hypertensives

20
0
-10
-20
-30
Systolic
hypertensive patients missed ()
-40
95 mm Hg
-50
-60
-70
Diastolic
85 mm Hgthreshold
-80
90 mm Hg
-90
-10
-8
-6
-4
-2
0
measurement error (mm Hg)
21
95 mm Hgthreshold
90 mm Hg
Diastolic
85 mm Hg
Systolic
22
Effects of systematic error in BPat xo 95 mm Hg
  • 3 mm Hg of 9 patients called
    hypertensive 4 are not
  • 3 mm Hg half of true hypertensives
    missed
  • 5 mm Hg of 13 patients called
    hypertensive 8 are not
  • 5 mm Hg 2/3 of hypertensives missed

23
Further work
  • Determine the performance of sphygs in Australian
    GP practices
  • Analyse the distribution of BP in Australia
  • Estimate
  • the number of normotensive people treated for
    hypertension
  • the number of untreated hypertensives
  • the number of cardiovascular deaths due to
    inadequate sphygmomanometer calibration

24
Other measurements
  • Temperature
  • IR thermometers
  • bias up to 2.3C
  • 1.5C scatter
  • Spirometry
  • Electronic spirometers
  • Type tested (inadequately?)
  • In use calibration is inadequate

25
Conclusions
  • These examples may represent the tip of the
    medical metrology iceberg in Australia
  • Inadequately calibrated medical instruments are
    an unrecognised cause of preventable medical
    errors
  • Traceable calibration of medical measurement
    systems would
  • Improve the quality of healthcare
  • Reduce long term healthcare costs

26
End
27
Extras
28
Temperature
  • Tympanic IR thermometers are replacing
    Hg-in-glass thermometers
  • Imamura et al. (Tokyo 1998) compared four
    different IR thermometers with tympanic
    thermocouples in vivo.

29
Imamura et al. Acta Anaesthesiol Scand 421222-6
1998.
30
Imamura et al. Acta Anaesthesiol Scand 421222-6
1998.
31
Spirometry
  • Commonly used for diagnosis treatment of asthma
    and COPD
  • 2.2 million asthmatics in Australia
  • 397 asthma deaths in Australia in 2002

32
Hankinson Crapo, Am J Respir Crit Care Med
1995 152696
26
  • ATS standard curves
  • Forced vital capacity (FVC)
  • FEV1
  • Peak flow

1
7
33
Spirometer calibration
  • At manufacture Type-tested against 26 ATS curves
    using servo-driven syringe

34
  • In use
  • volume checks only
  • hand-driven 3 litre syringe

35
  • Servo-driven syringe has no correction for gas
    compression
  • Many hand-driven syringes are not regularly
    calibrated
  • Forced expiratory flow has high harmonic content,
    so static calibration (0 Hz only) is completely
    inadequate.

36
Imamura et al. Acta Anaesthesiol Scand 421222-6
1998.
37
(No Transcript)
38
  • Professional bodies
  • accredit some labs(Thoracic Society of Australia
    New Zealand accredits lung function labs)
  • certify technicians in some fields(Australian
    NZ Soc of Respiratory Science certifies
    Respiratory Function Scientists)
  • produce guidelines

39
BP measurement error
  • 2001 UK GP sphygmomanometers
  • 3.7 had error gt 10 mm Hg
  • 9.3 had error gt 5 mm Hg
  • 16 had error gt 3 mm Hg
  • 1 in 54 UK GP practices had sphygs regularly
    calibrated
  • 1995/9 Australian sphygs (Newcastle)
  • Sphyg maintenance poor
  • J Qual Clin Pract. 19951517-22, 19991995-8
