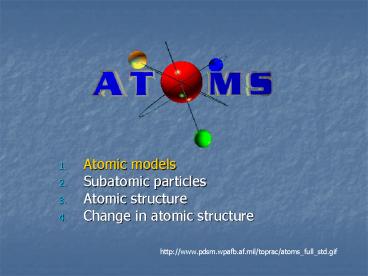

Atomic models

1

1. Atomic models
2. Subatomic particles
3. Atomic structure
4. Change in atomic structure

http//www.pdsm.wpafb.af.mil/toprac/atoms_full_std
.gif
2
Atomic Models

• Models are used to help us visualize something
  that cannot be seen

3
Democritus

• This Greek philosopher is credited with coining
  the term atomos
• This was the term for the smallest possible
  particle of matter

4
J.J. Thomson

• Deflected a beam of particles with magnets
• Determined that particles must have a negative
  charge

5
J.J. Thomson (1897)

• Plum Pudding model
• Electrons are embedded in a positive ball of
  matter
• This creates a neutral atom

6
Rutherford (1911)

• Developed the gold foil experiment

7
Rutherford

• A stream of positive alpha particles were
  directed at foil
• Thomsons model predicted that particles should
  pass through neutral material

8
Rutherford

• Expectations
• Actual results
• Rutherfords model
• http//www.mhhe.com/physsci/chemistry/essentialche
  mistry/flash/ruther14.swf
• http//micro.magnet.fsu.edu/electromag/java/ruther
  ford/

9
Rutherford

• Rare deflections indicated two things
• A positive mass existed in the atom
• The positive center is very small

10
Rutherford

• He determined that
• There is a positively charged nucleus in the
  center of all atoms
• The nucleus is VERY small
• Most of an atom is empty space

11
Bohr

• Used color of light emitted from hydrogen atoms
  to determine the energies of its electron

12
Bohr

• Energy indicates location of electron in the atom
• Low energy electrons are closer to nucleus
• High energy electrons are further from nucleus

13
Bohr (1913)

• Called the orbital model or planetary model

14
Schrodinger (1926)

• Used calculus to determine probability of finding
  an electron within a certain region
• The points in the diagram are all the possible
  locations of one electron

15
Schrodinger

• Two names have been given to this model
• Quantum mechanical model
• Electron cloud model

16
Recap Atomic Models
17
Whats in an Atom?

1. Atomic models
2. Subatomic particles
3. Atomic structure
4. Change in atomic structure

18
Proton (p)

• Has a positive charge
• Defines the atom as a specific element
• Has a mass of 1 amu (atomic mass unit)
• Is located in the nucleus

19
Electron (e-)

• Has a negative charge
• It is located OUTSIDE of the nucleus in the
  electron cloud
• It has mass but it is so small relative to the
  mass of the proton and neutron that it is
  considered to be zero mass

20
Neutron (no)

• Has no charge
• Has a mass of 1 amu (atomic mass unit)
• Is located in the nucleus

21
Recap - Subatomic Particles
Symbol Charge Mass Location
Proton
Electron
Neutron
22
Recap - Subatomic Particles
Symbol Charge Mass Location
Proton p 1 amu nucleus
Electron e- - 0 electron cloud
Neutron no 0 1 amu nucleus
23
Whats in an Atom?

1. Atomic models
2. Subatomic particles
3. Atomic structure
4. Change in atomic structure

24
Atomic Number

• The atomic number of an element is always the
  number of protons found in the atom
• The number of protons defines the element!

25
Atomic Number

• Found at bottom, left of symbol

26
Nuclear Charge

• Nuclear charge the positive charge of the
  nucleus caused by protons
• ie sodium (Na) has a nuclear charge of 11
  because it has 11 protons

27
Atoms are NEUTRAL!

• ALWAYS!
• This means that the number of positive and
  negative charges are equal
• This means that the number of protons and
  electrons are always equal in ANY ATOM

28
Atomic Structure

• Electrons have relatively NO MASS
• All the mass of an atom is in the nucleus
• Each proton has a mass of 1 amu
• Each neutron has a mass of 1 amu
• Summing protons neutrons mass number

29
Mass Spec

• The heavier the atom, the more charge it
  requires..

..to maintain its path to the detector
30
Isotopes

• Isotopes are
• Atoms of the same element (atomic number is the
  same)
• Atoms that have a different number of neutrons
  (mass number is different)

31
Mass Number

• Mass number p no
• It is found in the top, left corner

The number of neutrons can be calculated by
subtracting the atomic from the mass
32
Isotopic Symbols

• Indicates the unique mass for one specific atom
• Also shown by writing hydrogen-3

33
Calculate the number of Neutrons

1. 2311Na
2. 94Be
3. 11950Sn
4. Carbon-13

34
Hydrogen Isotopes
35
Writing Isotopic Symbols

• Write both forms of an isotopic symbol for an
  atom having
• 5 p and 4 no
• 1 p and 1 no
• 8 no and 6 p

36
Average Atomic Mass

• The weighted average of the isotope masses is
  found on the periodic table

37
Average Atomic Mass

• Calculating a weighted average
• Multiply the percent abundance x isotope mass
• Sum all results

10.81 amu
38
47.92 amu
39
Recap atomic structure

• Note number of e- number of p
• Note number of no does not have to equal either
  the number of protons or electrons

What is the atomic mass of this atom?
39 amu
40
Recap Atomic Structure
41
Whats in an Atom?

1. Atomic models
2. Subatomic particles
3. Atomic structure
4. Change in atomic structure

42
Change in number of Neutrons

• Neutrons have a mass of 1 amu
• Mass is added or removed
• mass changes
• This causes the formation of an isotope
• Ex 126C 2no ? 146C

43
Change in number of Electrons

• Atom protons electrons
• This particle is neutral
• Ion protons ? electrons
• This particle is charged

44
Change in number of Electrons

• Electrons have a negative charge
• Adding electrons to an atom results in
• electrons gt protons
• neg. charge gt pos. charge
• Negative ion ANION

45
Change in number of Electrons

• Electrons have a negative charge
• Removing electrons from an atom results in
• protons gt electrons
• pos. charge gt neg. charge
• Positive ion CATION

46
(No Transcript)
47
(No Transcript)
48
Changing the Number of Protons

• Changes
• the
• Element!

49
Changing the Number of Protons

• This is not a chemical change
• This is a nuclear change

50
4 Forces in the Universe
51
Electrostatic Energy

• Opposites attract
• Likes repel

52
Electrostatic Energy
Protons in the nucleus should repel each other
53
The Strong Force

• When protons become close enough, they experience
  the strong force that holds them together

This is the energy that is released from a
nuclear plant or bomb
54
Fission

• The splitting of a large nucleus into 2 midsized
  nuclei
• Produces neutrons that can continue the process
• Critical mass the minimum amount of radioactive
  material required to sustain fission

55
Fusion

• The joining of two nuclei
• Occurs in stars
• Requires extreme heat to start process

56
Alpha Decay

• The loss of an alpha particle occurs when
  electrostatic forces overcome the strong force

42He alpha!
57
Alpha Decay Problems

• When uranium-238 undergoes alpha decay, it
  produces an alpha particle and a new particle
• 238U92 ? 4He2 ?
• 238U92 ? 4He2 234Th90
• Try the next 2 problems
• 239Pu94 ? 4He2 ?
• 241Am95 ? 4He2 ?

235 U 92 and 237 Np 93
58
Beta Decay

• Beta decay creates another proton from a neutron
• This improves the proton/neutron ratio

59
Beta Decay Problems

• 238U92 ? 0e-1 ?
• 238U92 ? 0e-1 238Np93
• Try the next 2 problems
• 239Pu94 ? 0e-1 ?
• 241Am95 ? 0e-1 ?

239Am95 and 241Cm96
60
Half Life

• Half life the time it takes for HALF of a
  sample to decay

61
Half Life

• Half life problems always contain 4 values
• Initial quantity
• Final quantity
• Half life
• Time elapsed
• Always begin a problem with the 2 like values

62
Half Life
A 100 mg sample of cesium-134 has a half-life of
15 yrs. How much of the sample will remain after
45 years?
Half-life Time elapsed Initial quantity Final quantity
15 yrs 45 yrs 100 mg
63
(No Transcript)
64
(No Transcript)
65
(No Transcript)
66
Recap Changing Particles

1. Change in the number of neutrons creates
   isotopes.
2. Change in the number of electrons creates ions.
3. Change in the number of protons creates a new
   element.

67
The World of Particles

• http//images.google.com/imgres?imgurlhttp//teac
  hers.web.cern.ch/teachers/archiv/HST2001/www/The2
  520World2520of2520Particles/The2520World2520of
  2520Particles_files/slide0012_image085.gifimgref
  urlhttp//teachers.web.cern.ch/teachers/archiv/HS
  T2001/www/The2520World2520of2520Particles/The2
  520World2520of2520Particles_files/slide0012.htm
  h337w533sz39hlenstart4tbnidK2P0Ar_7FCh3
  sMtbnh83tbnw132prev/images3Fq3Dweak2Bfor
  ce26gbv3D226svnum3D1026hl3Den

68
Nuclear Particles

• Gluons
• Pions
• Hadrons
• Quarks
• Leptons
• Besons
• Meson
