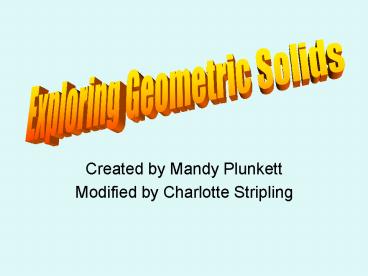

Exploring Geometric Solids

• Created by Mandy Plunkett
• Modified by Charlotte Stripling

2
Plane Figures
3
Sphere
A 3D figure shaped like a ball.
Formed by rotating a circle
4
How can you form a sphere?
5
Cylinder
A 3D figure that looks like a tube with 2
circular bases.
Formed by Rotating a rectangle or square,
Translating a circle
6
How can you form a cylinder?
7
Cone
A 3D figure with a circular base and a point
opposite the base.
Formed by rotating a triangle, stacking similar
circles (smaller and smaller until a point)
8
How can you form a cone?
9
Cube
A rectangular prism with all edges the same
length.
Formed by translating a square (its exact side
length)
10
How can you form a cube?
11
Rectangular Prism
Formed by translating a square or rectangle
A 3d figure that looks like a box.
12
How can you form a rectangular prism?
13
Triangular Prism
A prism whose bases are triangles.
Formed by translating a triangle

14
Hexagonal Prism
Formed by translating a hexagon
15
How can you form a pyramid?

• Stack similar figures smaller and smaller up to
  a point.
• Similar triangles triangular pyramid
• Similar rectangles rectangular pyramid
• Similar squares square pyramid
• Similar pentagons pentagonal pyramid
• Similar hexagons hexagonal pyramid

16
Square Pyramid
Formed by stacking similar squares (smaller and
smaller until a point)
17
Triangular Pyramid
Formed by stacking similar triangles (smaller
and smaller until a point)
18
Hexagonal Pyramid
Formed by stacking similar hexagons (smaller
and smaller until a point)
19
DEFINITIONS

• Cross Section the intersection of a plane and a
  solid.
• Formed by slicing through a 3D figure and looking
  at the inside 2D plane figure.
• Ellipse an oval 2D figure.
• Formed by slicing a 3D figure at an angle to its
  circular base (oblique).

20
What cross-sections can I make from a sphere?

• Circle (any direction)

21
What cross-sections can I make from a cube?

• Square (vertical or horizontal), triangle
  (corners), hexagon (oblique), pentagon (oblique),
  parallelogram (oblique), rectangle (diagonal)

To see all cross sections click on link.
http//www.learner.org/courses/learningmath/geomet
ry/session9/part_c/index.html
http//www.learner.org/courses/learningmath/geomet
ry/session9/part_c/index.html
22
What cross-sections can I make from a cylinder?

• Rectangle (vertical), Circle (horizontal),
  Ellipse (oblique)

23
What cross-sections can I make from a cone?

• Triangle (vertical), Circle (horizontal), Ellipse
  (oblique)

24
What cross-sections can I make from a rectangular
prism?

• Rectangle (vertical or horizontal), Triangle
  (corners)

25
What cross-sections can I make from a square
pyramid?

• Triangle (vertical), Square (horizontal),
  Trapezoid (vertical not through vertex)
