Storage Management and Caching in PAST

1

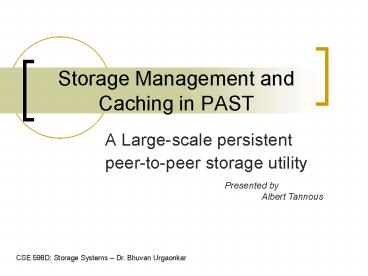

Storage Management and Caching in PAST

• A Large-scale persistent
• peer-to-peer storage utility

Presented by Albert Tannous
CSE 598D Storage Systems Dr. Bhuvan Urgaonkar
2
Introduction to PAST (1)

• P2P systems can be characterized as distributed
  systems in which all nodes have identical
  capabilities and responsibilities and all
  communication is symmetric
• PAST An Internet-based, P2P global storage
  utility, which aims to provide strong
  persistence, high availability, scalability and
  security
• PAST is based on a self-organizing, Internet
  based overlay network of storage nodes that
  cooperatively route file queries, store multiple
  replicas of files, and cache additional copies of
  popular files
• Storage nodes and files are each assigned
  uniformly distributed identifiers

3
Introduction to PAST (2)

• PAST is composed of nodes connected to the
  Internet, where each node is capable of
  initiating and routing client requests to insert
  or retrieve files
• PAST nodes form a self-organizing overlay network
• Inserted files are replicated across multiple
  nodes for availability
• Advantages of PAST
• Exploits the multitude and diversity of nodes in
  the Internet to achieve strong persistence and
  high availability
• No need for physical transport of storage media
  to protect backup and archival data
• No need for explicit mirroring to ensure high
  availability and throughput for shared data

4
Introduction to PAST (3)

• Files stored are associated with a quasi-unique
  fileId that is generated at the time of the
  files insertion into PAST
• Files stored are immutable
• Files can be shared by the owner by distributing
  fileId (and decryption key if necessary)
• Pastry is the routing scheme used to route
  clients requests to proper nodes

5
Introduction to PAST (4)

• A client needs the fileId (and maybe the
  decryption key) to retrieve a file
• PAST does not provide facilities for searching,
  directory lookup, or key distribution.
• PAST is intended as an archival storage and
  content distribution utility, not a
  general-purpose FS

6
PAST Overview (1)

• Any host connected to the Internet can be a PAST
  node, just needs the software
• Set of operations exported to PAST clients
• fileId Insert(name, owner-credentials, k, file)
• file Lookup(fileId)
• Reclaim(fileId, owner-credentials)
• Each PAST node is assigned a 128-bit node
  identifier, called a nodeId
• A set of nodeIds is an excellent candidate for
  storing the replicas of a file, since the nodes
  are likely to be diverse in all aspects

7
PAST Overview (2)

• During an insert operation, PAST stores the file
  on the k PAST nodes whose nodeIds are numerically
  closest to the 128 msb of the files fileId
• k is chosen to meet the availability needs of a
  file, relative to the expected failure rates of
  individual nodes
• PAST is layered on top of Pastry

8
Pastry

• Pastry A P2P request routing and content
  location scheme
• Pastry is efficient, scalable, fault resilient
  and self-organizing
• Pastry routes an associated message towards the
  node whose nodeId is numerically closest to the
  128 msb of the fileId, among all live nodes
• A file can be located unless the k nodes whose
  nodeIds are numerically closest to the 128 msbs
  of the fileId have failed within a recovery period

9
PAST Operations (1)

• Insert Request a fileId is computed as the SHA-1
  hashcode of the files textual name, the clients
  public key, and a random salt. The required
  storage (file size times k) is debited against
  the clients storage quota, and a file
  certificate is issued and signed with the owners
  private key
• The file and the certificate are routed to the
  first node closest to the fileId. The node
  accepts the replica and forwards it to the k-1
  other nodes
• When the k nodes have accepted the replica, the
  client recieves an acknowledgement

10
PAST Operations (2)

• Lookup request Client node sends a request
  message, using the requested fileId as the
  destination. When a node that stores the file
  receives the request, node responds with the
  content and the stored file certificate
• Reclaim request Like an insert request, the
  clients node issues a reclaim certificate, which
  allows the replica storing nodes to verify that
  the files legitimate owner is requesting the
  operation. The storing nodes each issue and
  return a reclaim receipt, which the client node
  verifies for a credit against the users storage
  quota

11
Security

• Each PAST node and each user of the system hold a
  smartcard (read-only clients dont need a card).
  A private/public key pair is associated with each
  card
• Each smartcards public key is signed with the
  smartcard issuers private key for certification
  purposes
• The smartcards ensure the integrity of nodeId and
  fileId assignments, thus preventing an attacker
  from controlling adjacent nodes in the nodeId
  space, or directing file insertions to a specific
  portion of the fileId space.

12
Storage Management (1)

• The goal is to allow high global storage
  utilization and graceful degradation as the
  system approaches its maximal utilization
• Responsibilities of the storage management
• Balance the remaining free storage space among
  nodes in the PAST network as the system-wide
  storage utilization is approaching 100
• Maintain the invariant that copies of each file
  are maintained by the k nodes with nodeIds
  closest to the fileId

13
Storage Management (2)

• 2 ways to resolve the conflicting
  responsibilities
• Replica diversion Allows a node that is not one
  of the k numerically closest nodes to the fileId
  to alternatively store the file, if it is in the
  leaf set of one of those k nodes, to accommodate
  differences in the storage capacity and
  utilization of nodes within a leaf set
• File diversion A file is diverted to a different
  part of the nodeId space by choosing a different
  salt in the generation of its fileId when a
  nodes entire leaf set is reaching capacity. Its
  purpose is to achieve more global load balancing
  across large portions of the nodeId space

14
Causes of Storage Load Imbalance

• If not all the k closest nodes can accommodate a
  replica (insufficient storage), but k nodes exist
  within the leaf sets of the k nodes that can
  accommodate the file
• That imbalance in the available storage among the
  l k nodes in the intersection of the k leaf
  sets can arise for several reasons
• The number of files assigned to each node may
  differ because of statistical variation in the
  assignment of nodeIds and fileIds
• The size distribution of inserted files may have
  high variance and may be heavy tailed.
• The storage capacity of individual PAST nodes
  differs

15
Per-Node Storage

• Assumption The storage capacities of individual
  PAST nodes differ by no more than two orders of
  magnitude at a given time
• PAST controls the distribution of per-node
  storage capacities by comparing the advertised
  storage capacity of a newly joining node with the
  average storage capacity of nodes in its leaf
  set
• If the node is too large, it is asked to split
  and join under multiple nodeId
• If a node is too small, it is rejected
• A node is free to advertise only a fraction of
  its actual disk space for use by PAST. The
  advertised capacity is used as the basis for the
  admission decision

16
Replica Diversion

• Goal Balance the remaining free storage space
  among the nodes in a leaf set
• 3 policies are used
• Acceptance of replicas into a nodes local store
• Selecting a node to store a diverted replica
• Deciding when to divert a file to a different
  part of the nodeId space

17
File Diversion

• Goal Balance the remaining free storage space
  among different portions of the nodeId space in
  PAST
• When a file insert operation fails, a negative
  acknowledgment is returned to the client node
• The client node in turn generates a new fileId
  using a different salt value and retries the
  insert operation
• A client node repeats this process for up to 3
  times. If, after 4 attempts the insert operation
  still fails, the operation is aborted and an
  insert failure is reported to the application

18
Maintaining Replicas

• PAST maintains k copies of each inserted file on
  different nodes within a leaf set
• Neighboring nodes in the nodeId space
  periodically exchange keep-alive messages
• When a new node joins the system or a previously
  failed node gets back on-line, its included and
  another node is dropped from each of the previous
  leaf sets
• A node that becomes one of the k closest nodes
  for certain files has to acquire a replica of
  each file, re-creating replicas that were
  previously held by the failed node
• A node that ceases to be one of the k nodes for
  certain files can discard the copies

19
File Encoding

• Reed-Solomon encoding adding m additional
  checksum blocks to n original data blocks (all of
  equal size) allows recovery from up to m losses
  of data or checksum blocks
• This reduces the storage overhead required to
  tolerate m failures from m to (m n)/n times the
  file size
• By fragmenting a file into a large number of data
  blocks, the storage overhead for availability can
  be made very small
• Storing fragments of a file at separate nodes
  (and thereby striping the file over several
  disks) can also improve bandwidth

20
Caching (1)

• Goal Minimize client access latencies (fetch
  distance), maximize the query throughput and
  balance the query load in the system
• Maintaining replicas lead to availability, query
  load balancing and latency reduction
• A highly popular file may demand many more than k
  replicas in order to sustain its lookup load
  while minimizing client latency and network
  traffic
• If a file is popular among one or more local
  clusters of clients, its advantageous to store a
  copy near each cluster

21
Caching (2)

• PAST nodes use the unused portion of their
  advertised disk space to cache files
• Cached copies can be evicted and discarded at any
  time when a node stores a new primary or
  redirected replica of a file, it evicts one or
  more cached files to make room for the replica
• Cache insertion policy
• A file routed through a node as part of a lookup
  or insert operation is inserted into the local
  disk cache if its size is less than a fraction c
  of the nodes current cache size (the portion of
  the nodes storage not currently used to store
  primary or diverted replicas)
• Cache replacement policy Based on the
  GreedyDual-Size (GD-S)
