Distillation columns in CHEMCAD

1

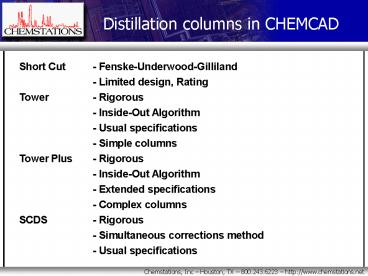

Distillation columns in CHEMCAD
Short Cut - Fenske-Underwood-Gilliland
- Limited design, Rating Tower
- Rigorous -
Inside-Out Algorithm -
Usual specifications -
Simple columns Tower Plus - Rigorous
- Inside-Out Algorithm
- Extended specifications
- Complex columns SCDS - Rigorous
- Simultaneous corrections
method - Usual specifications
2
SHOR column

• Short Cut Method (SHOR)
• Fenske-Underwood-Gilliland method
• One feed and two products
• Design mode Calculates reboiler and condenser
  duties, determines number of theoretical stages,
  finds optimum feed tray location (Fenske,
  Kirkbride)
• Rating mode Calculates reboiler and condenser
  duties, computes fractional recovery of key
  components
• Generally not useful beyond initial column
  estimates constant molar underflow requirement
  is too unrealistic

3
SCDS Column

• Simultaneous Correction Method
• Large number of stages
• Stable with non-linear (non-ideal) thermodynamics
• Run time B (NCOMP)2 NSTAGES
• Mass transfer and tray efficiencies
• Dynamics

4
TOWR column

• Inside-Out Method
• Fast with EOS thermodynamics
• Large number of components, small number of
  stages
• Run time A NCOMP (NSTAGES)2
• No mass transfer or stage efficiencies
• Complex columns
• Dynamics

5
General Recommended Selection
EOS thermodynamics Tower Non-ideal
thermodynamics SCDS Three phase
distillation SCDS Reactive distillation SCDS M
ass transfer SCDS Complex column Tower
Plus Trays gt 100 SCDS Components gt
20 Tower
6
Distillations Models
Degrees of Freedom.. Simple absorber 0 Reboiler
1 Condenser 1 Side exchanger 1 Pumparound 2
Side stripper 1
7
Distillations Models
Typical Specifications
Relatively Safe One material balance
specification (D, B) One heat balance
specification (R/D, V/B) May require
estimates Compositions Temperatures Recoveries
Heat loads Poor Choices Two material balance
specifications Pure stream temperature
8
Distillations Models
Column Estimate Guidelines

• No estimate better than poor estimate
• Avoid pure component temperature
• Avoid azeotrope temperature
• Tray 2, N-1 temperatures for unusual problems
• Use thermodynamic (phase) plots for guidance
• Use profile options for difficult problems
• Use preliminary material balances

9
Distillations Models
Column Convergence Problem Recognition
SCDS Profile oscillations Increasing
errors Many NR steps, decreasing
size Inside-Out Increasing errors Many
Jacobian Inversions
10
Distillations Models
Column Convergence Problem Management

• Review thermo
• Poor specifications
• Specification conflicts?
• Poor estimates?
• High pressure?
• Close boiling? Dry trays? (adjust T profiles)
• Create restart profiles
• Use damping factors
• Converged with poor mass balance? (tighten
  tolerances)
• All else fails? (reduce tray efficiencies)

11
Dehydration of ethanol using normal pentane as
the entrainer
12
Note To find multicomponent azeotropes you can
use CC-Batch
13
binodal plot (fixed temperature)
liquid boiling envelope (fixed P)
14
tie line
15
(No Transcript)
16
Simulation results
17
Design considerations in Azeotropic Distillation
18
(No Transcript)
19
distillation boundary
Distillation boundaries can be crossed but it is
almost always very difficult to take advantage of
it.
20
Distillations Models
VOC Stripping
H(TCE,25C) 650 atm.
T 85 F P 14.7 psia H2O 696,000
lb/hr TCE 69 lb/hr
H(TCE in H2O) 650 atm.
Air
21
Distillations Models
Debutanizer Split Iso and N butanes
Feed C3 83.06 lbmoles/hr iC4 4329.755 nC4
725.09 iC5 62.12 nC7 1286.98
